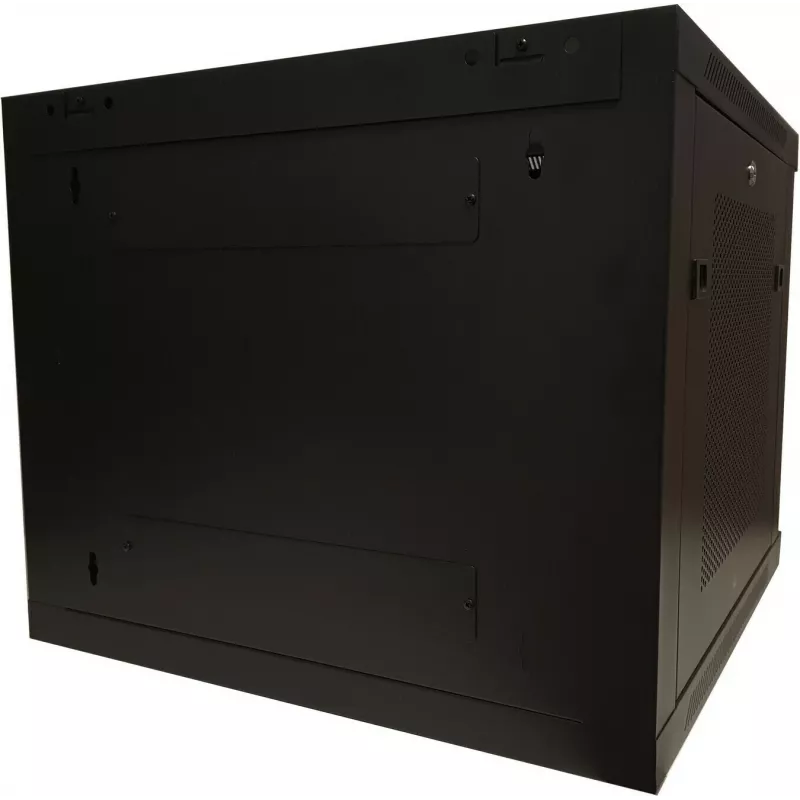

DSIT DS6609ZP Carcasa de servidor para montaje en pared 9U 19" con puerta de cristal y paredes laterales perforadas, 600x600x501 mm, Negro

The DSIT DS6609ZP distinguishes itself from conventional wall-mount enclosures by combining a tempered glass front door with fully perforated, removable side panels. This design not only presents a professional, modern appearance but also maximizes passive airflow, making it an ideal choice for network equipment that requires consistent cooling without the added complexity of active fan systems. Its compact 9U capacity and 600 mm depth accommodate a wide range of standard 19-inch devices, from patch panels and switches to small servers and UPS units.

Highlights

• 9U rack capacity with adjustable front and rear mounting rails for flexible equipment installation.

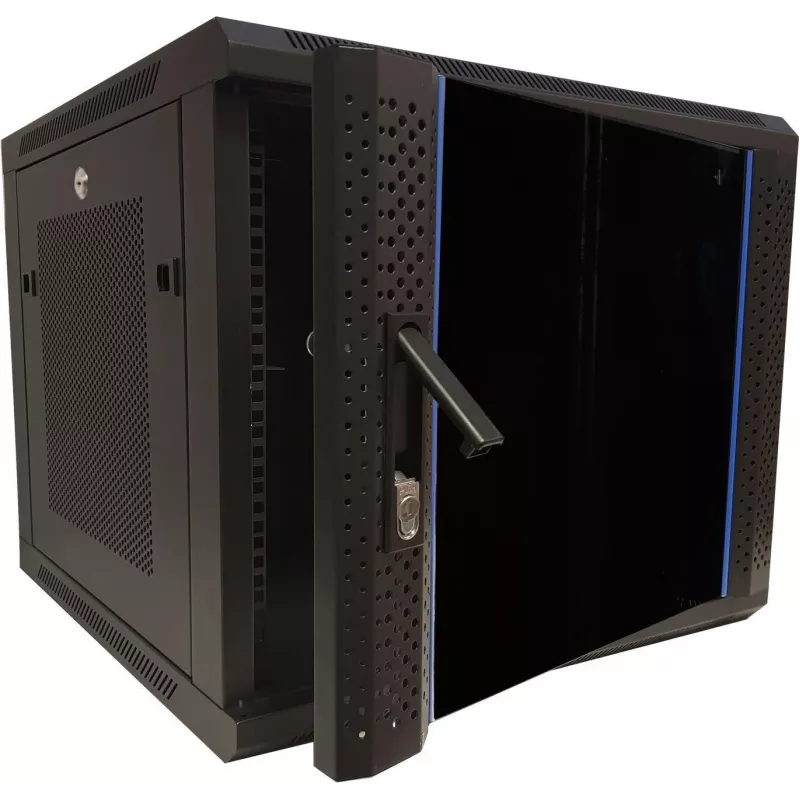

• Lockable tempered glass front door and lockable perforated side panels for security and visibility.
• SPCC cold rolled steel construction with powder-coated finish in black (RAL 9005) for durability.
• Top and bottom cable entry with brush strips to maintain a tidy and protected cabling environment.
• Flat-packed design for efficient shipping and easy on-site assembly.

In daily use

In a busy IT closet or small office, the DS6609ZP proves its worth by keeping equipment organized and accessible. The glass door allows quick visual monitoring of indicator lights without unlocking, while the perforated side panels ensure heat dissipates naturally. The removable side panels simplify installation and maintenance, and the included locks deter unauthorized access. Wall mounting frees up valuable floor space, making this cabinet a practical solution for environments where every square meter counts.

Full specifications

• Rack capacity: 9U
• Rack standard: 19 inch
• Mounting type: Wall mount
• External dimensions (W x D x H): 600 x 600 x 501 mm
• Front door: Tempered glass, lockable
• Side panels: Perforated, removable, lockable
• Material: SPCC cold rolled steel
• Color: Black (RAL 9005)
• Surface finish: Powder coated
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive (perforated panels)
• IP protection class: IP20
• Adjustable mounting rails: Yes (front and rear)
• Assembly: Flat-packed
• Compliance: RoHS, CE

Final note

For those seeking a secure, well-ventilated, and space-efficient wall-mount enclosure, the DSIT DS6609ZP delivers a balanced blend of functionality and aesthetics, backed by solid construction and thoughtful design details.
