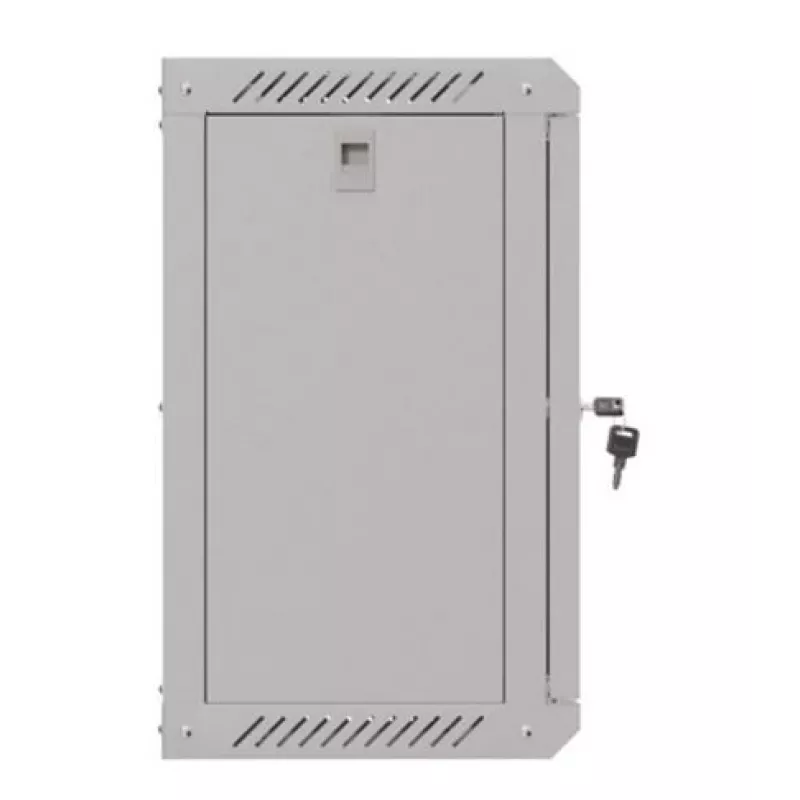

Lanberg WF11-3309-10S armario rack 9U rack de montaje en pared gris

Network administrators and IT technicians outfitting compact server rooms, branch offices, or retail back offices often need a secure, well-ventilated enclosure that doesn't consume floor space. The Lanberg WF11-3309-10S wall-mount rack cabinet answers that need with a 9U, 10-inch form factor and a sleek grey finish that blends into professional environments. Its flat-pack design ships efficiently and assembles quickly, while the tempered glass front door keeps equipment visible yet protected.

Key specifications

• 9U rack capacity, 10-inch width (ANSI/EIA RS-310-D compliant)

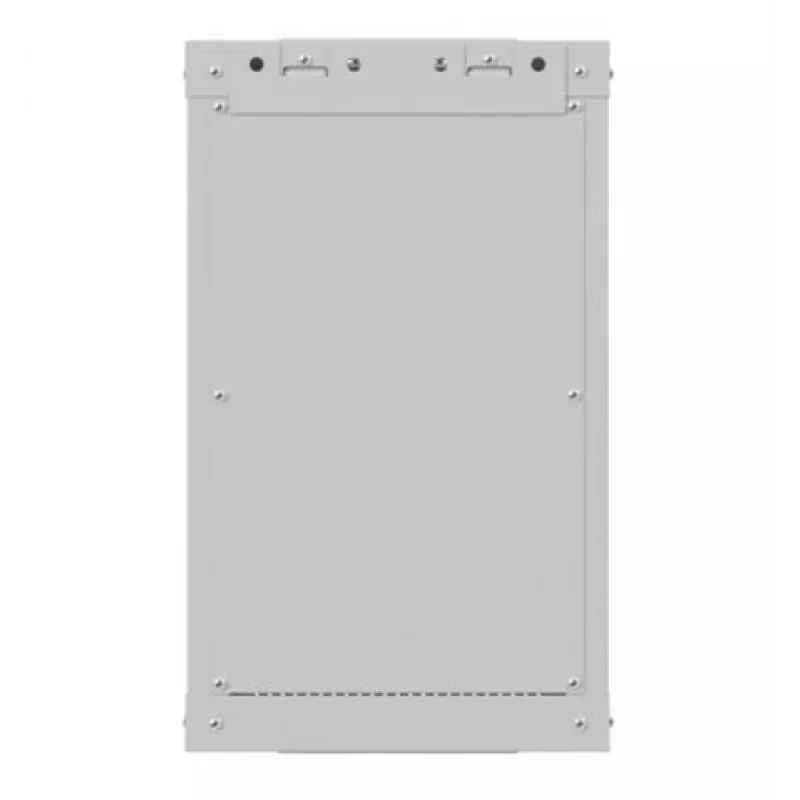

• Wall-mount design with rear mounting strip for simplified installation
• Dimensions: 300 x 300 mm (width x depth), height suitable for 9U
• Grey (RAL 7035) rolled steel construction, 1.2–1.5 mm thickness

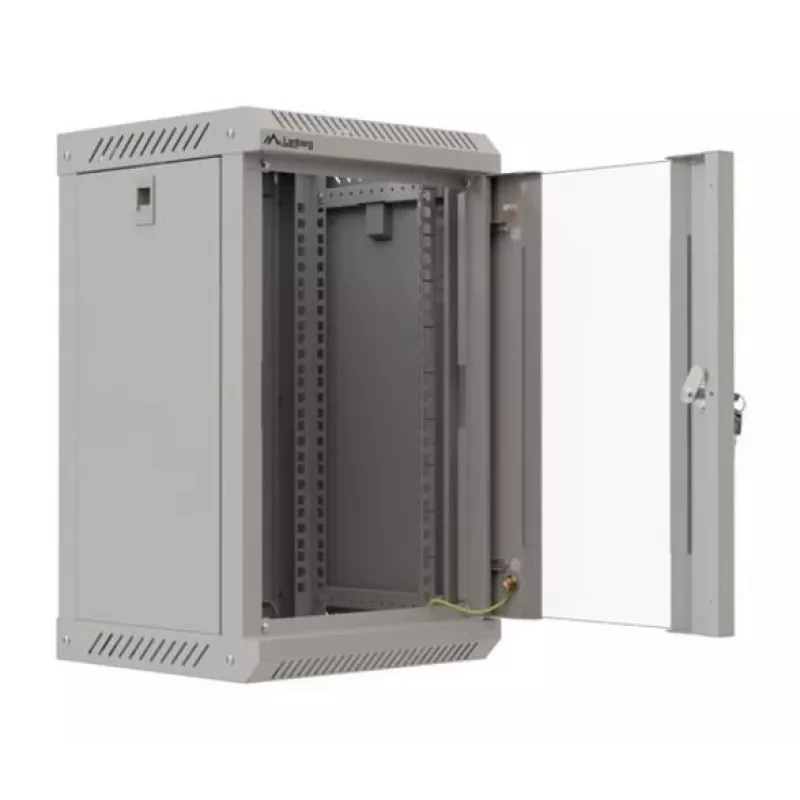

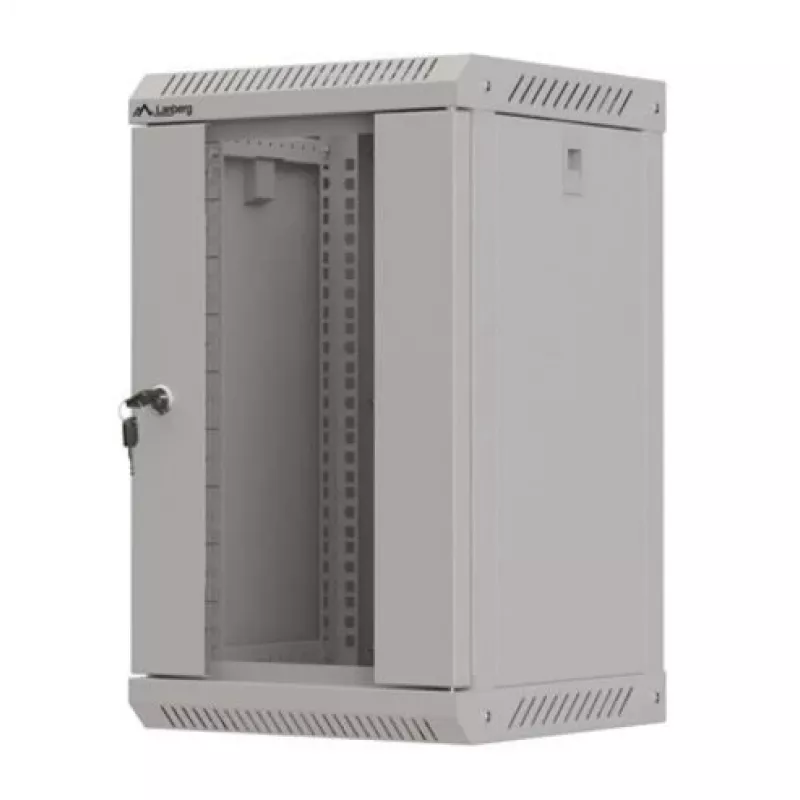

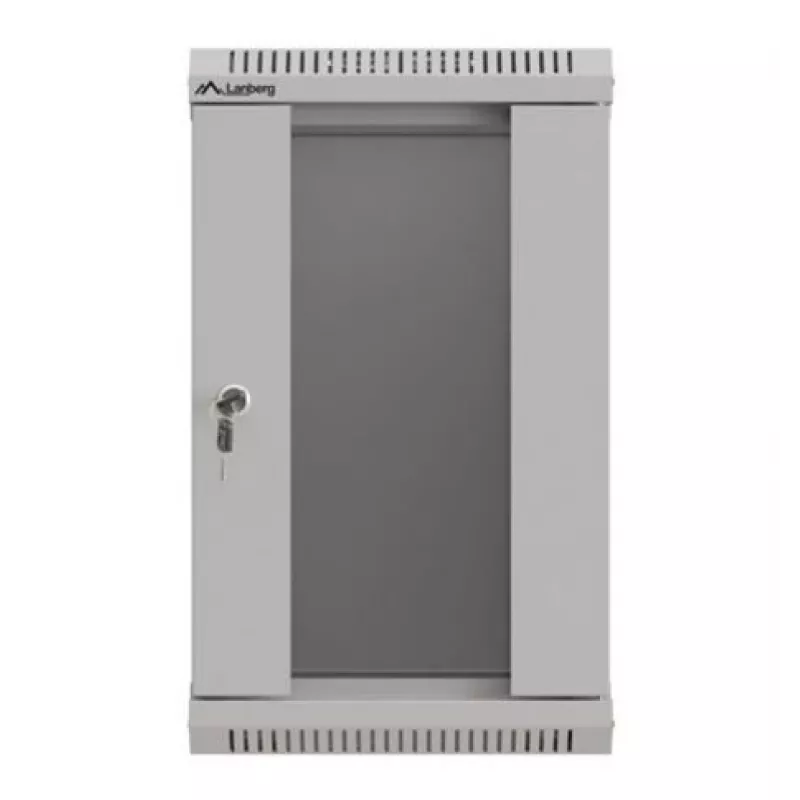

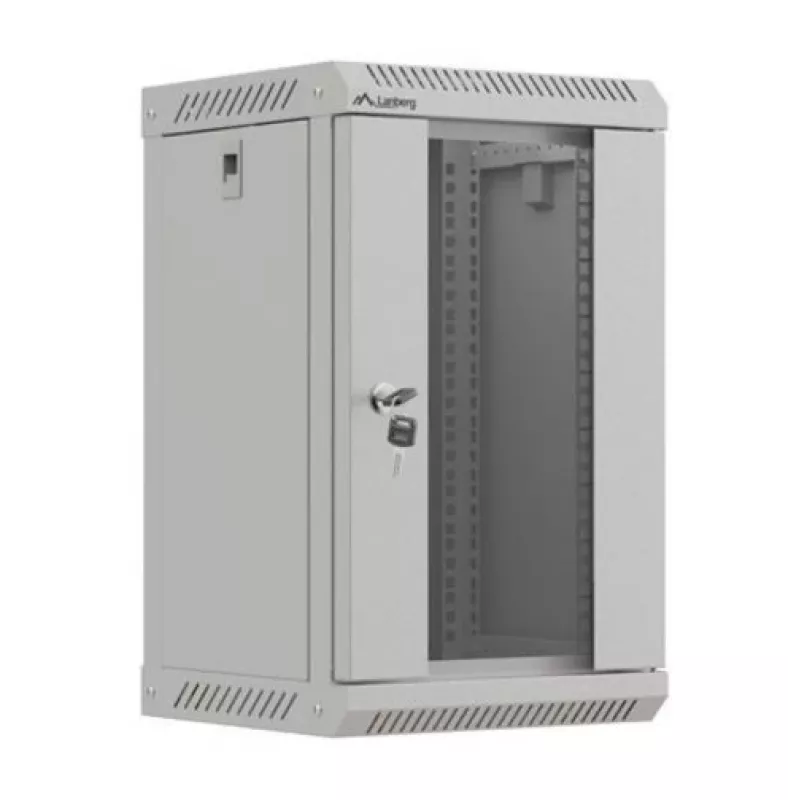

• Tempered glass front door with key lock (2 keys included)

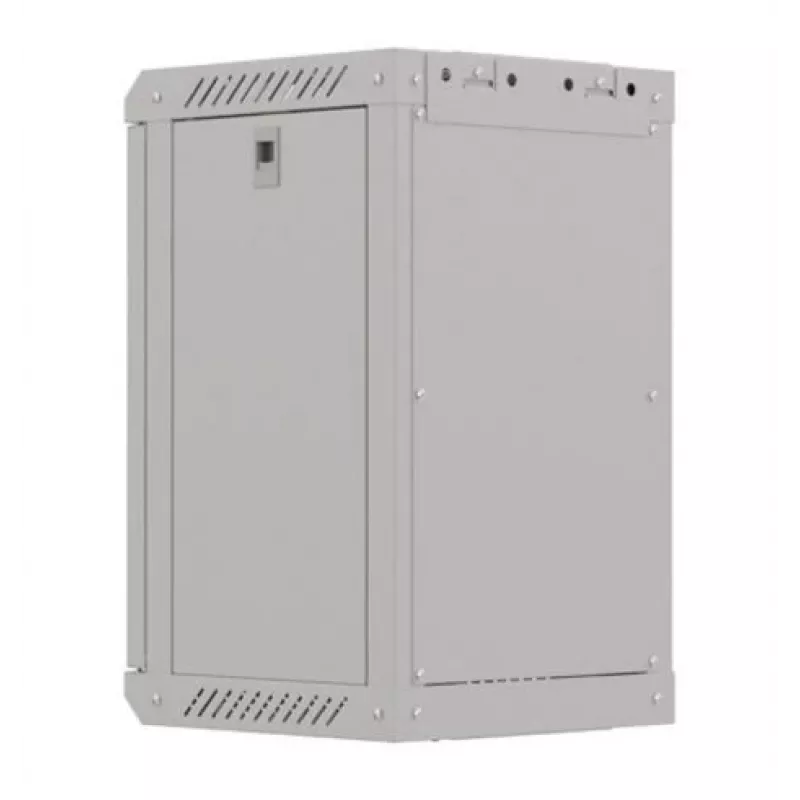

• Removable, lockable side panels (2 keys included)

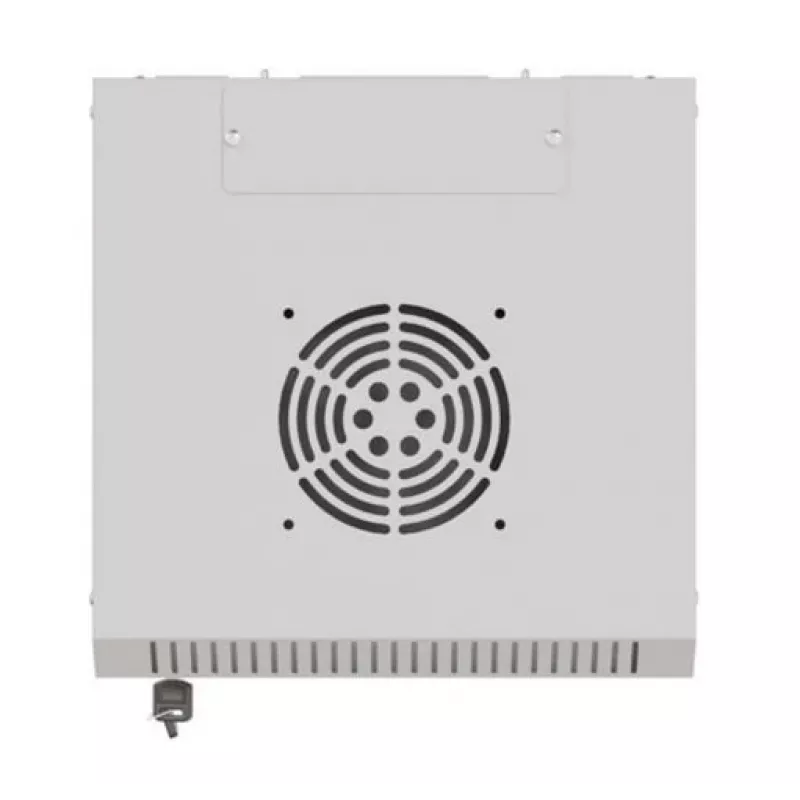

• Passive ventilation with fan-ready design (120 mm fan mount)
• Static load capacity: 60 kg
• IP20 protection rating

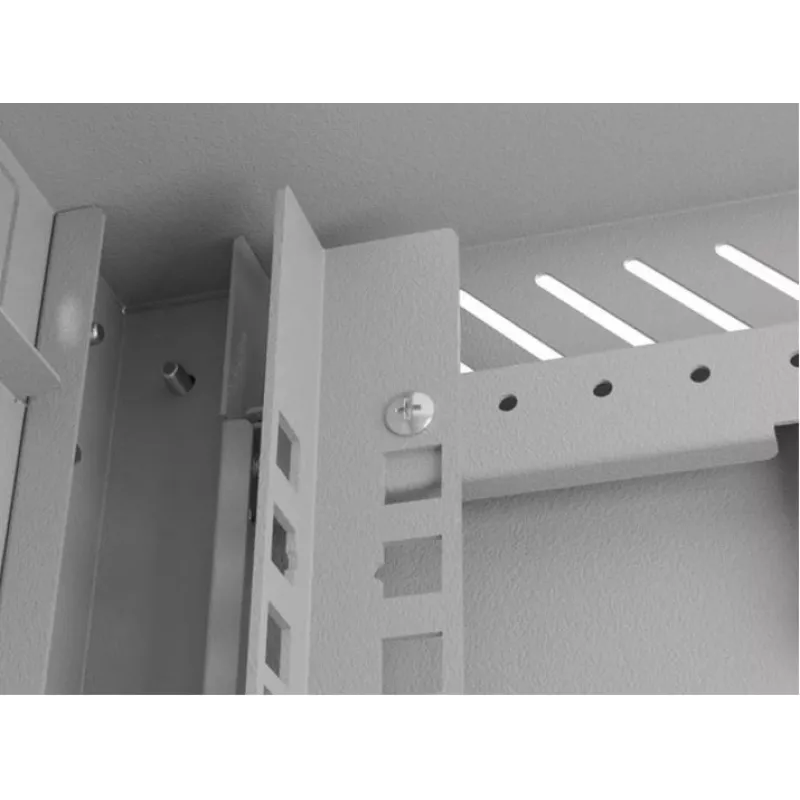

• Adjustable front and rear mounting rails

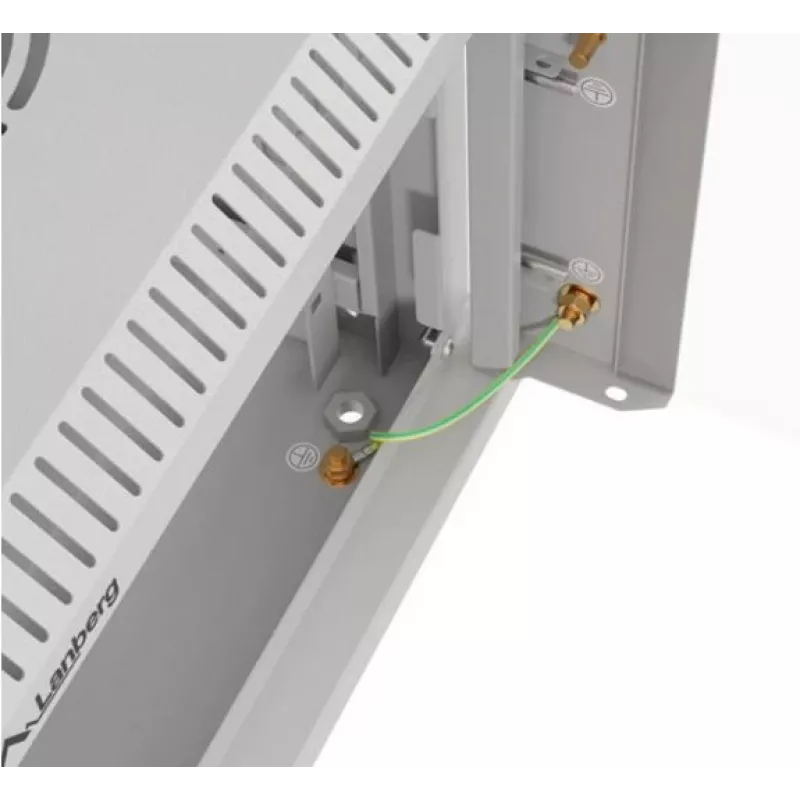

• Grounding points included
• Complies with IEC297-2, DIN41494 PART1, DIN41494 PART7

Why choose it

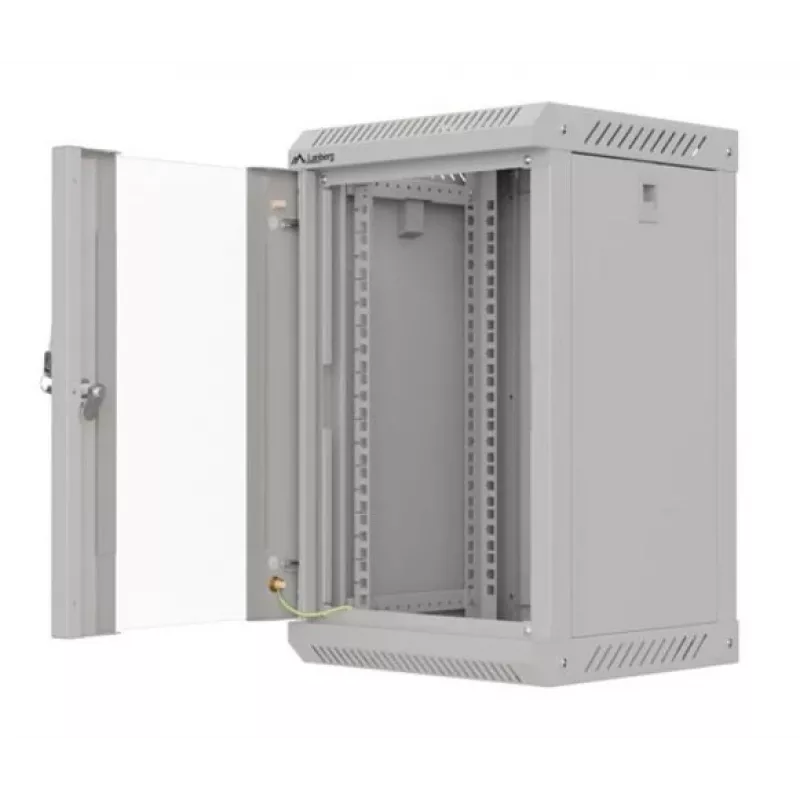

The WF11 series prioritizes practical functionality. Four vertical mounting rails allow flexible equipment placement, and the fan mount is positioned so that adding active cooling doesn't sacrifice usable rack space. Side access via removable doors and a reversible front door (left or right opening) make equipment installation and maintenance straightforward, even in tight spaces. The included rear mounting strip significantly reduces wall-installation time and effort.

Ideal use cases

• Small and medium business network closets
• Branch office IT installations
• Retail back-office networking equipment
• Home labs requiring organized, secure rack space
• Edge computing enclosures in limited-space environments

Good to know

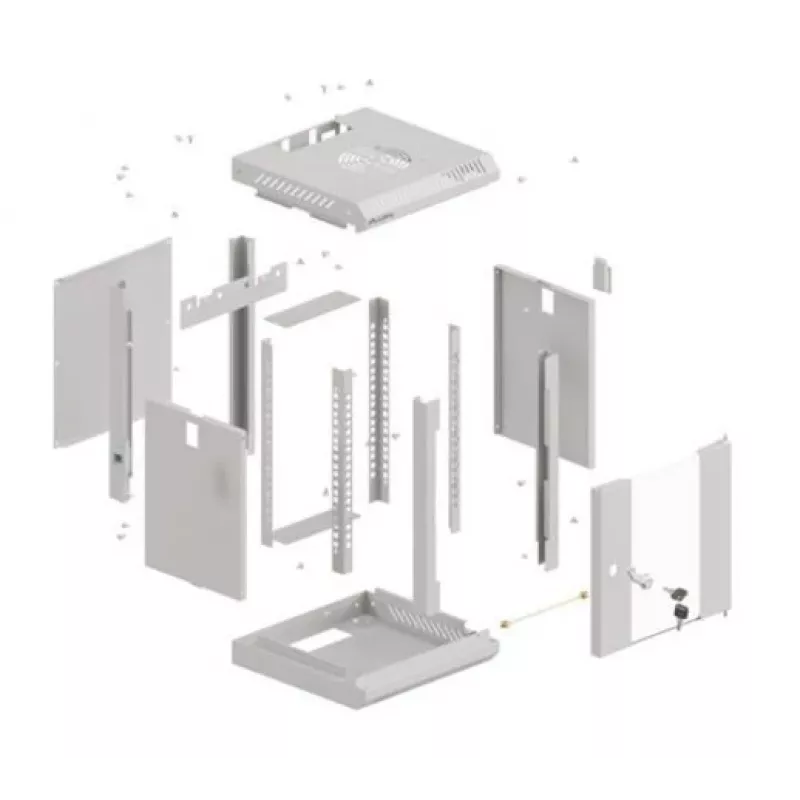

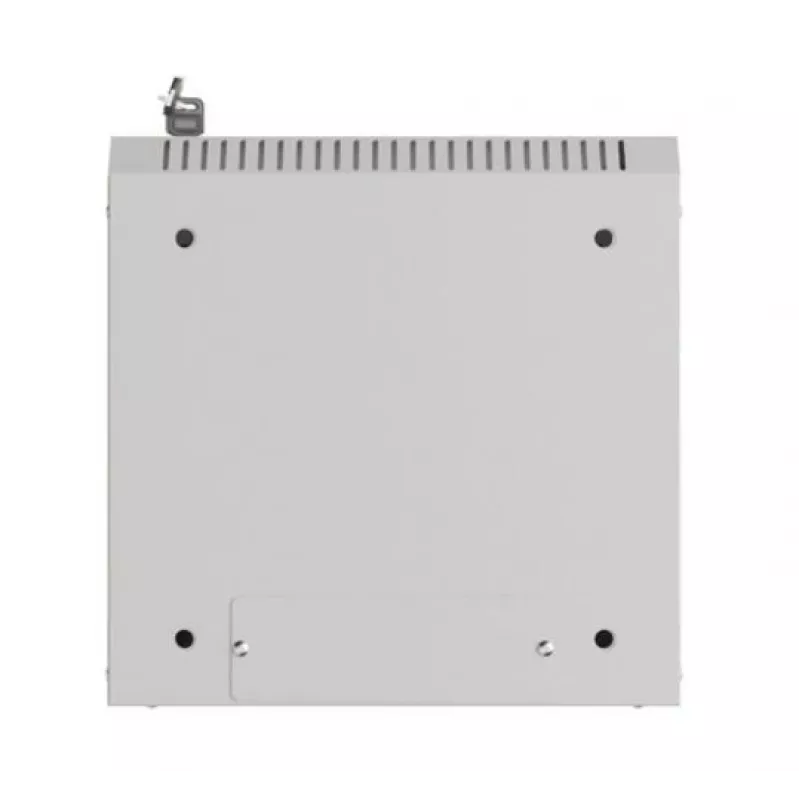

The cabinet arrives flat-packed for self-assembly, with all necessary hardware and a quick installation guide. Cable entry is provided through top and bottom panels, and the cabinet includes grounding points for electrical safety. The grey RAL 7035 powder-coated finish resists scratches and corrosion, ensuring long-term durability. For additional mobility, M10 holes in the bottom cover allow mounting on casters or feet (sold separately).
