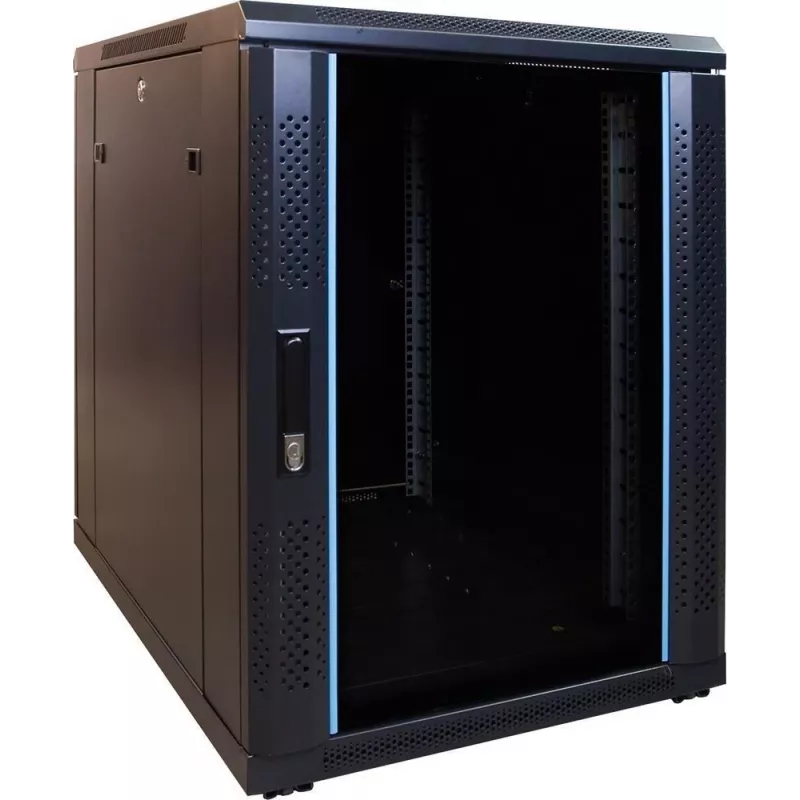

DSIT DS6615-MINI armario de servidor de pared 15U 600x600mm con puerta de cristal

With a 60 kg load capacity in a compact 15U form, the DSIT DS6615-MINI wall-mount server cabinet secures network equipment in space-constrained environments without compromising strength.

Overview

The DSIT DS6615-MINI is a 15U wall-mount server cabinet engineered for small to medium network installations. Its 600 x 600 mm footprint and 860 mm height provide ample space for 19-inch equipment while maintaining a low profile. The cabinet features a tempered glass front door with key lock, removable and lockable side panels, and adjustable mounting rails for flexible equipment placement.

What stands out

• 15U rack capacity with 19-inch mounting standard

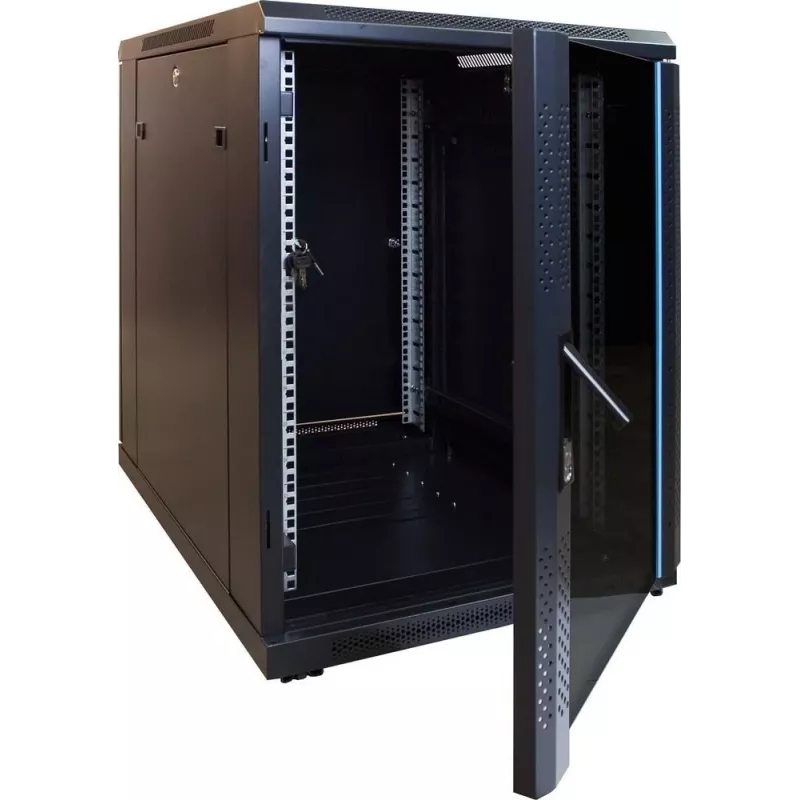

• Tempered glass front door with key lock for security and visibility

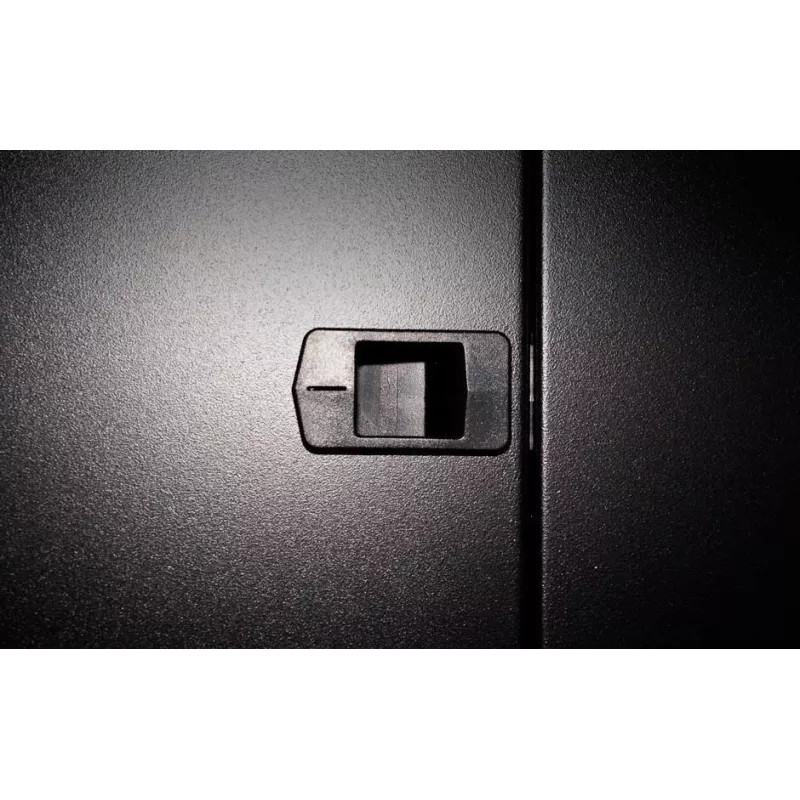

• Removable, lockable side panels for easy access and maintenance
• 60 kg maximum load capacity for heavy equipment
• Passive ventilation with fan-ready design for optimal airflow
• Pre-assembled for quick installation

Technical details

• External dimensions: 600 mm (W) x 600 mm (D) x 860 mm (H)
• Material: SPCC cold rolled steel with powder-coated finish (RAL 9005 black)

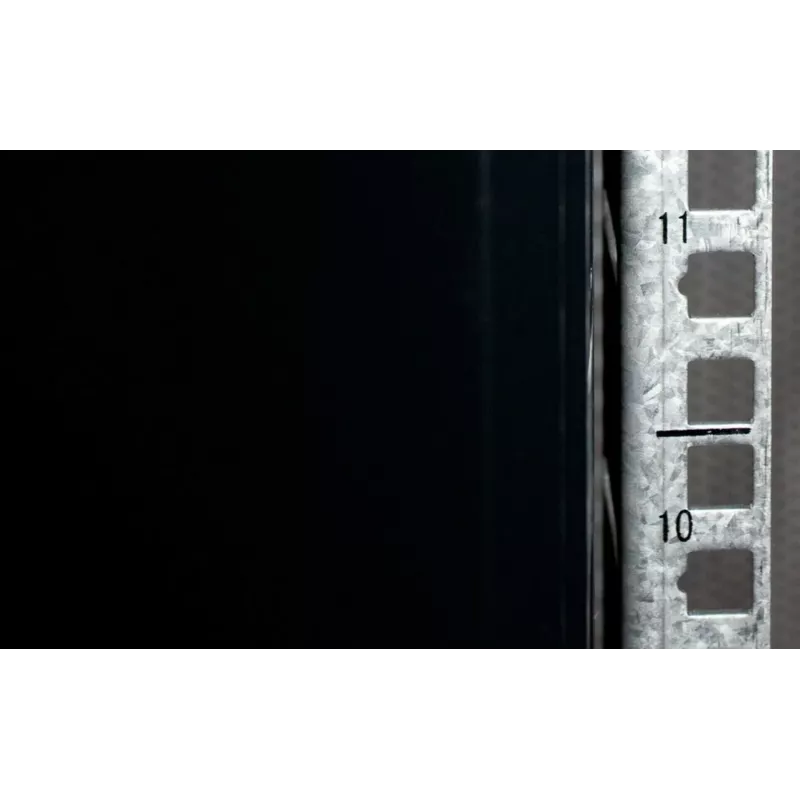

• Mounting depth: approx. 450 mm
• Cable entry: top and bottom
• Protection rating: IP20
• Compliance: RoHS, CE

Our verdict

With its solid construction, security features, and compact size, the DS6615-MINI is an excellent choice for small server rooms, offices, or retail environments where space and reliability are critical.
