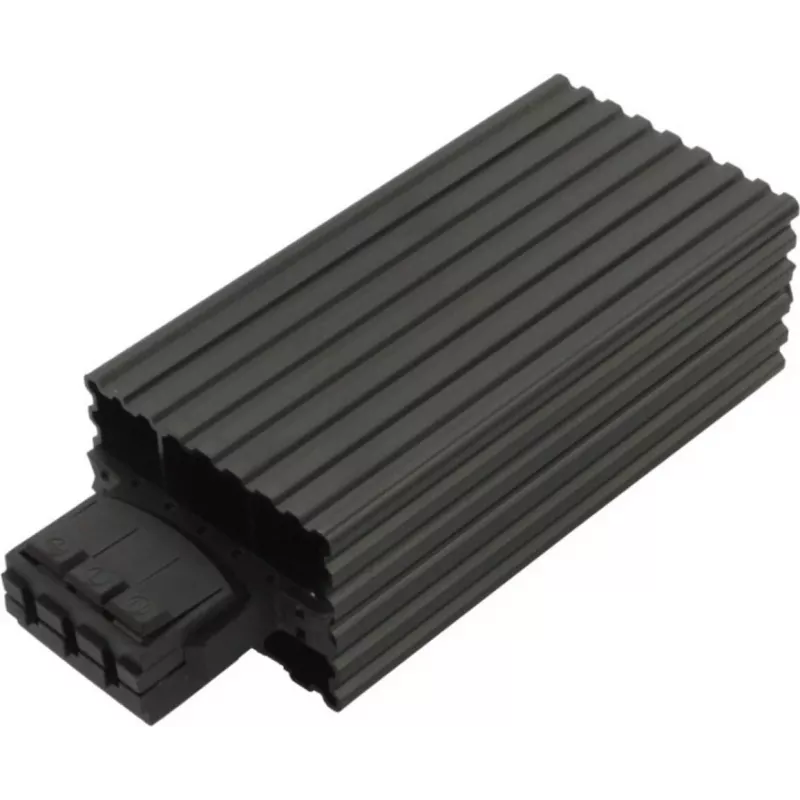

DSIT elemento calefactor para armario exterior de servidores 60W (DS-Heater-2)

In remote telecom sites and industrial enclosures, low temperatures can cause condensation and equipment failure. The DSIT DS-Heater-2 is a 60W PTC heating element engineered to maintain a stable internal climate in outdoor server cabinets and similar housings. Its self-regulating ceramic PTC technology adjusts heat output automatically, preventing overheating while ensuring reliable operation even in extreme cold.

Key specifications

• Heating power: 60 W
• Operating voltage: 110–240 V AC/DC
• Heating technology: PTC (Positive Temperature Coefficient) – self-regulating
• Mounting: 35mm DIN rail
• Connection: 2-pole terminal block
• Housing material: Anodized aluminum profile
• Protection class: IP20
• Operating temperature range: -40°C to +70°C
• Storage temperature range: -40°C to +85°C
• Operating humidity: 0% to 95% RH (non-condensing)
• Max current draw: 0.55 A @ 110V AC, 0.26 A @ 230V AC
• Lifespan: >50,000 hours
• Certifications: CE, RoHS compliant

Why choose it

This heater prevents condensation and maintains an optimal operating temperature, safeguarding sensitive electronics. Its compact DIN-rail design simplifies installation, while the anodized aluminum housing ensures durability in harsh environments. The self-regulating PTC element eliminates the need for a separate thermostat in many applications, reducing cost and complexity.

Ideal use cases

• Outdoor server cabinets
• Telecommunication enclosures
• Industrial control panels
• Any housing where temperature stability is critical

Good to know

For precise temperature control, an external thermostat is recommended. The heater is certified CE and RoHS compliant, meeting European standards for safety and environmental protection. With a lifespan exceeding 50,000 hours, it offers long-term reliability for mission-critical installations.
