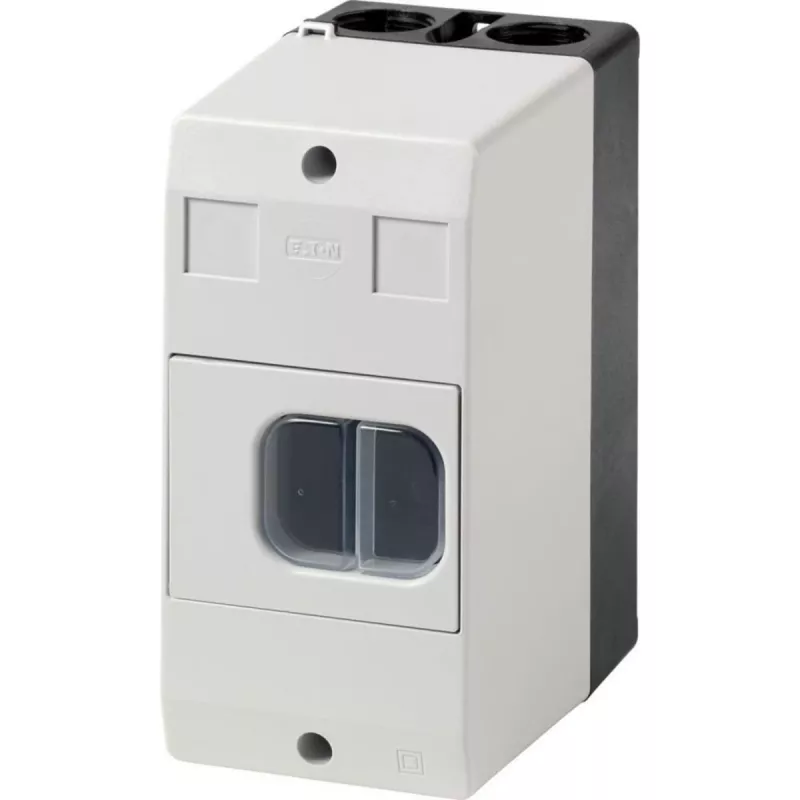

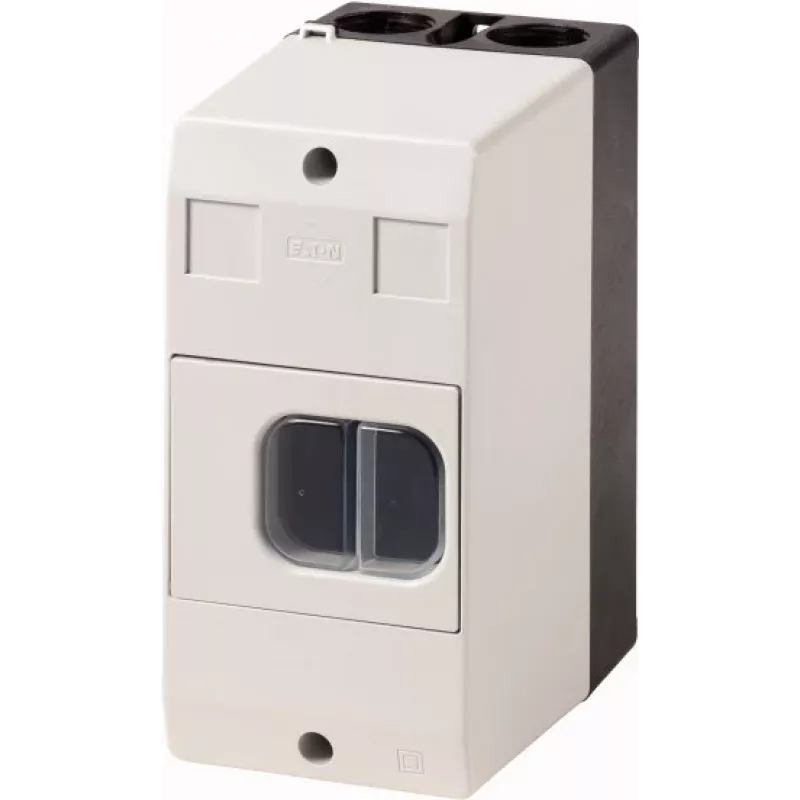

EATON carcasa aislante PKZM01 CI-PKZ01-G montaje en superficie con membrana de accionamiento IP65 281404

Insulated enclosure for motor protective circuit breakers with integrated operating membrane, providing IP65 protection for surface mounting.

Advantages

Thermoplastic enclosure with halogen-free material, UV resistance, and impact resistance IK07. Integrated operating membrane allows operation of the installed breaker without opening the enclosure.

Suitable for

• Motor protective circuit breakers PKZM01, PKE12, PKE32
• Surface mounting applications
• Main switch function

Key specifications

• Material: Thermoplastic (insulating material)
• Color: Grey (RAL 7035)
• Ingress protection: IP65
• Impact resistance: IK07
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Flammability rating: UL94 V-0
• Halogen-free: Yes
• UV resistance: Yes
• Cable entries: top 2 x M25/M32, bottom 2 x M25/M32, side 1 x M25/M32
• Number of modules: 1

Recommendations

Ideal for protecting motor protective circuit breakers in harsh environments requiring IP65 protection and easy operation.
