Eaton CS-44/200 Caja de pared 400x400x200mm acero gris IP65 IK10 111684

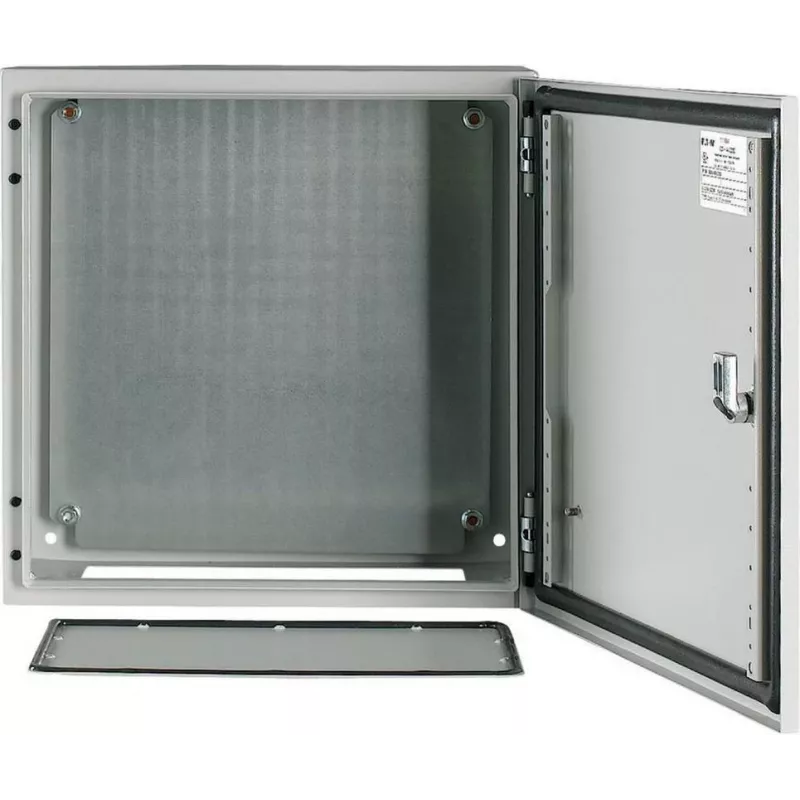

The Eaton CS-44/200 stands apart from generic wall boxes through its robust sheet steel construction and dual protection ratings—IP65 against dust and water jets, plus IK10 impact resistance. This 400 x 400 x 200 mm enclosure is engineered for demanding industrial and automation environments where reliable housing is non-negotiable.

Highlights

• Heavy-duty sheet steel body with powder-coated grey finish (RAL 7035)
• IP65 ingress protection – completely dust-tight and protected against low-pressure water jets
• IK10 impact rating – withstands 5 joules of mechanical impact
• Single solid door with quarter-turn lock and 3 mm double-bit insert
• Galvanized steel mounting plate included for easy component installation
• Removable gland plates on top and bottom for flexible cable entry

In daily use

Installation is straightforward: the enclosure mounts directly to a wall, and the pre-fitted galvanized mounting plate provides a sturdy base for DIN rails, terminals, or control gear. The quarter-turn lock keeps unauthorized access out while allowing quick service access. Top and bottom gland plates can be machined or replaced to suit cable routing, making the CS-44/200 adaptable to a wide range of electrical distribution and control tasks.

Full specifications

• Series: Eaton CS
• Type: Wall-mounted enclosure
• Material: Sheet steel, powder-coated
• Colour: Grey (RAL 7035)
• External dimensions (H x W x D): 400 x 400 x 200 mm
• Protection class: IP65
• Impact resistance: IK10
• Number of doors: 1
• Door type: Solid
• Lock type: Quarter-turn lock with double-bit insert (3 mm)
• Mounting plate: Galvanized steel, included
• Gland plates: Top and bottom
• Application: Industrial electrical installations, automation, distribution

Final note

The CS-44/200 combines ruggedness with practical features, making it a reliable choice for protecting electrical components in harsh conditions.
