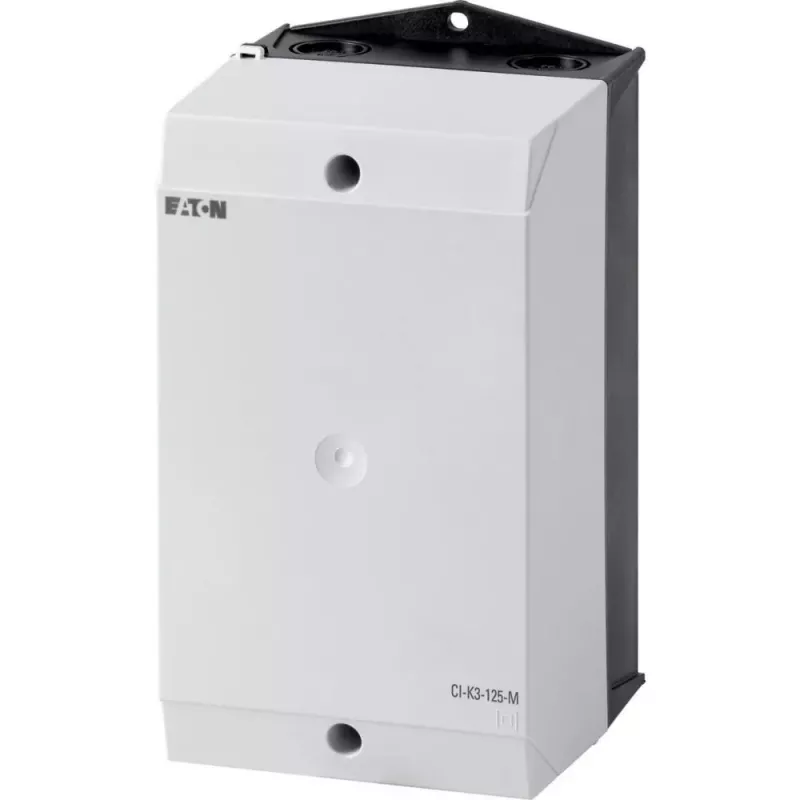

Eaton CI-K carcasa vacía para montaje en carril DIN, 120 x 200 x 125 mm, gris claro (RAL 7035), policarbonato 206895

Industrial control and automation projects often need a rugged, compact housing for DIN rail components that can be installed quickly and protected from dust and moisture. The Eaton CI-K empty enclosure provides a ready-to-use polycarbonate shell with a light grey finish, sized 120 x 200 x 125 mm, for mounting on standard DIN rails.

Who is it for

This enclosure is intended for panel builders, system integrators, and maintenance technicians who need a reliable housing for DIN rail devices such as circuit breakers, relays, terminals, and small controllers in industrial environments.

Main features

• Empty enclosure for DIN rail mounting
• Dimensions: 120 mm width, 200 mm height, 125 mm depth
• Material: polycarbonate
• Colour: light grey (RAL 7035)
• Opaque cover
• Seal material: polyurethane (PU)
• Part of the CI-K series

Specifications

• Product type: Empty enclosure
• Mounting type: DIN rail mounting
• Enclosure material: Polycarbonate
• Cover material: Polycarbonate
• Colour: Light grey (RAL 7035)
• External dimensions (W x H x D): 120 x 200 x 125 mm
• Operating temperature range: -25 to +70 °C
• Flammability rating: UL 94 V-0
• Cover type: Opaque
• Seal material: Polyurethane (PU)
• Number of doors/covers: 1
• Cable entry: No pre-drilled entries (user-configurable)
• Internal mounting options: Provisions for DIN rail and mounting plate (sold separately)

Tips

When planning your installation, note that cable entries are not pre-drilled, allowing you to customize openings to your wiring needs. The enclosure is compatible with DIN rail and mounting plates, which are available separately.
