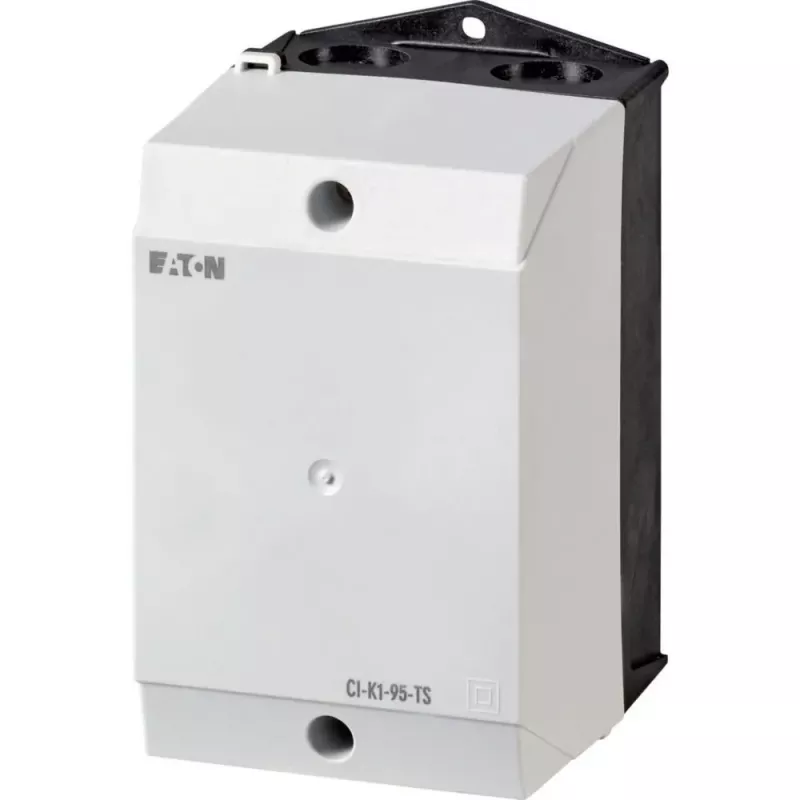

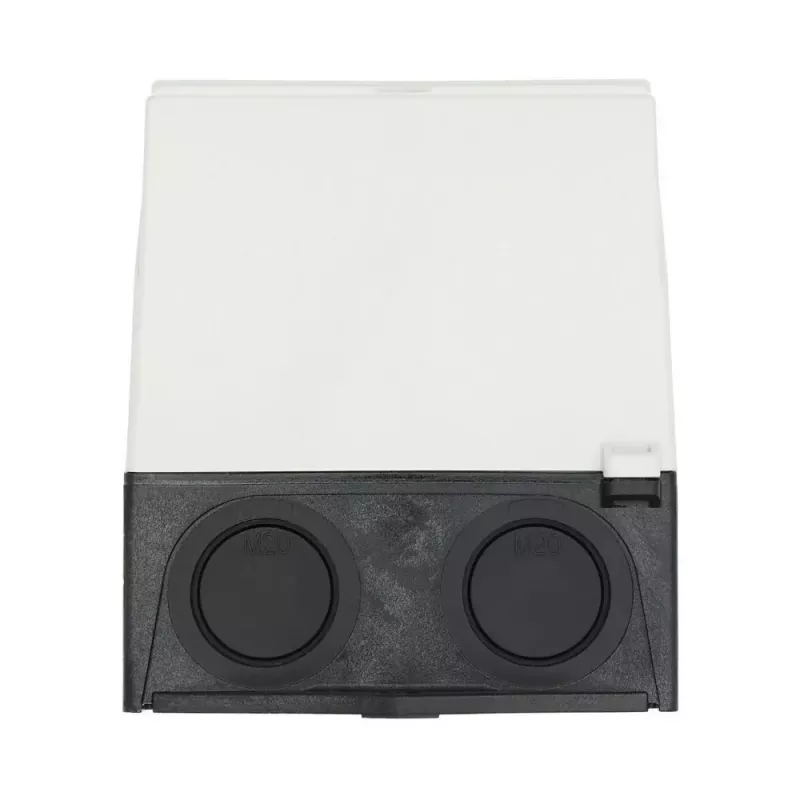

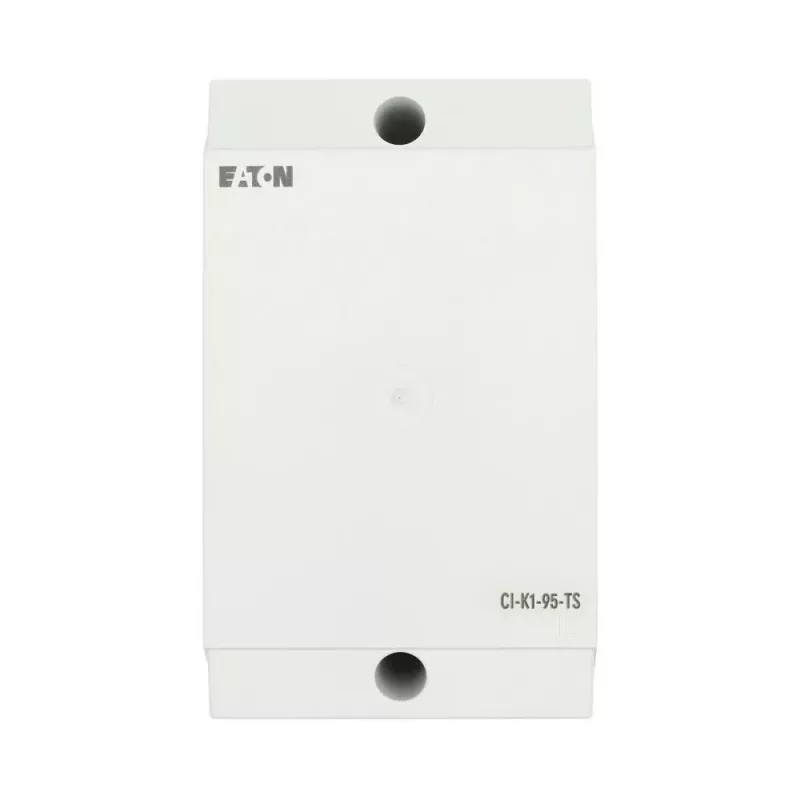

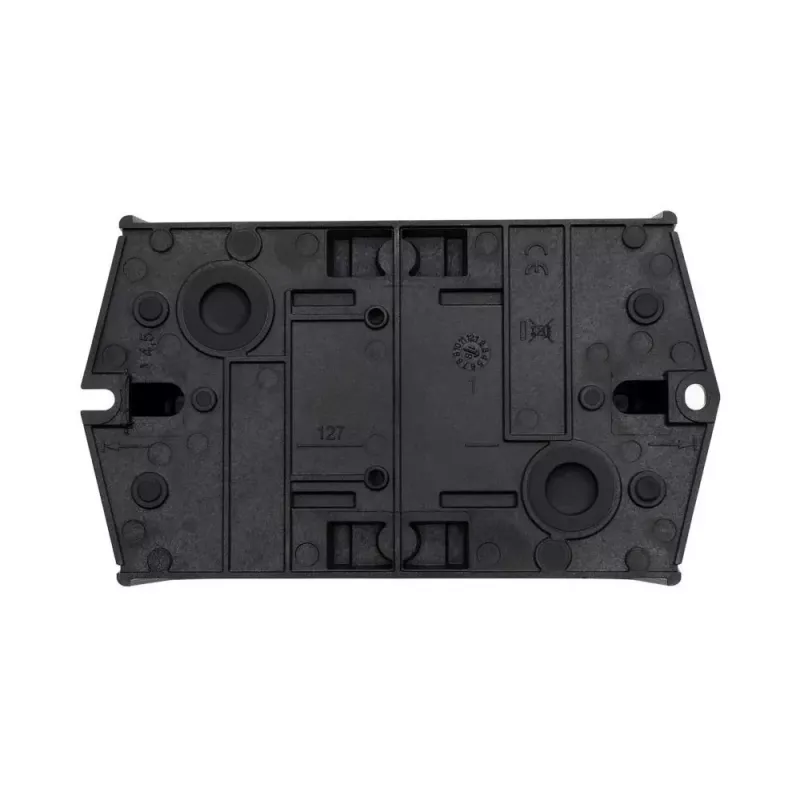

Eaton CI-K1 Caja vacía para montaje en carril DIN, 80 x 120 x 95 mm, gris claro (RAL 7035), policarbonato 206881

When industrial control and automation components need a robust, space-efficient housing, this Eaton CI-K1 empty enclosure provides a reliable solution for DIN rail mounting. Its compact footprint and durable polycarbonate construction protect sensitive electronics in demanding environments.

Who is it for

This enclosure is intended for system integrators, panel builders, and maintenance engineers who require a lightweight yet impact-resistant housing for DIN rail-mounted devices such as terminal blocks, relays, or small controllers. It suits applications in industrial control, automation, and power distribution where space is limited.

Main features

• Empty enclosure designed for DIN rail mounting, allowing quick installation and removal of internal components.
• Made from polycarbonate, offering high impact resistance (IK07) and a wide operating temperature range from -40°C to +80°C.
• Compact external dimensions of 80 mm width, 120 mm height, and 95 mm depth, ideal for tight spaces.
• Light grey (RAL 7035) colour blends with standard industrial control panels.
• Halogen-free and UV resistant, ensuring long-term durability in outdoor or harsh indoor environments.
• Flammability rating UL 94 V-0 for enhanced fire safety.

Specifications

• Enclosure type: Empty enclosure
• Mounting type: DIN rail mounting
• Material: Polycarbonate (PC)
• Colour: Light grey (RAL 7035)
• External width: 80 mm
• External height: 120 mm
• External depth: 95 mm
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Operating temperature: -40°C to +80°C
• Halogen-free: Yes
• UV resistant: Yes
• Series: CI-K1

Tips

When selecting internal components, ensure they fit within the usable space behind the opaque lid. For outdoor installations, the UV resistance and wide temperature range make this enclosure suitable, but additional sealing may be required for extreme conditions.
