EATON conector macho recto M12 codificado A de 4 polos, conexión por tornillo, IP65/IP67, 230V/4A, carcasa de PBT, contactos dorados, cable 4-6mm 266135

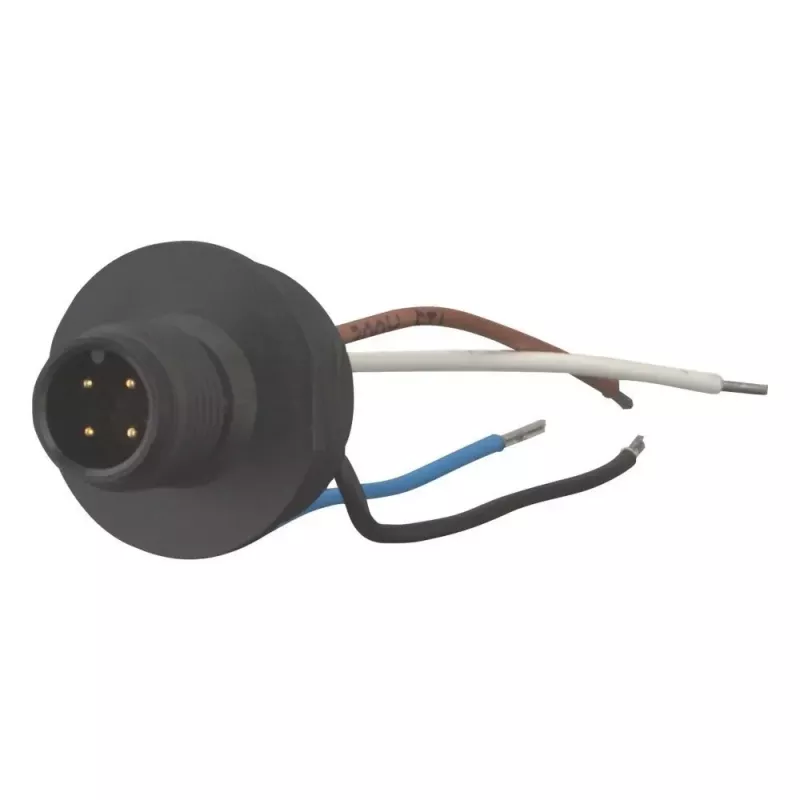

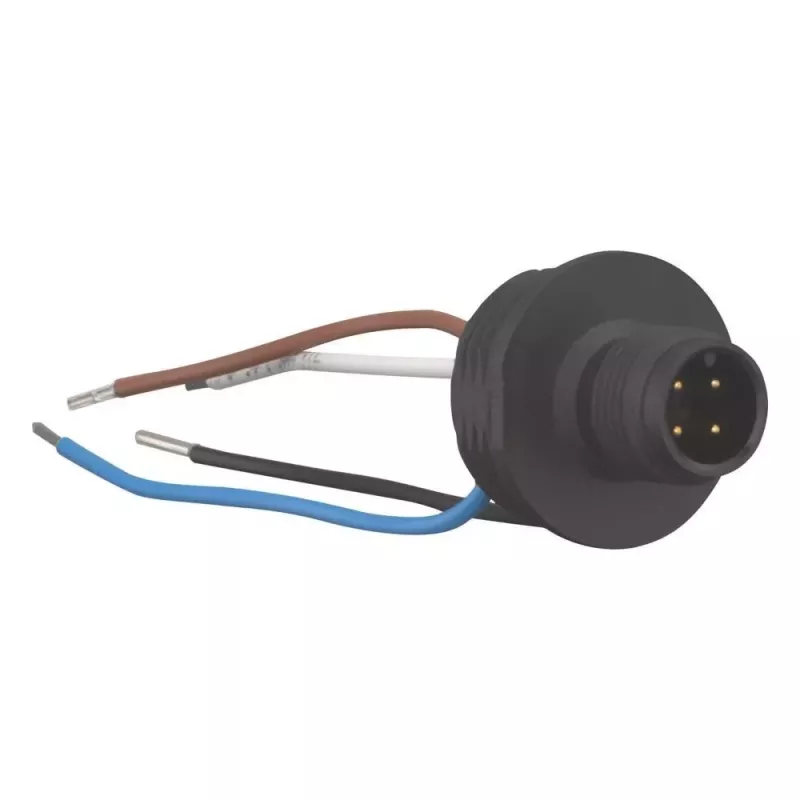

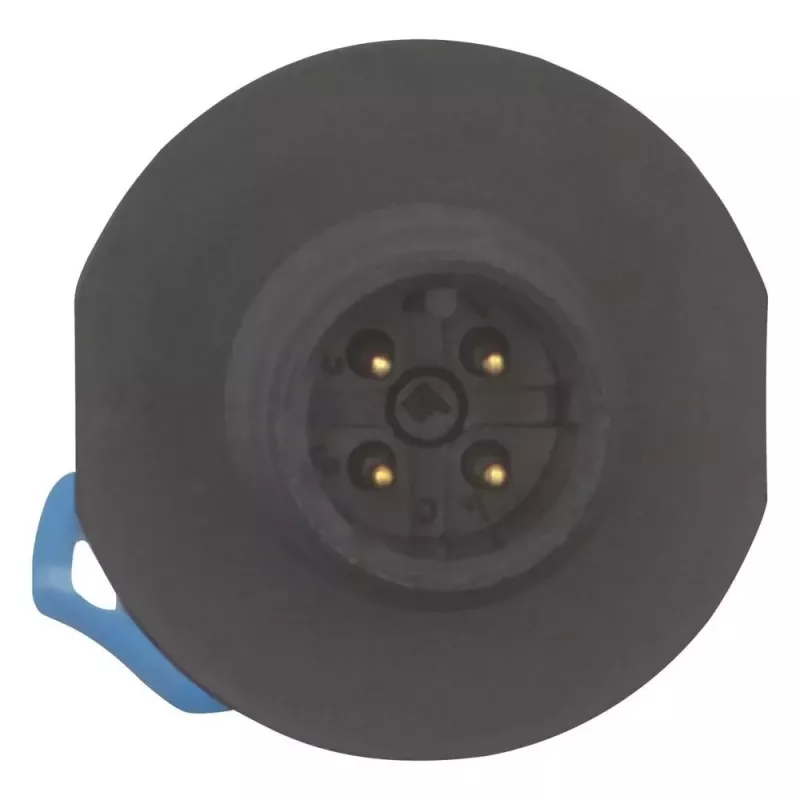

This M12 circular connector from Eaton is a robust 4-pole male plug with A-coding, designed for reliable signal and power transmission in industrial environments. Its screw termination and straight orientation make it suitable for field assembly, while the IP65/IP67 rating ensures protection against dust and water ingress when mated.

Advantages

The connector features a durable PBT housing and gold-plated brass contacts for excellent conductivity and corrosion resistance. The M12x1 threaded locking mechanism provides secure mating, and the wide operating temperature range from -40°C to +90°C allows use in harsh conditions.

Suitable for

• Industrial automation and sensor/actuator connections
• Field-installable cable assemblies requiring screw termination
• Applications needing a compact, IP67-rated circular connector

Key specifications

• Connector type: M12 circular, male, A-coded, 4-pole, straight
• Termination: screw
• Rated voltage/current: 230 V AC/DC, 4 A
• Ingress protection: IP65, IP67 (mated)
• Housing material: PBT; contact material: CuZn, gold-plated
• Cable diameter range: 4–6 mm
• Operating temperature: -40°C to +90°C

Recommendations

For reliable field wiring, pair with a compatible M12 female connector and use cables within the specified diameter range.
