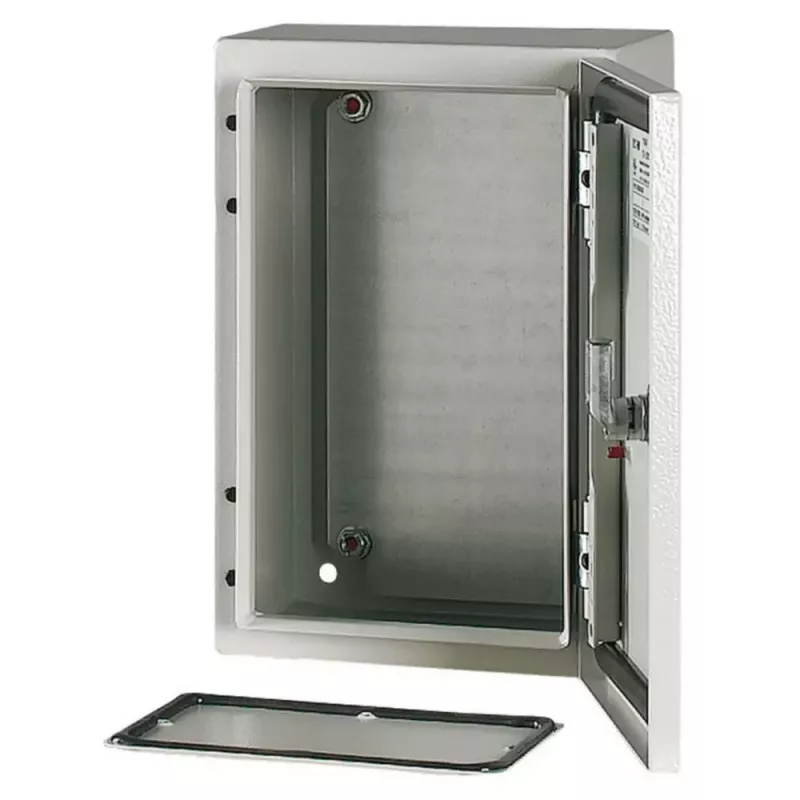

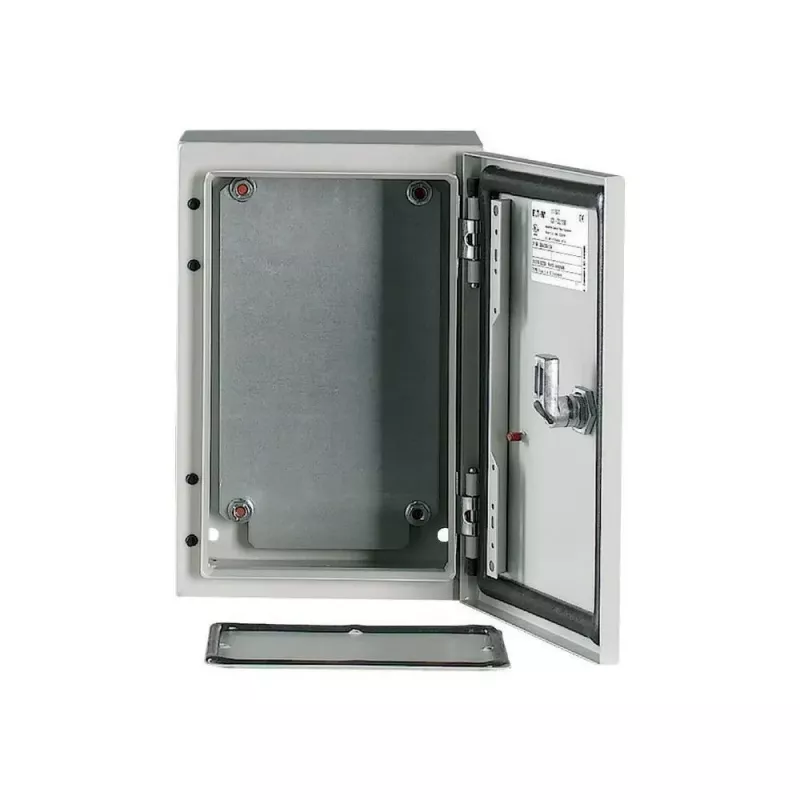

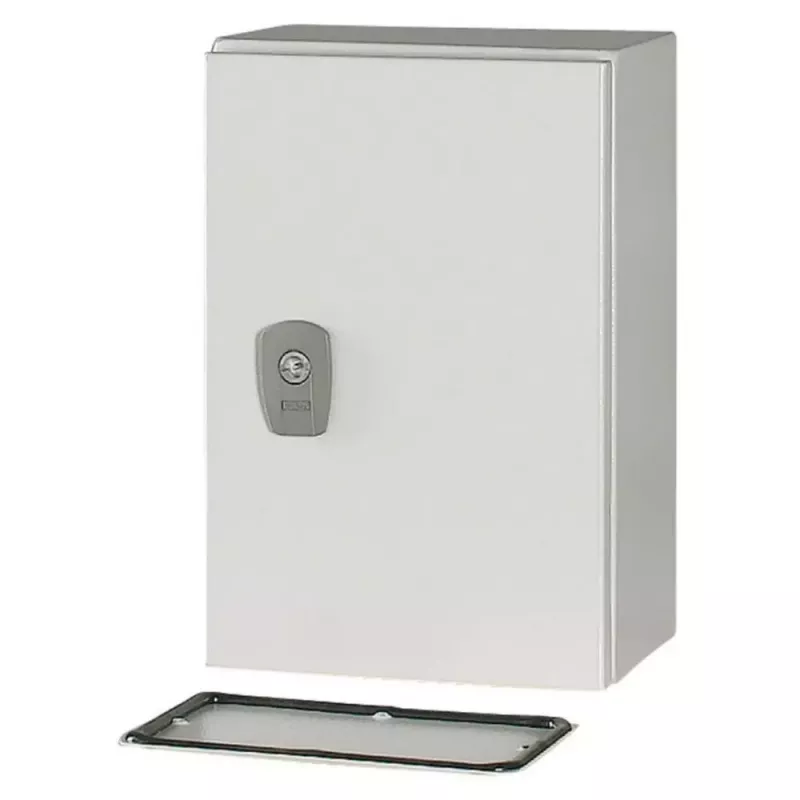

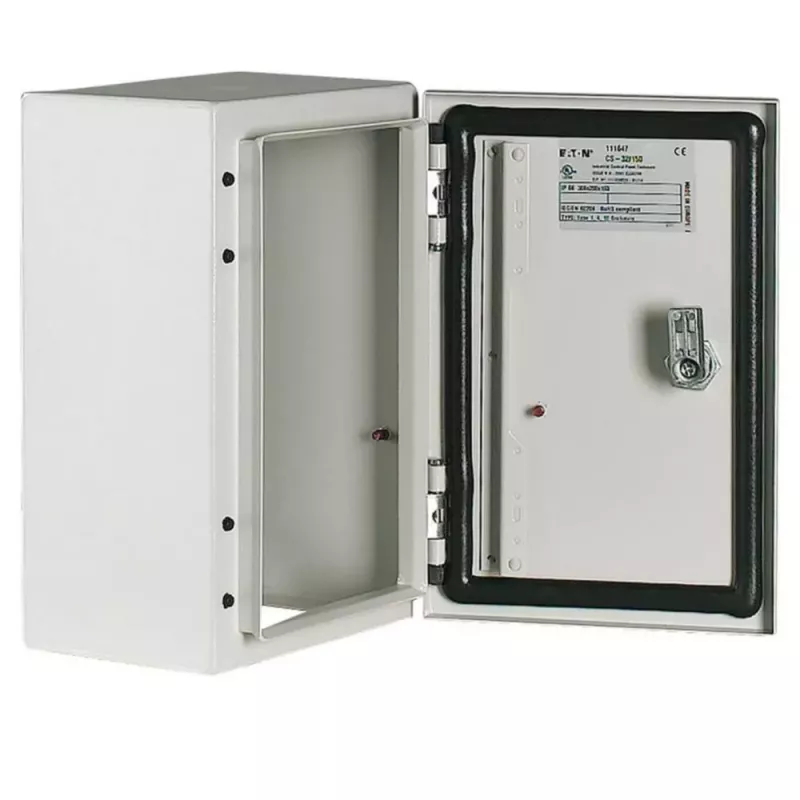

Eaton CS-32/150 carcasa de pared, gris (111647)

The Eaton CS-32/150 stands out as a compact yet rugged wall-mounted enclosure, offering IP65 and IK09 protection in a space-saving 320x150x150 mm footprint. Its solid steel construction and powder-coated grey finish make it a reliable choice for industrial electrical installations and automation systems where durability and environmental sealing are critical.

Highlights

• Robust sheet steel body with powder-coated grey finish (RAL 7035)
• IP65 dust-tight and water-jet resistant; IK09 impact protection
• Single solid door with 120° opening angle and quarter-turn lock (3 mm double-bit insert)
• Includes galvanized steel mounting plate and bottom gland plate for cable entry
• Meets IEC/EN 62208, IEC/EN 60529, and IEC/EN 62262 standards

In daily use

The CS-32/150 provides a secure, weatherproof housing for electrical components in demanding environments. Its compact dimensions allow installation in tight spaces, while the quarter-turn lock ensures quick yet secure access. The included mounting plate simplifies component assembly, and the bottom gland plate facilitates clean cable management.

Full specifications

• External dimensions (H x W x D): 320 x 150 x 150 mm
• Material: Sheet steel, powder-coated
• Colour: Grey (RAL 7035)
• Protection rating: IP65, IK09
• Door type: Solid, single door, opening angle 120°
• Lock: Quarter-turn lock with 3 mm double-bit insert
• Mounting plate: Galvanized steel, included
• Gland plate: Yes, bottom
• Standards: IEC/EN 62208, IEC/EN 60529, IEC/EN 62262

Final note

A compact and durable enclosure for industrial applications where space is limited but protection cannot be compromised.
