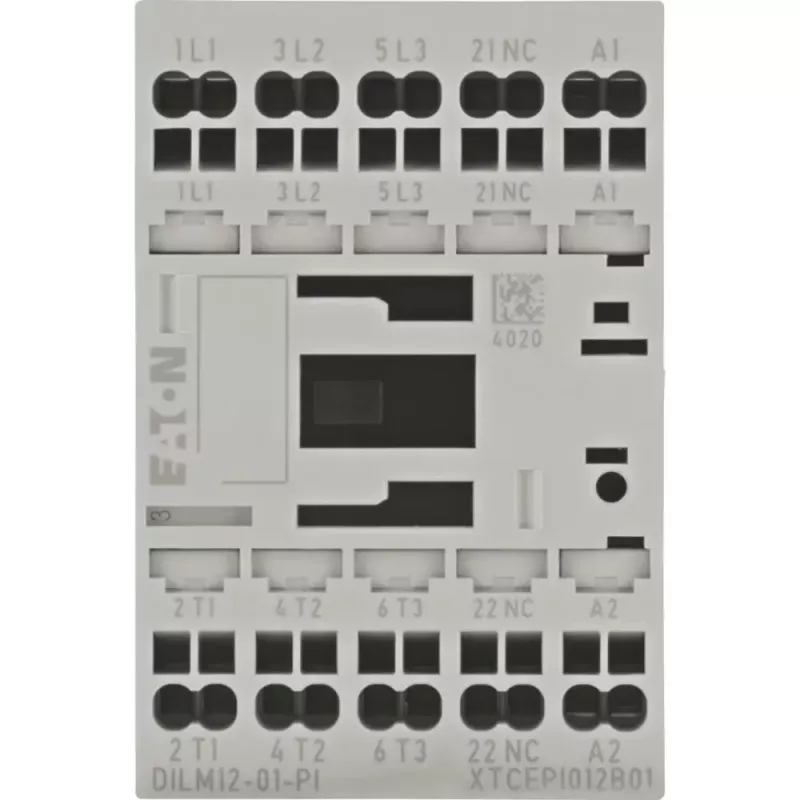

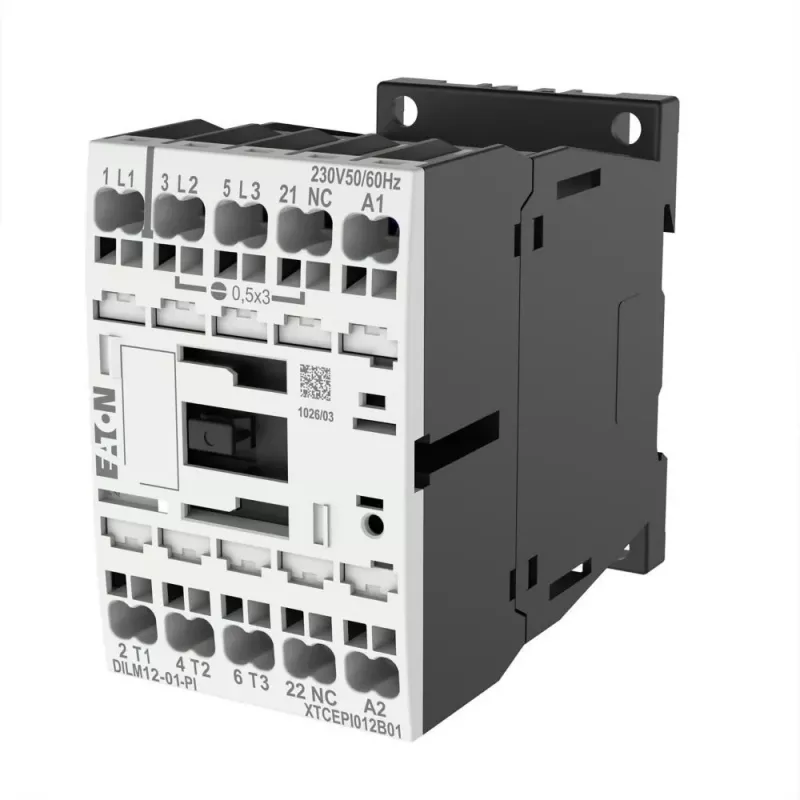

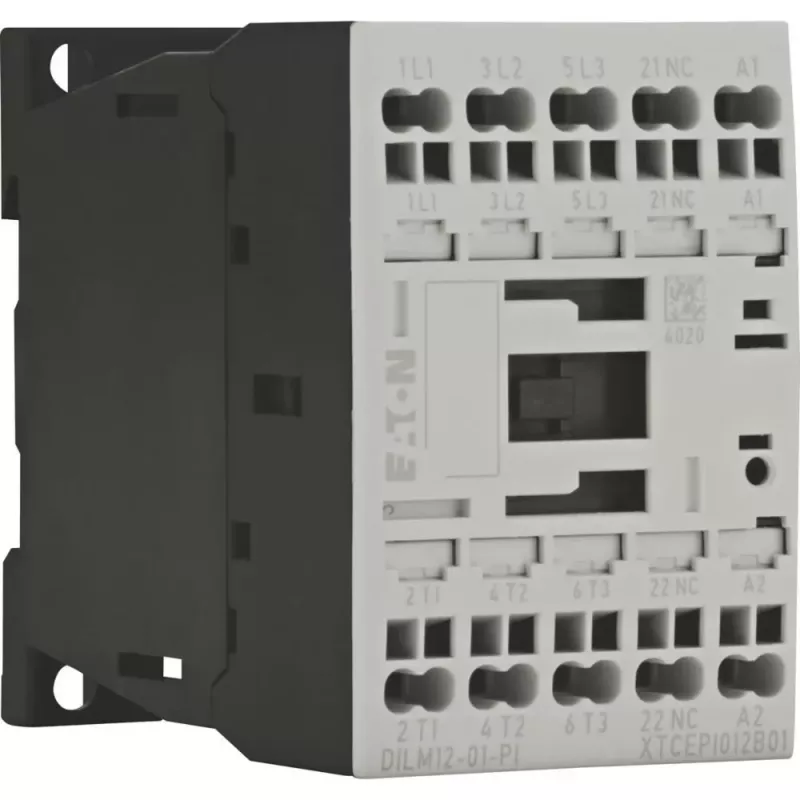

EATON DILM12-199244 contactor de potencia tripolar, 12 A, bobina 230 V 50 Hz / 240 V 60 Hz, 1 contacto auxiliar NO, bornes de tornillo

Power contactor from the EATON DILM series, engineered for reliable switching of three-phase AC motors up to 5.5 kW at 400 V. Its robust design and high mechanical durability make it a dependable choice for industrial control applications.

Advantages

The DILM12-199244 offers a compact frame with a 12 A rated operational current, ensuring efficient motor control in space-constrained installations. The integrated 1 NO auxiliary contact provides a convenient status signal for control circuits, while screw terminals allow secure and straightforward wiring.

Suitable for

• Switching three-phase motors up to 5.5 kW (AC-3, 400 V)
• Industrial control panels and motor starters
• Applications requiring a 230 V 50 Hz or 240 V 60 Hz coil supply
• DIN rail or screw mounting installations

Key specifications

• Number of main poles: 3
• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Coil voltage: 230 V AC 50 Hz / 240 V AC 60 Hz
• Auxiliary contact: 1 NO
• Terminal type: screw terminals
• Mounting: DIN rail or screw
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Maximum switching frequency (AC-3): 3000 operations/hour
• Power loss per pole: 1.1 W

Recommendations

For reliable motor switching in industrial environments, pair this contactor with an appropriate thermal overload relay and a suitable enclosure to ensure protection against dust and accidental contact.
