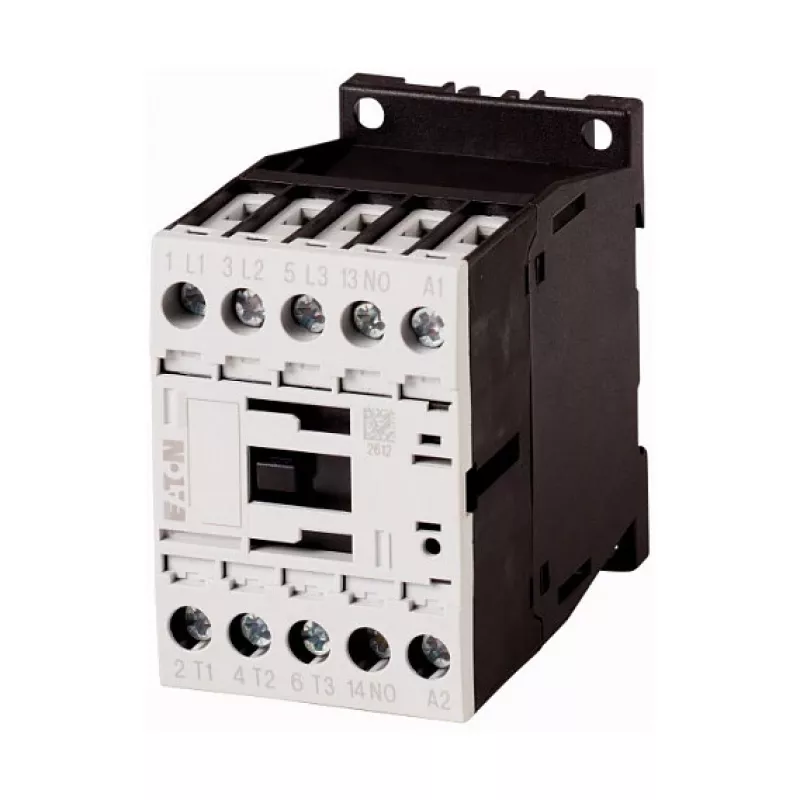

Eaton DILM12-10 contactor de potencia – bobina 230V AC, 3 polos + 1 NA, 12A AC-3, 5,5kW, IP20, montaje en carril DIN

With a mechanical lifespan of 10 million operations and a rated operational current of 12 A at 400 V AC-3, the Eaton DILM12-10 contactor is built for demanding industrial switching. This 3-pole device with an integrated 1 NO auxiliary contact controls motors up to 5.5 kW, making it a reliable choice for conveyors, pumps, and machine tools.

Overview

The DILM12-10 belongs to Eaton's DILM series of power contactors, designed for controlling three-phase AC loads. Its 230 V AC coil (50/60 Hz) connects directly to standard control circuits, while screw terminals and IP20 protection ensure secure wiring inside enclosures. The compact 45 mm width saves panel space without sacrificing performance.

What stands out

• Exceptional durability: 10 million mechanical and 1.5 million electrical operations (AC-3) guarantee long service life.
• Space-saving design: only 45 mm wide, ideal for dense control panels.
• Integrated auxiliary contact: 1 NO contact provides status feedback or interlocking.
• Global compliance: meets IEC/EN 60947 and VDE 0660 standards.
• Flexible mounting: DIN rail or screw mounting adapts to various installations.

Technical details

• Control voltage: 230 V AC (50/60 Hz)
• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Number of main poles: 3
• Auxiliary contacts: 1 NO
• IP rating: IP20
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Standards: IEC/EN 60947, VDE 0660
• Ambient operating temperature: -25 to +60 °C
• Mechanical lifespan: 10 million operations
• Electrical lifespan (AC-3): 1.5 million operations
• Main circuit voltage (Ue): 690 V AC
• Colour: black, white

Our verdict

The Eaton DILM12-10 combines proven reliability with a compact footprint, making it a smart choice for motor control applications where space and longevity matter.
