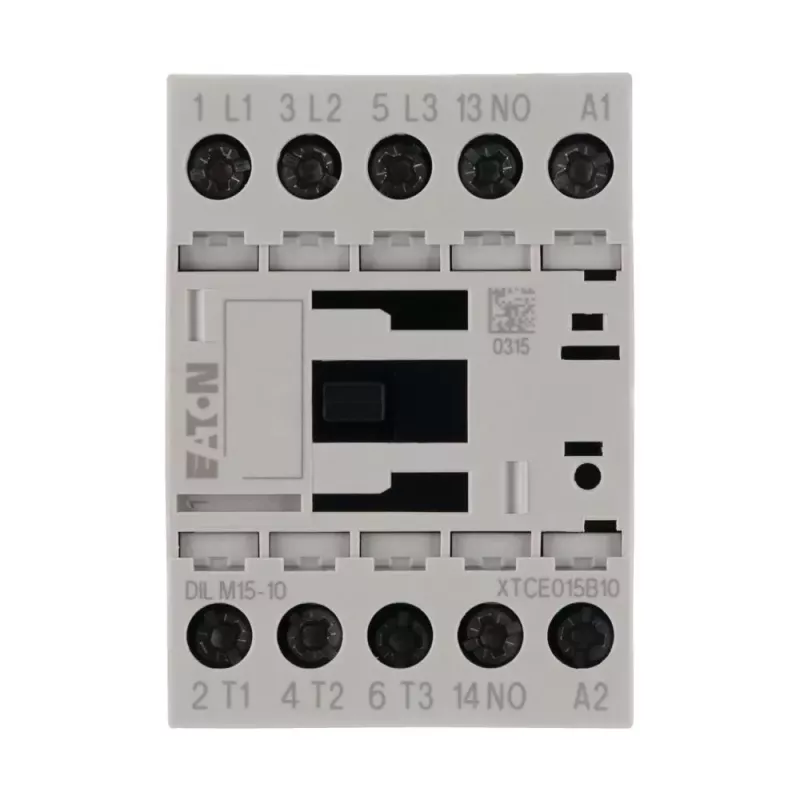

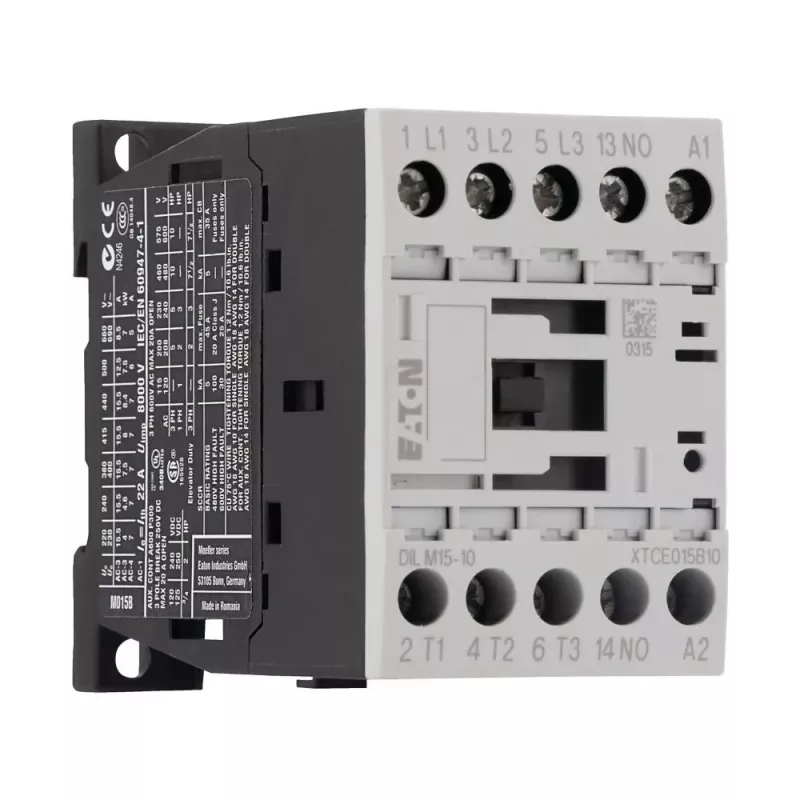

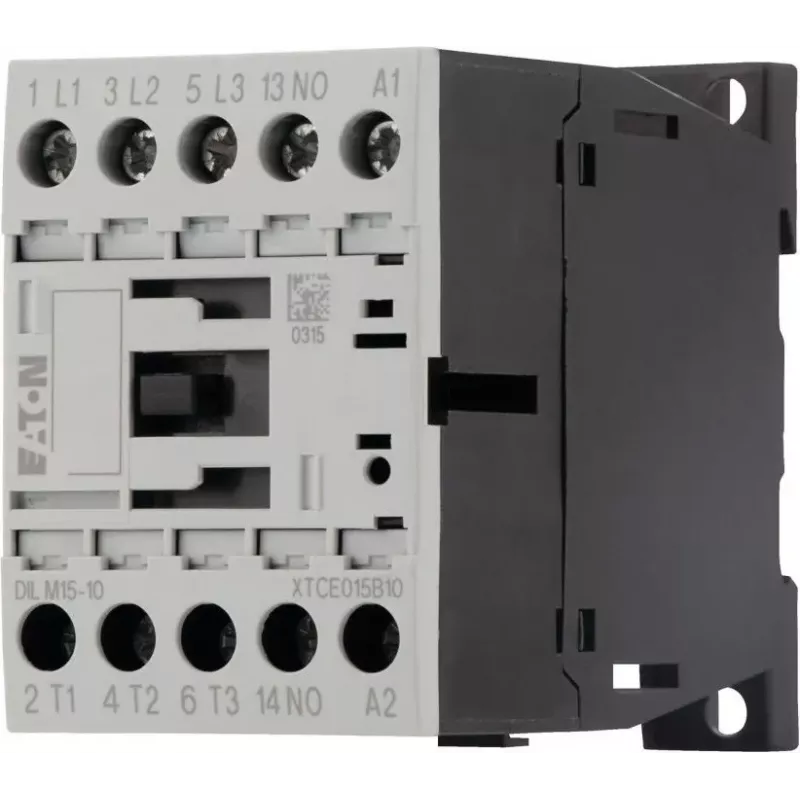

Eaton DILM15-10 contactor, 3 polos, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 1 contacto auxiliar NA, 15 A 290058

Power contactor for switching three-phase AC loads up to 7.5 kW at 400 V. The DILM15-10 provides reliable control of motors and other industrial equipment with a 230 V AC 50 Hz / 240 V AC 60 Hz coil and a 1 NO auxiliary contact.

Advantages

High mechanical and electrical durability ensure long service life in demanding applications. Screw terminals and DIN rail or screw mounting allow fast, secure installation.

Suitable for

• Motor starting and stopping in industrial control panels
• Heating, lighting, and pump circuits
• Machinery requiring frequent switching operations

Key specifications

• Rated operational current AC-3: 15 A at 400 V
• Rated operational power AC-3: 7.5 kW at 400 V
• Coil voltage: 230 V AC 50 Hz / 240 V AC 60 Hz
• Main contacts: 3 NO, auxiliary contact: 1 NO
• Rated insulation voltage: 690 V

Recommendations

Pair with Eaton PKZM motor-protective circuit breakers for complete motor starter combinations.
