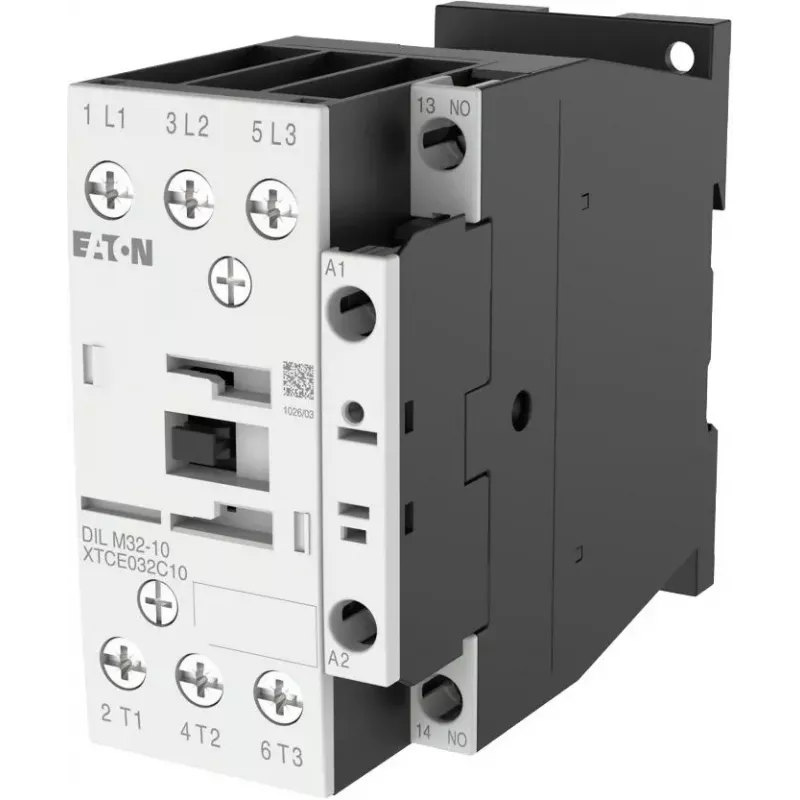

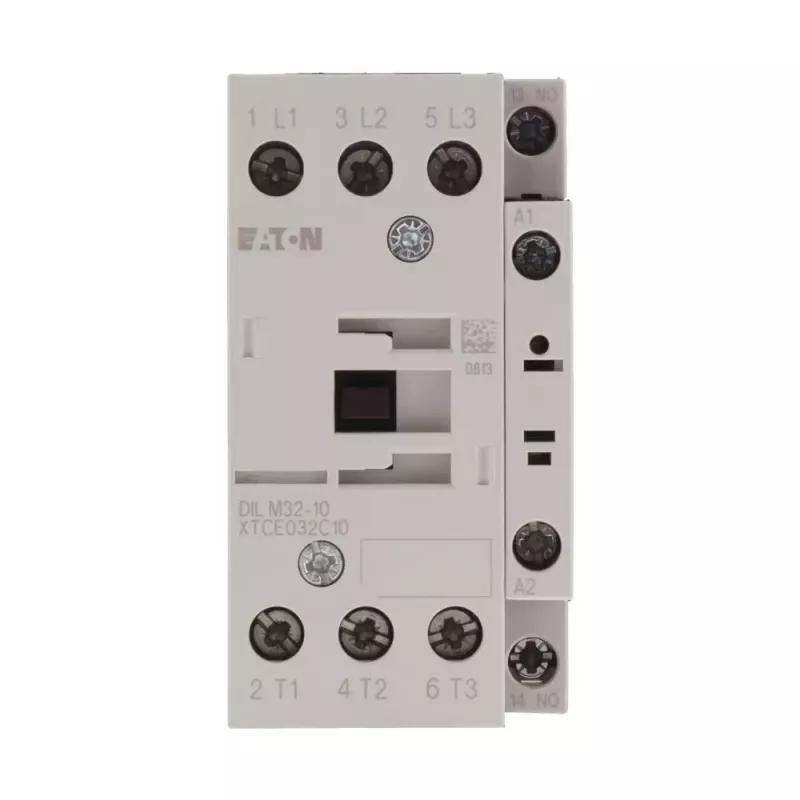

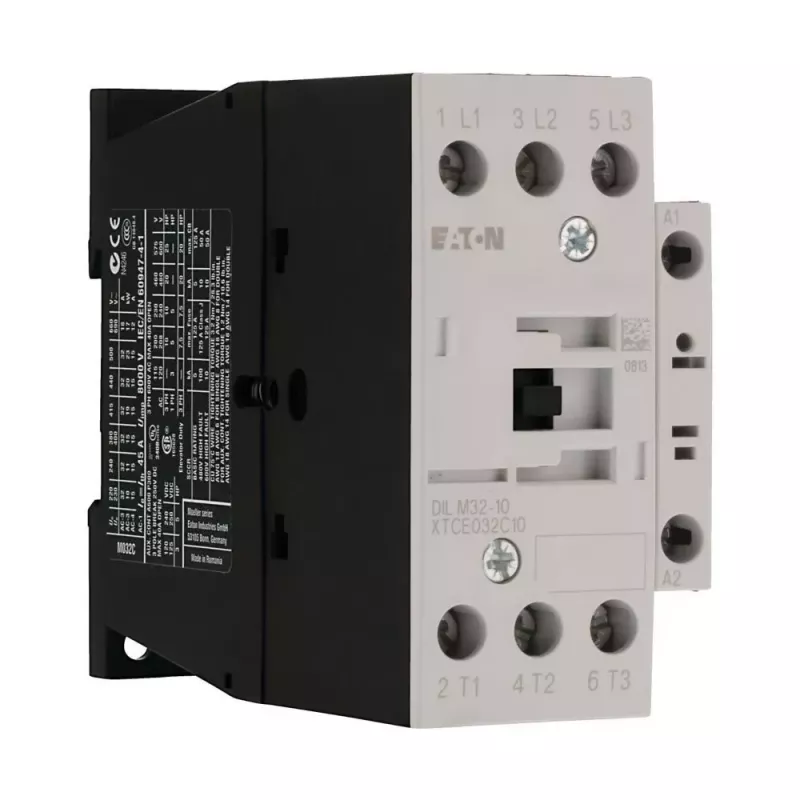

Eaton DILM32-10 contactor de potencia, 3 polos, 32 A, bobina 230 V AC 50 Hz / 240 V AC 60 Hz, 1 contacto auxiliar NA

With a rated operational current of 32 A at AC-3 (400 V) and a mechanical life of 10 million operations, this Eaton DILM32-10 power contactor is built for demanding motor control and switching applications. Its 3-pole main contact configuration and 1 normally open auxiliary contact provide reliable performance in industrial environments.

Overview

The Eaton DILM32-10 is a robust 3-pole power contactor designed for switching motors up to 15 kW at 400 V AC-3. It features a coil rated for 230 V AC at 50 Hz and 240 V AC at 60 Hz, making it suitable for various supply networks. The contactor includes one normally open (NO) auxiliary contact for control and signaling purposes. It is engineered for long-term reliability with a mechanical durability of 10 million operations and an electrical durability of 1.5 million operations under AC-3 conditions.

What stands out

• High switching capacity: 32 A rated operational current (AC-3, 400 V) and 15 kW rated power.
• Dual frequency coil: 230 V AC 50 Hz / 240 V AC 60 Hz for flexible integration.
• Long service life: 10 million mechanical operations and 1.5 million electrical operations.
• Compact design: DIN rail or screw mounting for easy installation.
• Compliance with international standards: IEC/EN 60947-4-1, VDE, UL, CSA.

Technical details

• Number of poles: 3
• Main contacts: 3 normally open (NO)
• Auxiliary contacts: 1 normally open (NO), 0 normally closed (NC)
• Rated operational current (AC-3, 400 V): 32 A
• Rated operational power (AC-3, 400 V): 15 kW
• Coil voltage: 230 V AC 50 Hz / 240 V AC 60 Hz
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Mechanical durability: 10 x 10^6 operations
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Mounting: DIN rail / screw mounting
• Terminal type: screw terminals
• Standards: IEC/EN 60947-4-1, VDE, UL, CSA
• Frame size: DILM32

Our verdict

The Eaton DILM32-10 is a dependable choice for industrial motor control, offering high performance, long life, and compliance with key standards. Its dual-frequency coil and compact mounting options make it versatile for a wide range of applications.
