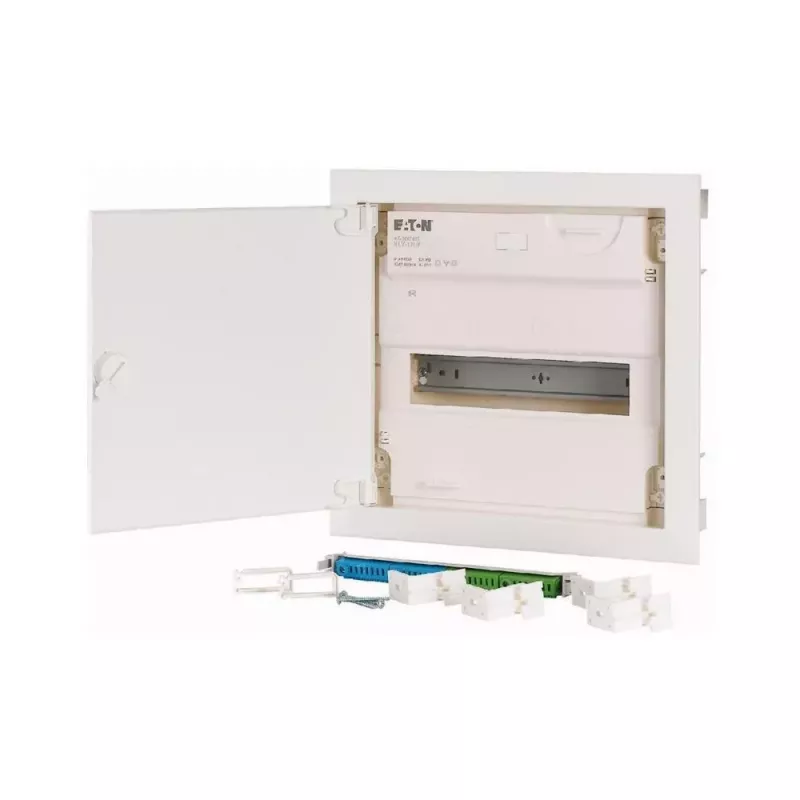

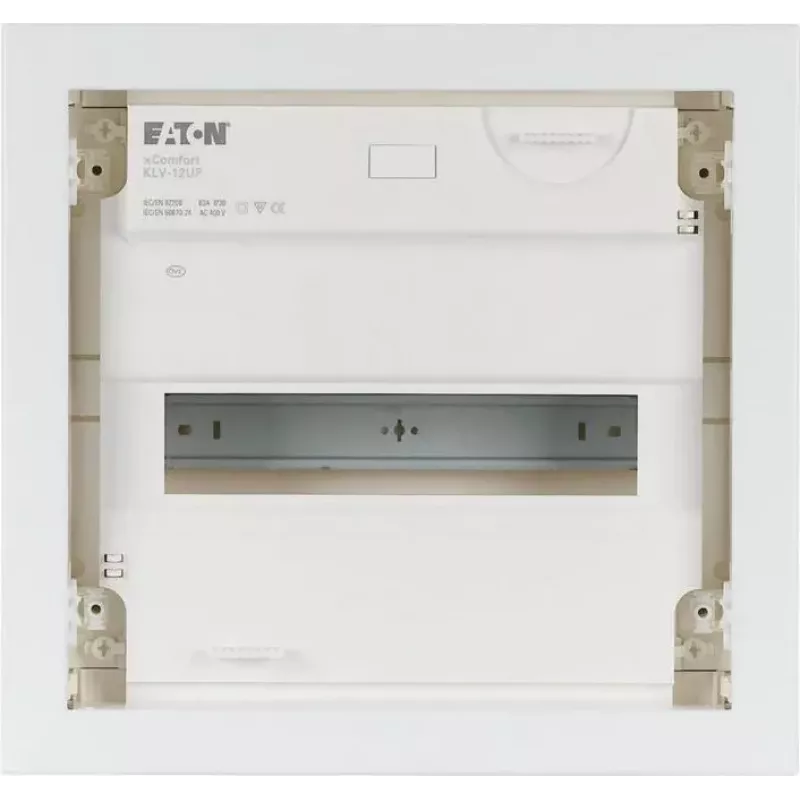

Eaton KLV-12UPP-F armario de distribución de superficie, 12 módulos, 1 fila, IP30, blanco 178798

The Eaton KLV-12UPP-F distribution board offers a rated insulation voltage of 400 V AC and a rated current of up to 63 A, making it suitable for a wide range of indoor electrical installations. Its surface-mounted design and 12 module units in a single row provide flexibility for circuit breaker and residual current device configurations.

Overview

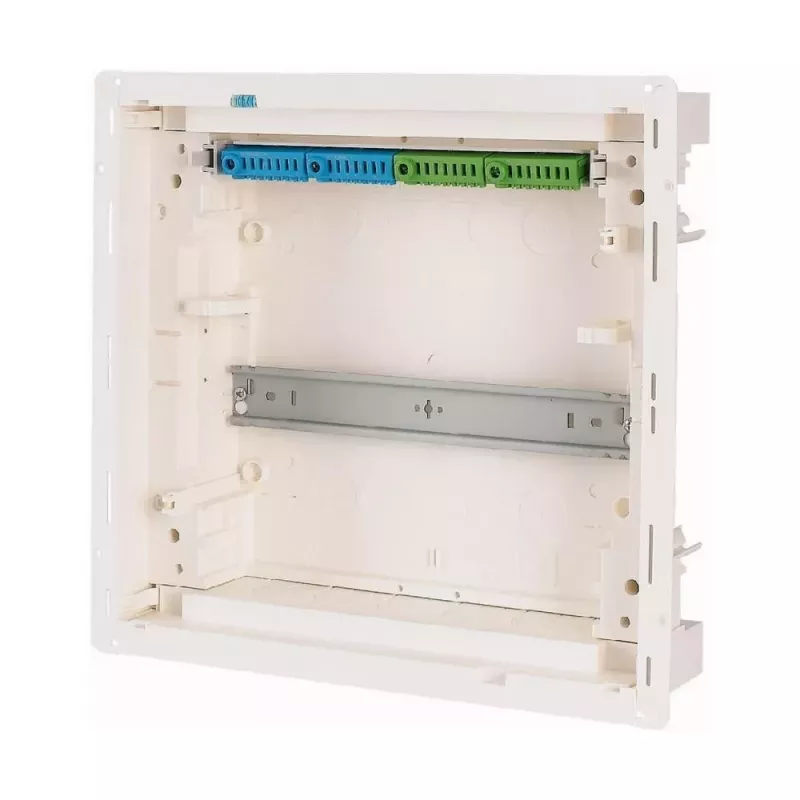

This distribution board is constructed from white polystyrene (RAL 9016) and features an opaque door. It is halogen-free and has passed a glow wire test at 850 °C, ensuring enhanced fire safety. The board includes N and PE terminal blocks for straightforward wiring.

What stands out

• 12 module units (PLE) in one row for compact installations
• Surface-mounted (Aufputz) design for easy installation on walls
• IP30 ingress protection suitable for indoor use
• Impact resistance IK05 for durability
• Halogen-free material reduces toxic smoke in case of fire

Technical details

• Mounting type: Surface-mounted
• Number of module units: 12
• Number of rows: 1
• Ingress protection: IP30
• Material: Plastic (polystyrene)
• Colour: White (RAL 9016)
• Door type: Opaque
• Rated insulation voltage: 400 V AC
• Rated current: Up to 63 A
• Glow wire test: 850 °C
• Halogen-free: Yes
• N/PE terminal blocks: Included (1x N, 1x PE)
• Standards: DIN VDE 0603-1, DIN 43871
• Application environment: Indoor
• Operating temperature range: -5 °C to +40 °C
• Impact resistance: IK05

Our verdict

The Eaton KLV-12UPP-F is a reliable and safe choice for residential and commercial electrical distribution, offering a balance of capacity, protection, and ease of installation.
