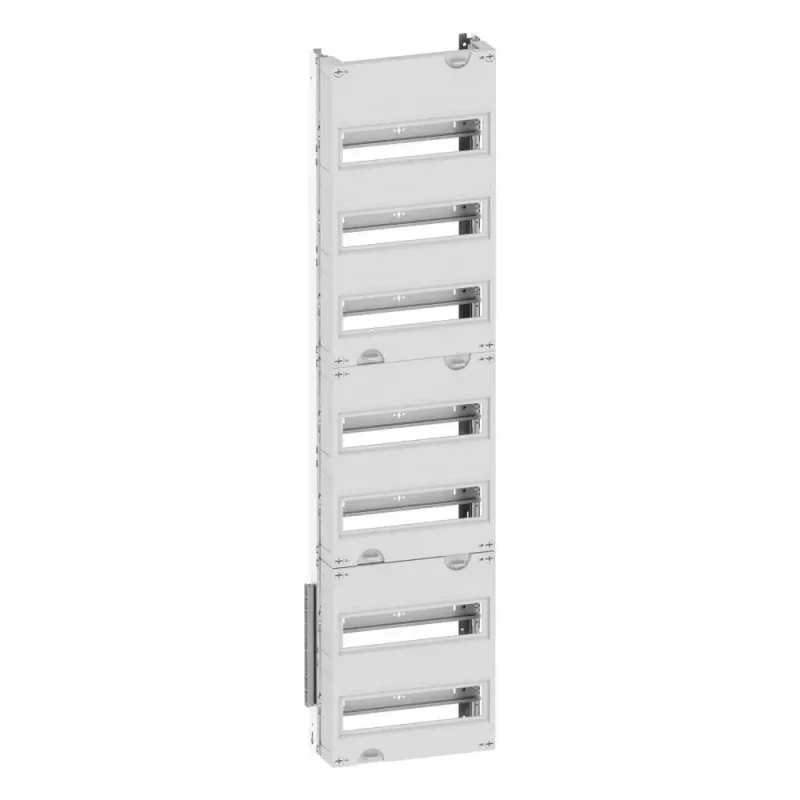

EATON ZSD-V17 Cuadro de distribución, 7 filas, 84 módulos, acero galvanizado, H1050 mm

Electricians and panel builders working on residential or commercial distribution boards will find the EATON ZSD-V17 distribution field a reliable backbone for organizing DIN rail devices. This 7-row unit provides 84 module slots (12 per row) in a compact galvanized steel frame, ready to integrate with Eaton xEnergy Light systems. The integrated PE/N busbar simplifies wiring, while the 63 A rated current and IP20 protection ensure safe operation inside meter cabinets or enclosures. With a height of 1050 mm, width of 250 mm, and installation depth of 130 mm, it fits standard vertical mounting spaces. Compliance with DIN VDE 0603-1 and DIN 43870-1 guarantees adherence to German installation standards.

Key specifications

• Number of rows: 7
• Modules per row: 12 (total 84 TE)
• Mounting type: for meter cabinets / distribution boards
• Busbar system: integrated PE/N busbar
• Rated current (max): 63 A
• Material: galvanized steel sheet
• Protection class (internal): IP20
• Standards compliance: DIN VDE 0603-1, DIN 43870-1
• System compatibility: Eaton xEnergy Light
• Installation orientation: vertical
• Dimensions: height 1050 mm, width 250 mm, depth 130 mm

Why choose it

The galvanized steel construction offers durability and corrosion resistance, making it suitable for long-term use in various environments. The pre-installed PE/N busbar reduces installation time and ensures consistent grounding. Its modular design accommodates a wide range of DIN rail devices, providing flexibility for future expansions. As part of the Eaton xEnergy Light system, it integrates seamlessly with other components for a cohesive electrical installation.

Ideal use cases

• Residential distribution boards requiring organized DIN rail mounting
• Commercial meter cabinets needing a compact, high-density solution
• Projects where quick installation and reliable grounding are priorities
• Upgrades or expansions in existing Eaton xEnergy Light installations

Good to know

The ZSD-V17 is designed for vertical installation and is intended for use inside enclosures with an IP20 internal protection rating. Screw terminals are provided for PE/N connections. The galvanized finish gives it a metallic appearance. Always ensure compatibility with your enclosure dimensions and electrical requirements before installation.
