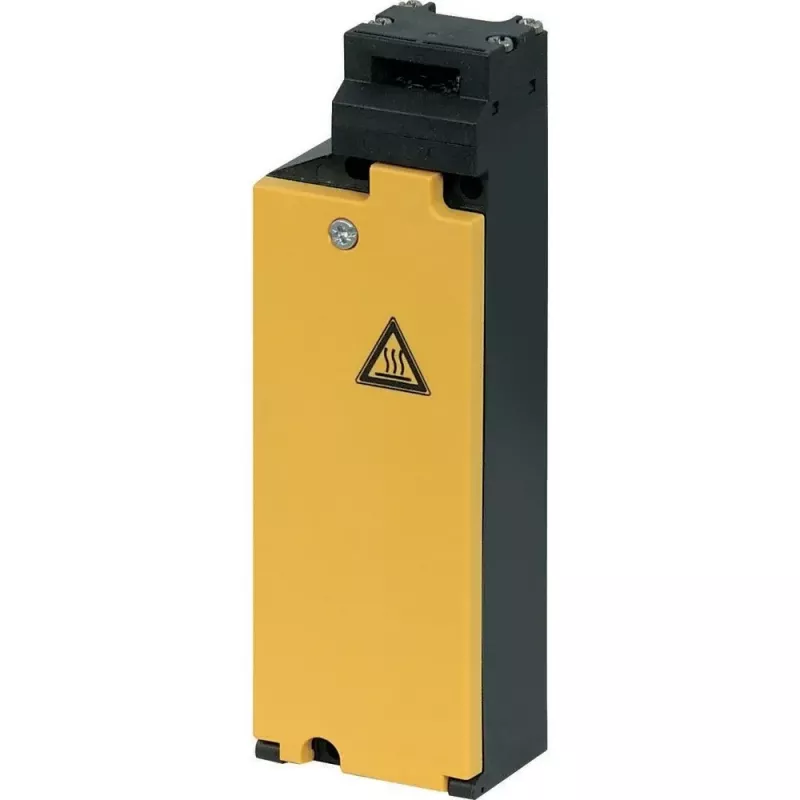

Eaton LS-Titan interruptor de posición de seguridad, enclavamiento por resorte, actuador separado, 24 V DC, 3 A, IP65, LS-S11-24DFT-ZBZ/X 106829

The Eaton LS-Titan safety position switch provides robust monitoring of movable guards with a spring-force interlocking mechanism and a separate actuator. Its glass-fibre reinforced thermoplastic housing ensures durability in industrial environments, while the IP65 rating protects against dust and water jets.

Advantages

With a mechanical life exceeding 1 million operations and an operating temperature range of -25 to +70 °C, this switch is built for demanding applications. The spring-force interlocking principle (power to unlock) ensures that the guard remains locked until the machine is in a safe state, supporting safety levels up to PL e / Category 4 according to EN ISO 13849-1 and SIL 3 according to IEC 61508.

Suitable for

• Monitoring safety guards on machinery and equipment
• Applications requiring high safety integrity levels
• Industrial automation and process control systems

Key specifications

• Rated operational voltage: 24 V DC
• Rated operational current: 3 A (DC-13)
• Contact configuration: 1 NO + 1 NC (position monitoring) + 1 NC (locking monitoring)
• Connection type: Screw terminals
• Cable entry: M20 x 1.5
• Housing material: Glass-fibre reinforced thermoplastic
• Ingress protection: IP65

Recommendations

For installations requiring a separate actuator and reliable guard locking, the LS-S11-24DFT-ZBZ/X offers proven performance and compliance with international safety standards.
