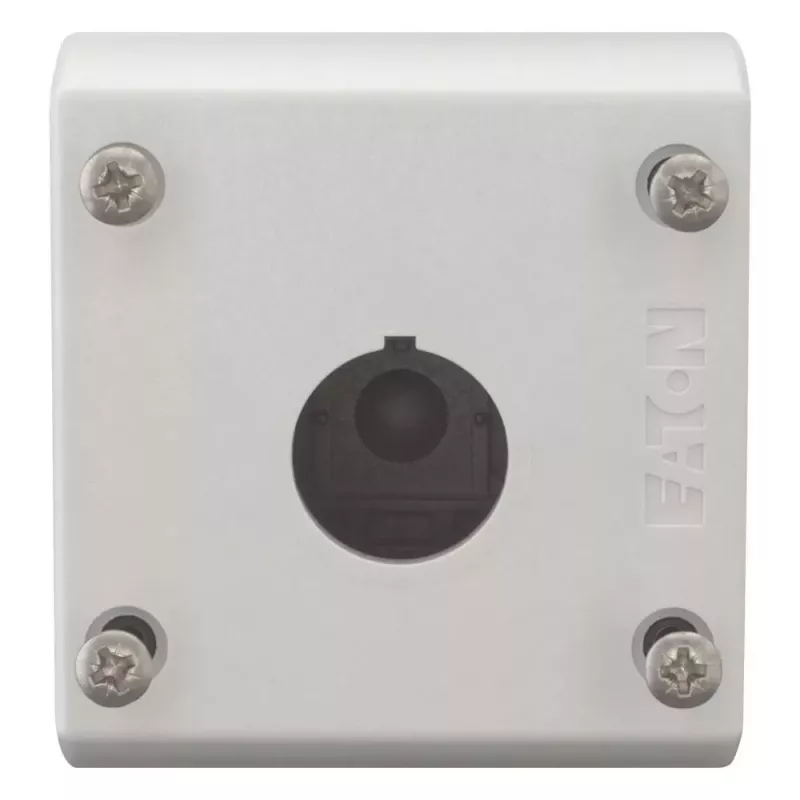

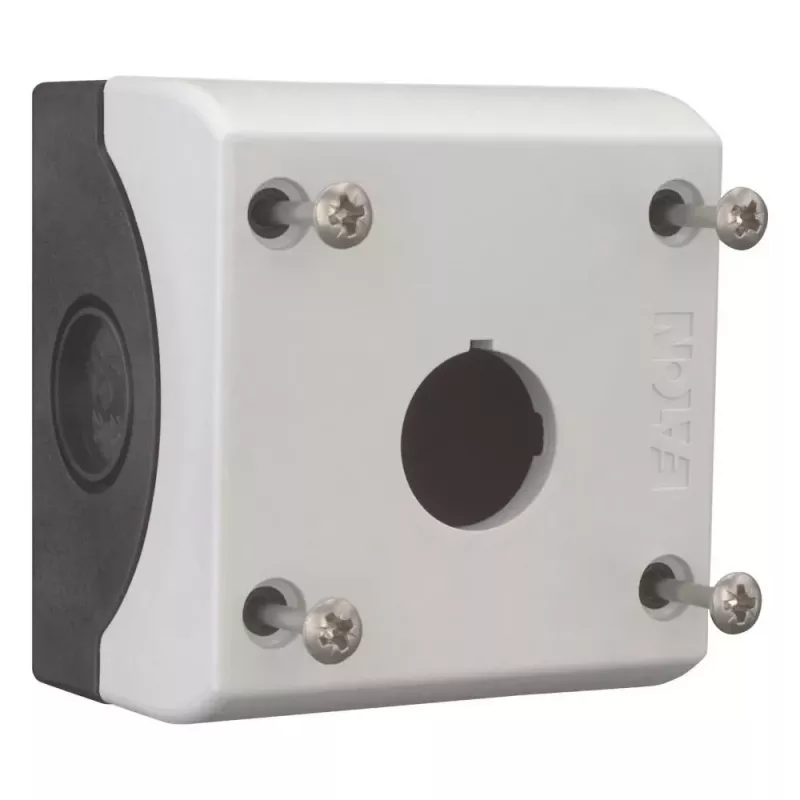

Eaton M22-I1 carcasa vacía de superficie, 1 posición, gris RAL 7035, IP66, 80 x 72 x 56 mm

Industrial control devices need a robust, weatherproof housing that shields them from dust, moisture, and mechanical impact. The Eaton M22-I1 empty enclosure provides a reliable solution for mounting a single 22.5 mm control device—such as a pushbutton, indicator light, or selector switch—directly onto a flat surface. Its compact footprint and base mounting design make it ideal for machine panels, conveyor systems, and industrial equipment where space is limited but protection is critical.

Who is it for

This enclosure is intended for electrical engineers, panel builders, and maintenance technicians who require a durable, IP66-rated housing for a single control device. It is particularly suited for applications in food processing, packaging, material handling, and other industrial environments where washdowns or dusty conditions are common. The M22-I1 is also a practical choice for retrofitting existing machinery with additional control points without the need for a full control panel.

Main features

• Accommodates one 22.5 mm control device from the Eaton M22 series
• High protection rating: IP66 and NEMA 4X, 13 for reliable sealing against dust and water jets
• Made from impact-resistant polycarbonate (IK08) with UL 94 V-0 flammability rating
• Light grey colour (RAL 7035) blends with standard industrial equipment
• Base mounting with no pre-drilled cable entries, allowing custom drilling for cable glands or conduits
• Compact dimensions: 80 x 72 x 56 mm (L x W x H) for space-saving installation

Specifications

• Brand: Eaton
• Model: M22-I1
• MPN: 216535
• EAN: 4015082165352
• Enclosure Type: Empty Enclosure
• Number of Mounting Positions: 1
• Mounting Type: Base Mounting / Surface Mounting
• Material: Polycarbonate (PC)
• Colour: Grey (RAL 7035)
• Protection Rating: IP66
• NEMA Rating: NEMA 4X, 13
• Impact Resistance: IK08
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -25 to +70 °C
• External Dimensions (L x W x H): 80 x 72 x 56 mm
• Cable Entry: No pre-drilled holes (user-configurable)
• Cover Type: Solid
• Standards: IEC/EN 60529, IEC/EN 62208

Tips

For optimal sealing, use appropriate cable glands or conduit fittings when drilling custom entry holes. Ensure the mounting surface is flat and clean to maintain the IP66 rating. Pair with Eaton M22 series control devices for a perfect fit and reliable performance.
