WAGO 221-500 Soporte de montaje para bornes de conexión serie 221, poliamida, naranja, 17,5 mm x 25,5 mm x 77,6 mm

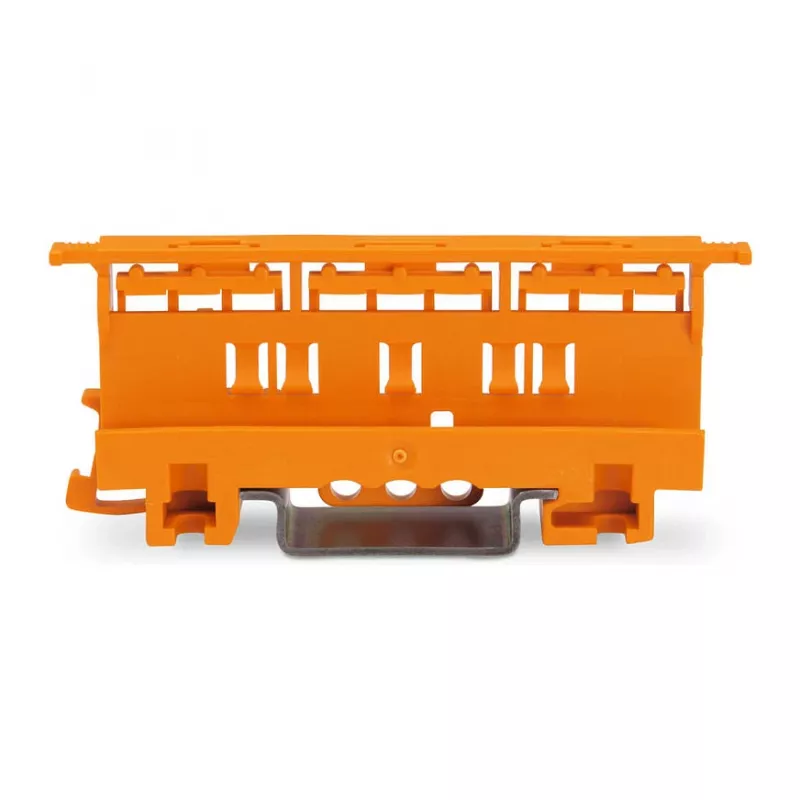

The WAGO 221-500 Mounting Carrier is a high-quality accessory designed for use with WAGO 221 Series Splicing Connectors. It provides a secure and organized mounting solution for up to 5 poles, making it ideal for electrical installations in control cabinets and junction boxes. The carrier is made from durable polyamide (PA 66) with a distinctive orange color, ensuring easy identification and long-lasting performance.

Advantages

This mounting carrier offers several key benefits: integrated strain relief for secure cable management, flexible configuration to accommodate 2-conductor, 3-conductor, or 5-conductor connectors, and easy snap-in mounting on DIN-rail (TS 35) or screw mounting. Its compact dimensions (17.5 mm width, 25.5 mm height, 77.6 mm depth) save space while maintaining robust performance. The material is flame retardant (UL 94 V-0) and suitable for a wide operating temperature range from -35 °C to +85 °C.

Suitable for

• Electrical installations in control cabinets
• Junction boxes and distribution boards
• Industrial automation and building technology
• Applications requiring reliable strain relief and connector organization

Key specifications

• Product Type: Mounting Carrier
• Series Compatibility: WAGO 221 Series Splicing Connectors
• Supported Connector Types: 2-conductor, 3-conductor, 5-conductor
• Mounting Options: DIN-rail (TS 35), Screw Mounting
• Material: Polyamide (PA 66)
• Color: Orange
• Operating Temperature: -35 °C to +85 °C
• Flammability Rating: UL 94 V-0
• Insulation Group: II (IEC 61140)
• Environmental Compliance: RoHS, REACH
• Dimensions (W x H x D): 17.5 mm x 25.5 mm x 77.6 mm
• Number of Poles Supported: Up to 5 poles

Recommendations

For optimal performance, pair the WAGO 221-500 Mounting Carrier with WAGO 221 Series Splicing Connectors. Ensure proper installation on a DIN-rail or screw mounting surface. This accessory is designed for professional use and should be installed by qualified personnel.
