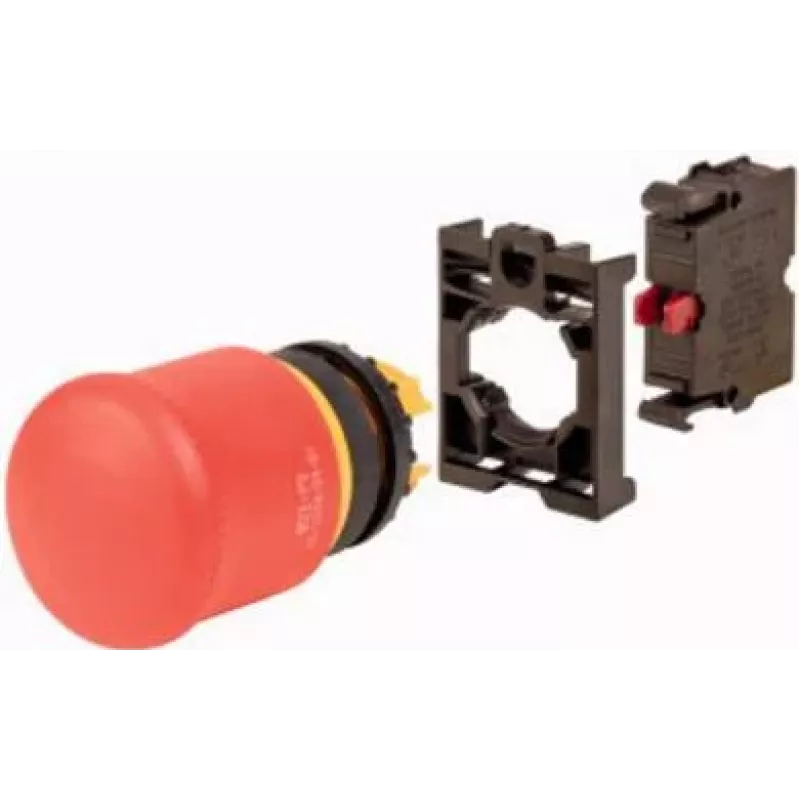

Eaton M22-PV-K01-BVP pulsador de parada de emergencia, 1 NC, desenclavamiento por tracción, IP66 110938

The Eaton M22-PV-K01-BVP stands out with its pull-to-release mushroom head, which prevents accidental resets and keeps machinery safely stopped until a deliberate action is taken. This emergency stop pushbutton is built for harsh industrial environments, offering front protection up to IP69K.

Highlights

• Pull-to-release mushroom head for secure latching
• Front protection IP66, IP67, IP69K
• 1 normally closed (NC) contact
• 22.5 mm mounting diameter
• Red mushroom head with yellow background

In daily use

Install this emergency stop in control panels or machines where a reliable stop function is critical. The red mushroom head is easily identifiable, and the yellow background enhances visibility. The pull-to-release mechanism ensures that the button must be intentionally reset before the machine can restart.

Full specifications

• Product type: Emergency Stop Pushbutton
• Actuator type: Mushroom head
• Release mechanism: Pull-to-release
• Contact configuration: 1 NC
• Mounting diameter: 22.5 mm
• Ingress protection (front): IP66, IP67, IP69K
• Ingress protection (terminals): IP20
• Colour: Red mushroom head, yellow background
• Legend: EMERGENCY STOP
• Series: Eaton M22
• Rated operational voltage: up to 500 V AC
• Rated operational current: max. 6 A (AC-15, 230 V)
• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 6 kV
• Terminal type: Screw terminals
• Mechanical durability: >100,000 operations
• Ambient operating temperature: -25 to +70 °C
• Housing material: Plastic

Final note

Designed for demanding applications, this emergency stop provides dependable performance and long service life.
