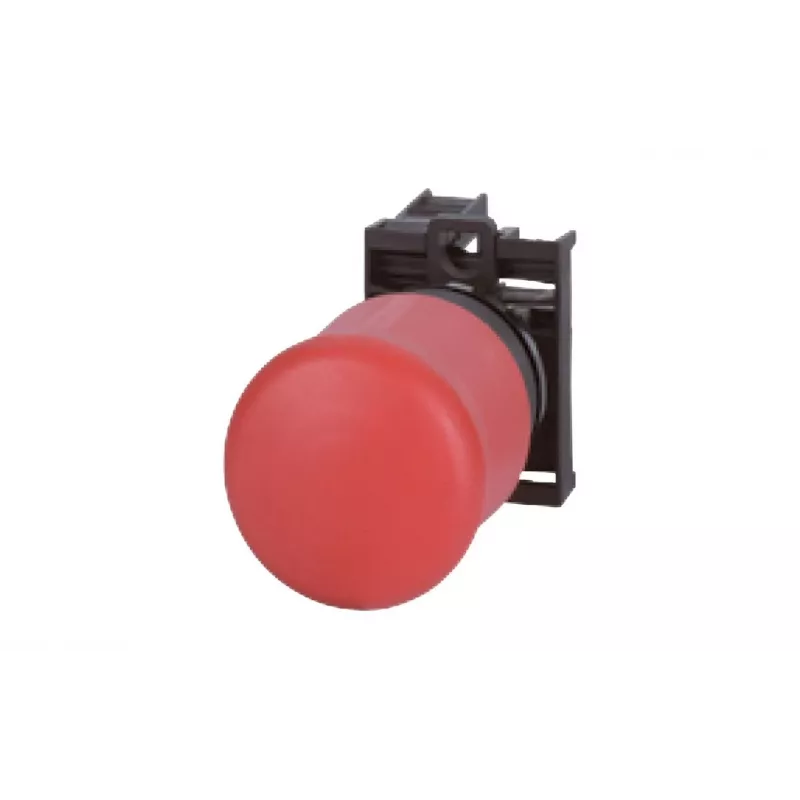

Eaton M22-PV/K01 pulsador de parada de emergencia, seta roja de 38 mm, desbloqueo por tracción, 1 contacto NC 216515

The Eaton M22-PV/K01 emergency stop pushbutton features a robust 38 mm red mushroom head with pull-release mechanism, ensuring reliable and quick machine shutdown in critical situations. With an IP66/IP67/IP69K front protection rating, it withstands harsh industrial environments, including high-pressure washdowns.

Overview

Part of the Eaton M22 series, this non-illuminated emergency stop button is designed for panel mounting in a 22.5 mm hole. It includes one normally closed (NC) contact block with screw terminals, rated for operational voltages up to 500 V AC and currents up to 6 A at 230 V AC. The plastic housing ensures durability and light weight.

What stands out

• Large 38 mm mushroom head for easy activation in emergencies
• Pull-release mechanism prevents accidental reset
• High front protection: IP66, IP67, IP69K
• Wide operating temperature range: -25 to +70 °C
• Mechanical life exceeds 100,000 operations

Technical details

• Product type: Emergency stop pushbutton
• Series: Eaton M22
• Actuator type: Mushroom head
• Mushroom head diameter: 38 mm
• Colour: Red
• Release mechanism: Pull-release
• Illumination: Non-illuminated
• Contact configuration: 1 NC
• Mounting hole diameter: 22.5 mm
• Front protection rating: IP66, IP67, IP69K
• Rear protection rating: IP20 (with contact block)
• Terminal type: Screw terminals
• Rated operational voltage (Ue): 500 V AC
• Rated operational current (Ie): 6 A at 230 V AC
• Operating temperature range: -25 to +70 °C
• Mechanical life: > 100,000 operations
• Housing material: Plastic
• Mounting method: Panel mount

Our verdict

A reliable and rugged emergency stop solution for industrial control panels, offering high protection and long mechanical life.
