Eaton M30C-FDRL-W Accionador de pulsador redondo plano, anillo decorativo cromado, blanco 182950

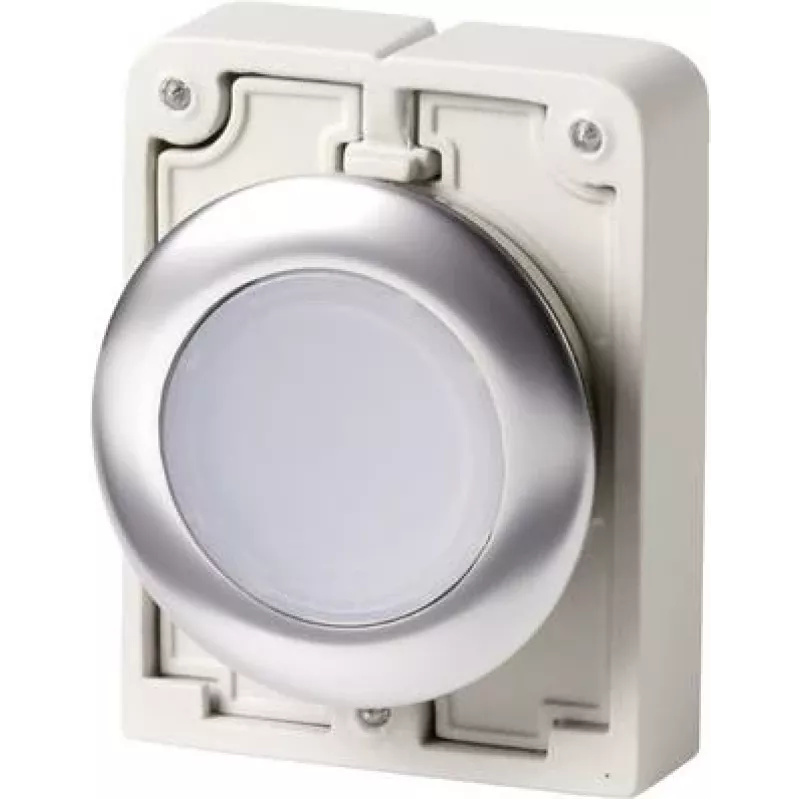

This Eaton RMQ-Titan pushbutton actuator stands out with its flat, round profile and chrome-plated metal bezel, providing a sleek, modern appearance for industrial control panels. The white actuator face offers clear visual contrast and is designed for momentary operation.

Highlights

• Flat, round actuator design with chrome metal bezel
• White actuator color for high visibility
• Panel mount with 30.5 mm mounting diameter
• Compatible with Eaton RMQ-Titan contact blocks and holders
• Non-illuminated, momentary operation

In daily use

This actuator is intended for use in control circuits where a robust and reliable pushbutton is required. It mounts into a standard 30.5 mm panel cutout and accepts compatible RMQ-Titan contact blocks (sold separately). The flat design reduces accidental activation while remaining easy to press when needed. The chrome bezel resists corrosion and maintains its appearance in demanding environments.

Full specifications

• Product Type: Pushbutton Actuator
• Actuator Type: Flat, Round
• Actuator Color: White
• Bezel Material: Metal
• Bezel Color: Chrome
• Mounting Diameter: 30.5 mm
• Series: Eaton RMQ-Titan (M30)
• Operation Type: Momentary
• Illumination: Non-illuminated
• Degree of Protection (Front): IP66, IP67, IP69K
• NEMA Protection Rating: NEMA 4X, 13
• Operating Temperature Range: -25 to +70 °C
• Mechanical Life: > 5 million operations
• Standards: IEC/EN 60947, VDE 0660
• Compatibility: RMQ-Titan Contact Blocks and Holders
• Number of Actuating Positions: 1
• Mounting Method: Panel Mount

Final note

For a complete pushbutton assembly, pair this actuator with a compatible RMQ-Titan contact block and holder.
