Eaton T0-2-15679/I1/SVB interruptor principal 20A 3 polos de superficie con parada de emergencia 207149

In industrial environments, the ability to quickly disconnect power is critical for both safety and maintenance. The Eaton T0-2-15679/I1/SVB main switch provides a reliable manual disconnect solution with an integrated emergency stop function, ensuring that machinery can be safely isolated when needed.

Who is it for

This switch is intended for panel builders, machine manufacturers, and maintenance personnel who need a robust, surface-mounted main switch with emergency stop capabilities for industrial control circuits.

Main features

• 3-pole main switch with 20A rated current at 400V

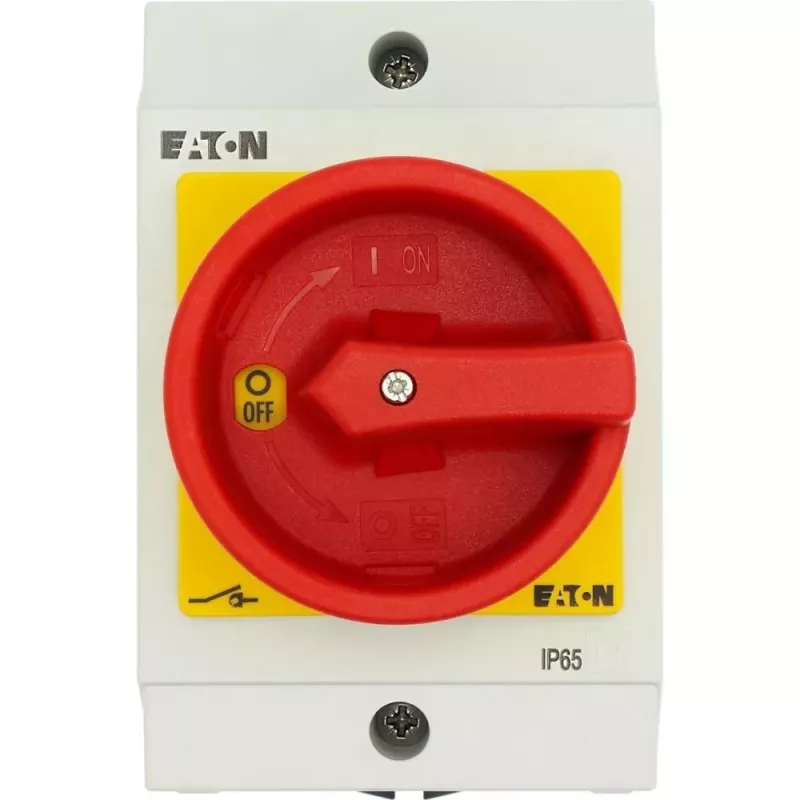

• Integrated emergency stop function with red rotary handle and yellow locking ring
• Lockable in 0-position with up to 3 padlocks for safe isolation

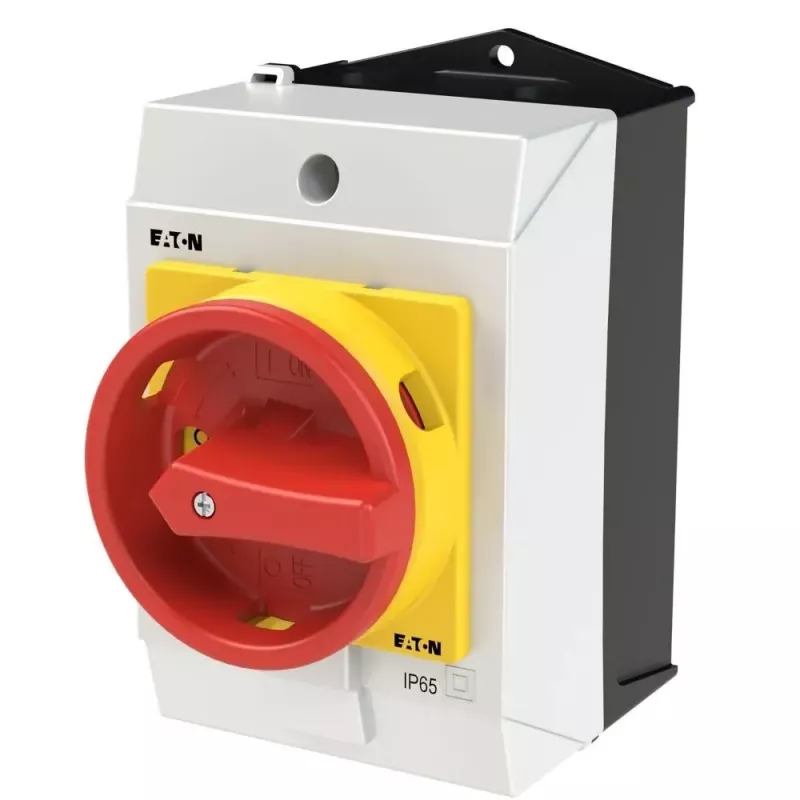

• Surface mounting in insulated grey enclosure, IP65 protection
• 1 normally open auxiliary contact for status signaling

Specifications

• Switch type: Main switch / Emergency stop switch
• Rated operational current (Ie): 20 A at 400 V
• Number of poles: 3
• Auxiliary contacts: 1 NO

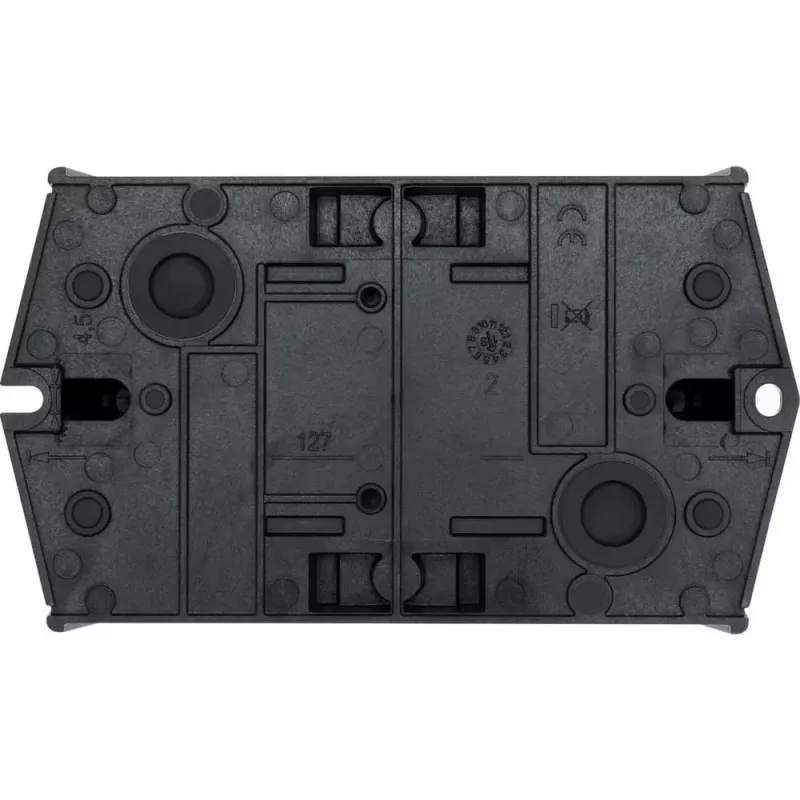

• Mounting: Surface mounting (enclosed)
• Degree of protection: IP65
• Rated insulation voltage (Ui): 690 V
• Rated operational voltage (Ue): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit making capacity (Icm): 1 kA
• Rated short-circuit breaking capacity (Icn): 1 kA
• Rated short-time withstand current (Icw): 320 A for 1 s
• Actuator: Red rotary handle with yellow locking ring
• Locking capability: Lockable in 0-position (up to 3 padlocks)
• Switching angle: 90°
• Terminal capacity: 1 x (1.5 - 6) mm² / 2 x (1.5 - 2.5) mm²
• Enclosure material: Insulated plastic
• Enclosure colour: Grey

Tips

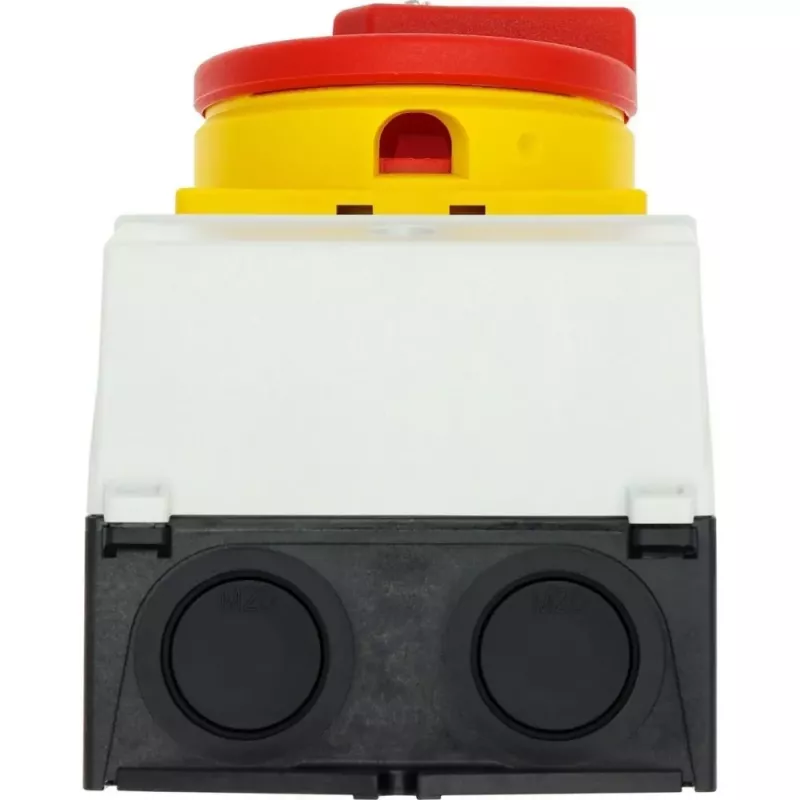

When installing, ensure the switch is mounted in an easily accessible location for emergency operation. Use appropriate cable glands to maintain the IP65 rating.
