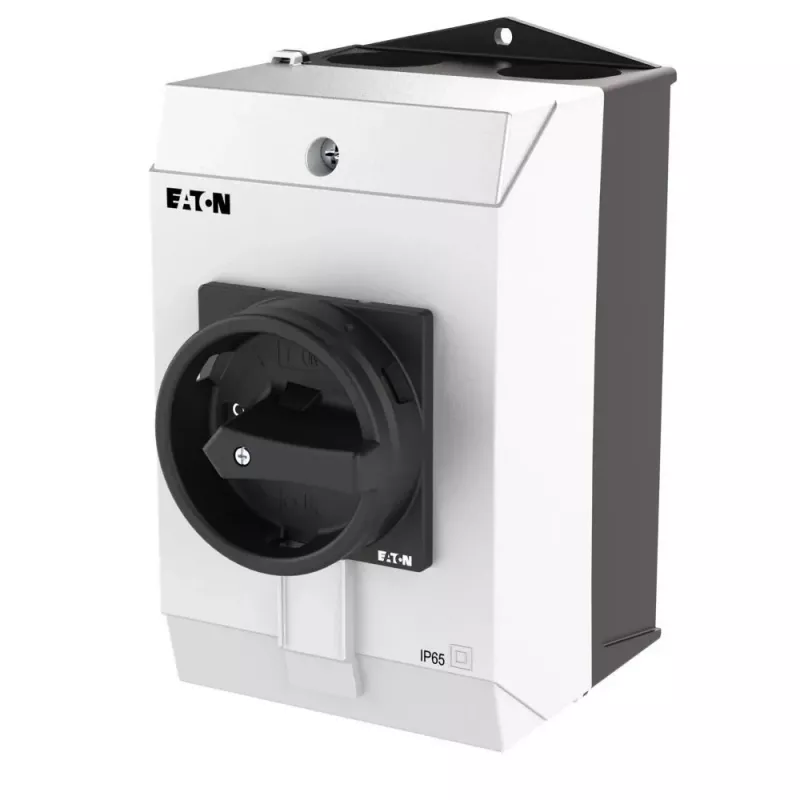

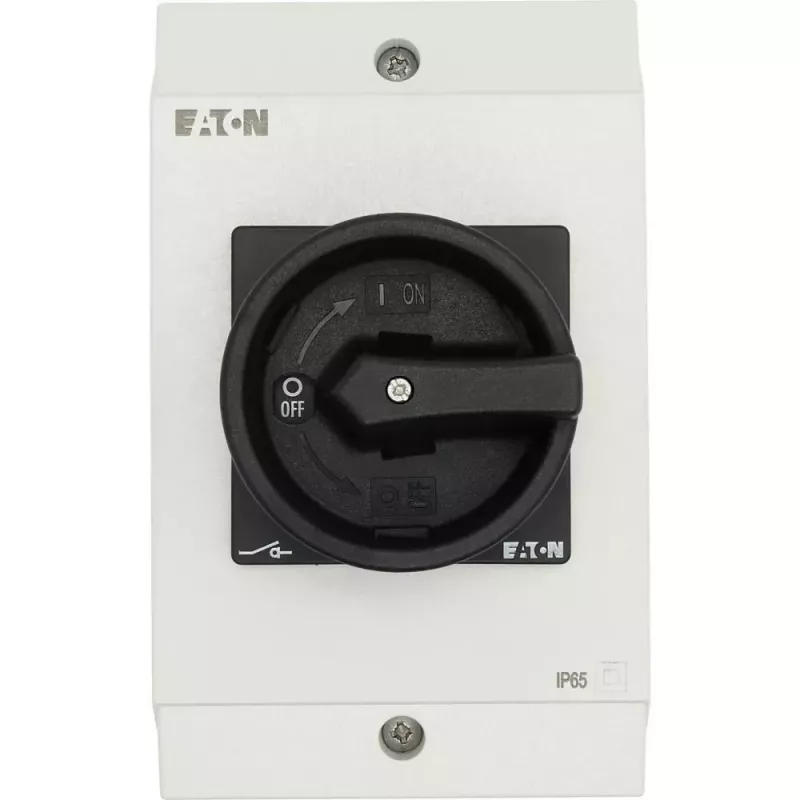

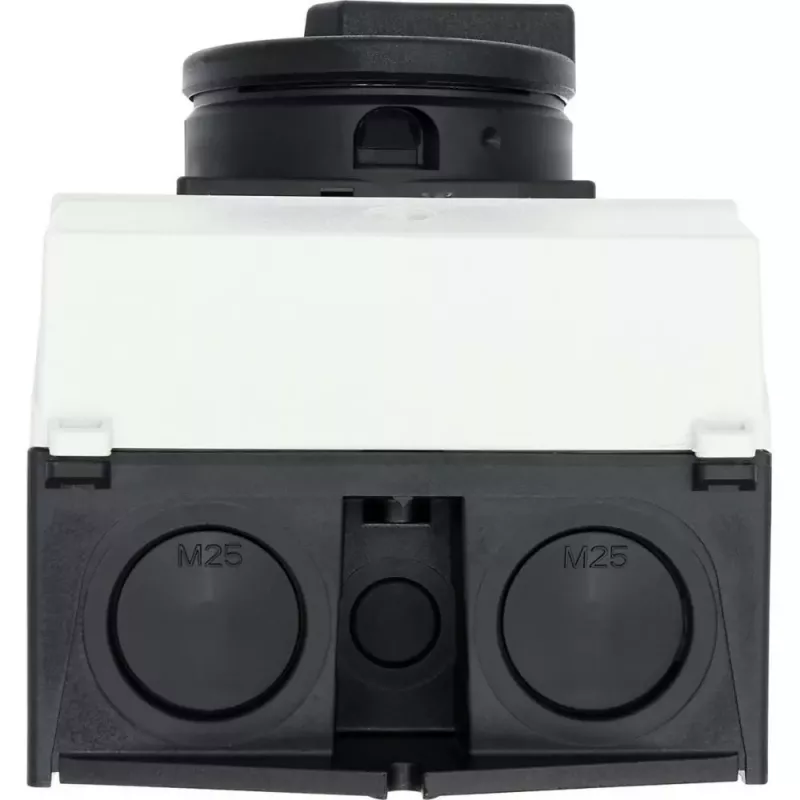

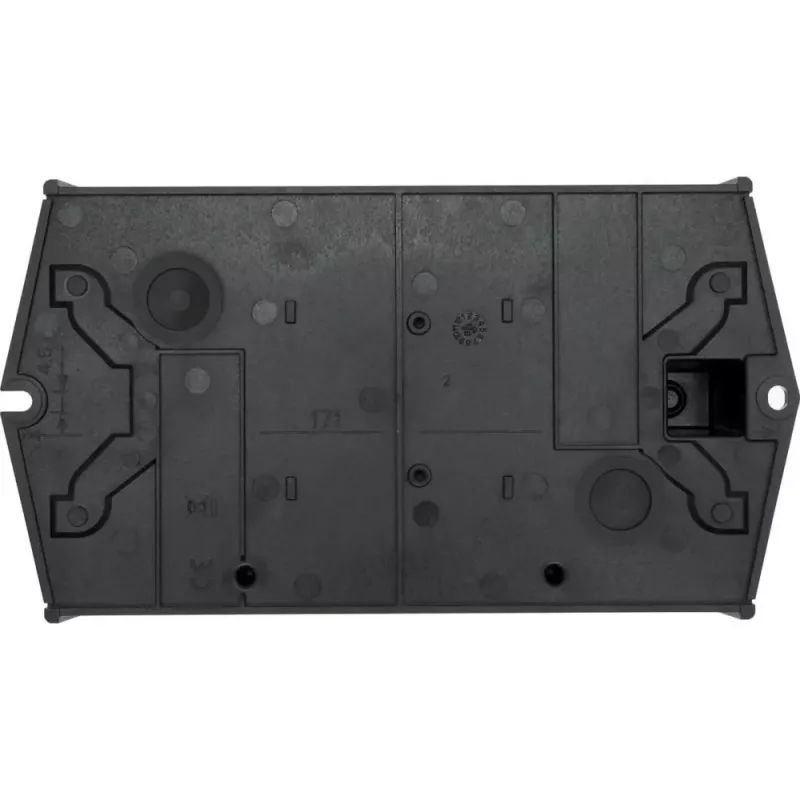

Eaton T3-4-15682/I2/SVB-SW interruptor de levas de 6 polos, 32 A, 690 V AC, montaje empotrado, empuñadura negra/placa frontal blanca 207211

Industrial control panels and machine circuits need a reliable main switch that can isolate power safely and withstand harsh environments. The Eaton T3-4-15682/I2/SVB-SW is a 6-pole cam switch rated for 32 A at 690 V AC, providing a robust ON/OFF disconnection solution for demanding applications.

Who is it for

This switch is intended for panel builders, machine OEMs, and maintenance technicians who require a compact, high-performance switch-disconnector for motor control, power distribution, and safety isolation in industrial settings.

Main features

• 6-pole configuration for multi-circuit switching
• Rated uninterrupted current of 32 A and operational voltage up to 690 V AC
• High short-circuit withstand: rated short-circuit making capacity 0.64 kA, rated short-circuit current 1 kA
• Front protection degree IP65, suitable for dusty or wet environments
• Flush mounting design with 90° switching angle and clear ON/OFF positions
• Screw terminals accept conductors up to 1 x 6 mm² or 2 x 2.5 mm²
• Black handle and white front plate for clear visual indication

Specifications

• Switch type: Main switch / Cam switch / Switch-disconnector
• Number of poles: 6
• Rated uninterrupted current (Iu): 32 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit making capacity (Icm): 0.64 kA
• Rated short-circuit current (Iq): 1 kA
• Rated operational power AC-23A (400 V): 15 kW
• Rated operational power AC-3 (400 V): 11 kW
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Mounting type: Flush mounting
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Connection type: Screw terminals
• Terminal capacity: 1 x 6 mm² or 2 x 2.5 mm²
• Operating temperature range: -25 to +50 °C

Tips

Ensure the switch is mounted in a suitable enclosure to maintain the IP65 front protection. For motor applications, verify the AC-3 or AC-23A rating matches your load. Use appropriate screwdrivers and torque settings for terminal connections.
