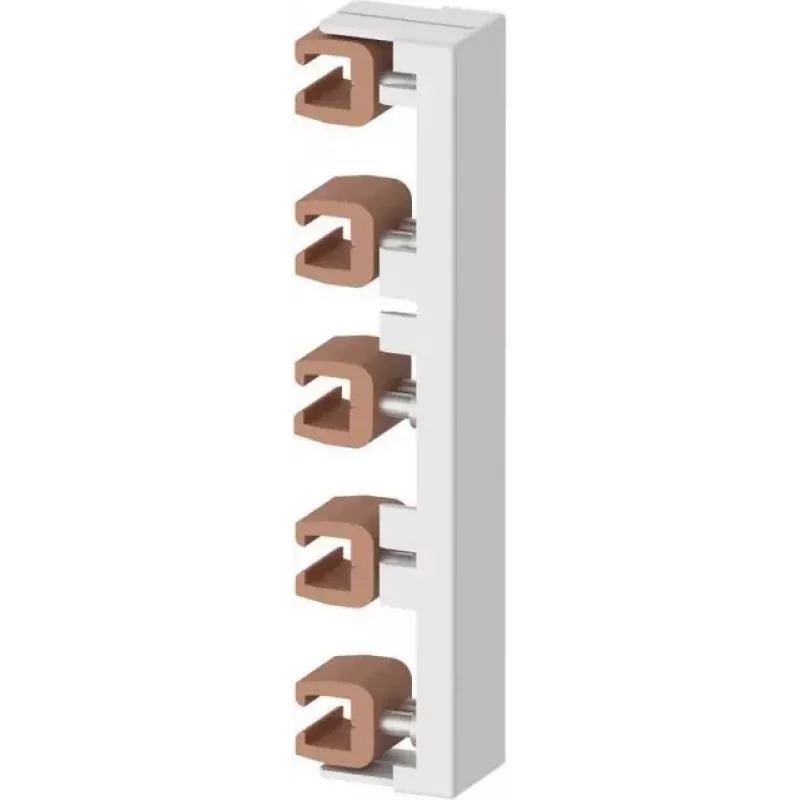

EATON ZSD-SA/VB/5P conector de barras colectoras de 5 polos, campo a campo, 690V AC 228994

Busbar connector for Eaton xEnergy low-voltage switchgear, providing a 5-pole field-to-field connection between busbar sections. The ZSD-SA/VB/5P ensures a reliable electrical and mechanical link, rated for 690 V AC operational voltage.

Advantages

Designed as a direct-fit component for xEnergy assemblies, this connector simplifies internal busbar joining. Its insulating plastic housing supports safe handling during installation.

Suitable for

• Eaton xEnergy busbar systems
• Low-voltage switchgear and controlgear assemblies
• Internal connection of busbar fields

Key specifications

• Product type: Busbar connector
• Number of poles: 5
• Connection type: Field-to-field
• Rated operational voltage: 690 V AC
• Rated insulation voltage: 1000 V AC
• Rated impulse withstand voltage: 8 kV
• Material: Insulating plastic
• Colour: Grey/Black

Recommendations

Verify compatibility with your specific xEnergy busbar configuration before ordering. Installation should be performed by qualified personnel in accordance with applicable regulations.
