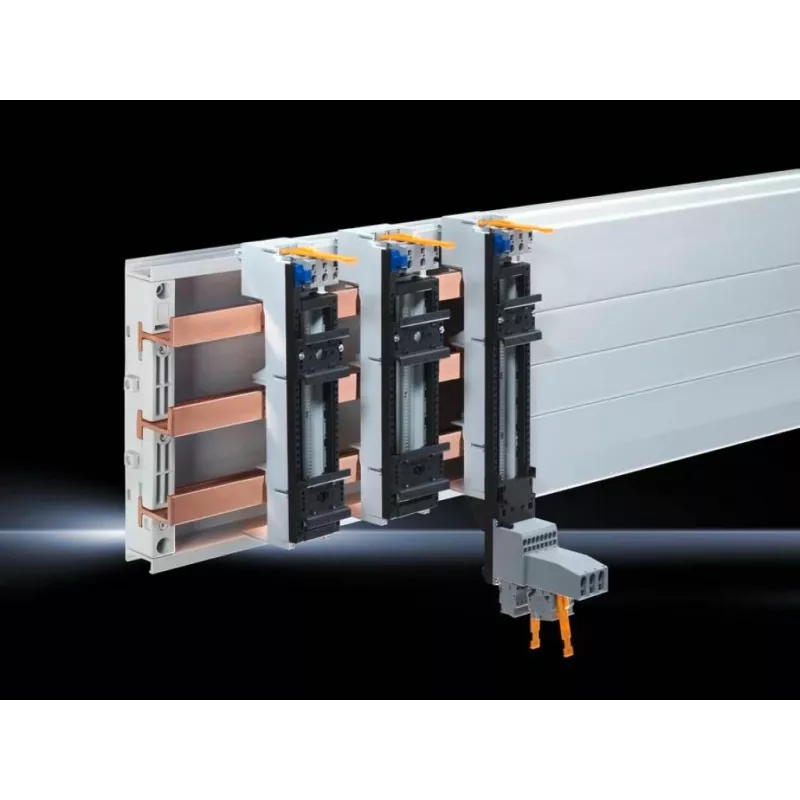

Rittal OM-Adapter SV 9340.930 Adaptador de barra colectora, 55 mm x 208 mm, Poliamida, Gris RAL 7035, para barras colectoras de 5 mm

Connecting components to busbars often requires a reliable, insulated adapter that ensures both mechanical stability and electrical safety. The Rittal OM-Adapter SV 9340.930 solves this by providing a modular connection point for Rittal SV busbar systems, specifically designed for busbars with a thickness of 5 mm.

Who is it for

This adapter is intended for panel builders and electrical installers who need to mount devices or distribution blocks onto 5 mm thick busbars within Rittal SV busbar systems. It is suitable for indoor applications where a robust, insulating connection is required.

Main features

• Compatible with Rittal SV busbar system and 5 mm thick busbars
• Made of polyamide, providing electrical insulation and good chemical and temperature resistance
• Colour: grey, RAL 7035, for a uniform appearance in enclosures
• Compact dimensions: 55 mm width, 208 mm height
• Modular design for flexible configuration

Specifications

• Brand: Rittal
• Model: 9340.930
• MPN: 9340.930
• EAN: 4028177555471
• Product type: OM-Adapter
• Application: Busbar systems
• Compatible busbar thickness: 5 mm
• Material: Polyamide
• Colour: Grey (RAL 7035)
• Width: 55 mm
• Height: 208 mm
• Mounting type: Adapter for busbar
• Function: Provides mechanical and electrical connection points for components on busbars
• Insulation properties: Insulating
• System compatibility: Rittal SV busbar system
• Environmental conditions: Indoor use
• Resistance: Good chemical and temperature resistance
• Design: Modular

Tips

Ensure the busbar thickness is exactly 5 mm for a secure fit. The polyamide material provides insulation, but always follow standard electrical safety practices during installation.
