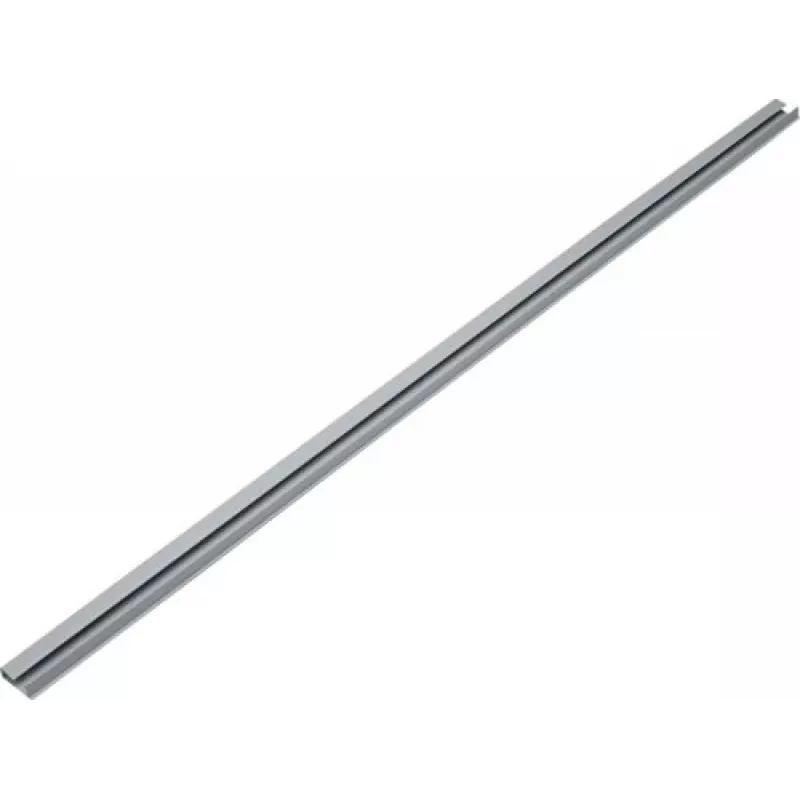

HAGER Linergy Perfil aislante para barras colectoras S941M 12x10mm 1000mm gris

In low-voltage switchgear and distribution boards, exposed busbars pose a serious risk of accidental contact and short circuits. The HAGER Linergy S941M insulating profile provides a robust solution for covering 12 x 10 mm busbars, ensuring safe operation and compliance with IEC 61439-1. Made from self-extinguishing grey plastic (RAL 7035), this 1000 mm profile clips or slides onto the busbar, creating a durable barrier against touch and environmental factors.

Key specifications

• Compatible with 12 x 10 mm busbars
• Length: 1000 mm
• Material: self-extinguishing plastic, grey (RAL 7035)
• U-shaped profile for secure mounting
• Operating temperature: -25 to 70 °C
• UV resistant and RoHS/REACH compliant

Why choose it

This profile enhances safety by preventing accidental contact with live busbars, reducing the risk of electric shock and short circuits. Its self-extinguishing material adds fire protection, while the clip-on design allows for quick installation without tools. The grey finish blends seamlessly into most enclosures, and its high dielectric strength ensures reliable insulation over time.

Ideal use cases

• Panel builders insulating busbars in distribution boards
• Switchgear manufacturers ensuring touch protection
• Maintenance teams retrofitting insulation on existing busbar systems
• Industrial control panels requiring compliance with safety standards

Good to know

The profile can be easily cut to length for custom busbar configurations. It is designed for indoor use but offers UV resistance for applications with occasional sunlight exposure. Always verify busbar dimensions before ordering to ensure a proper fit.
