EFB Caja de empalme SC OS2 extraíble 24 pigtails 12 acopladores 1U rack

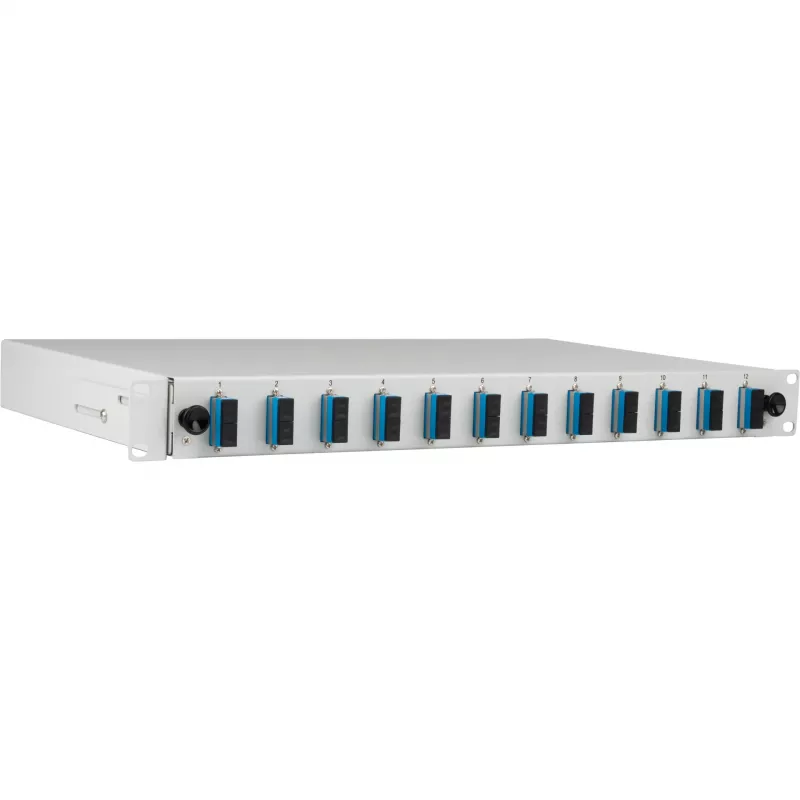

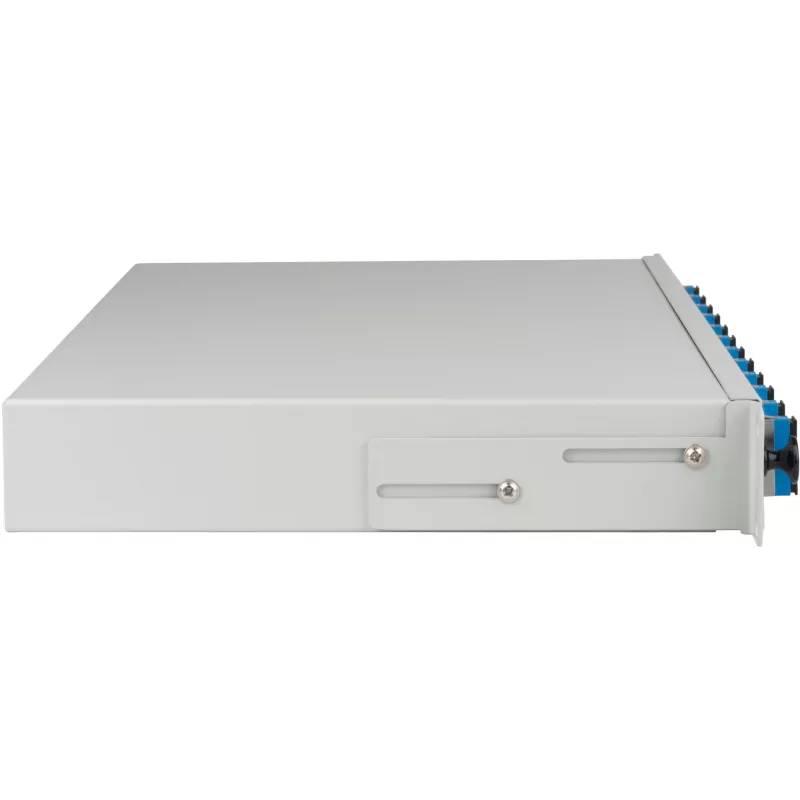

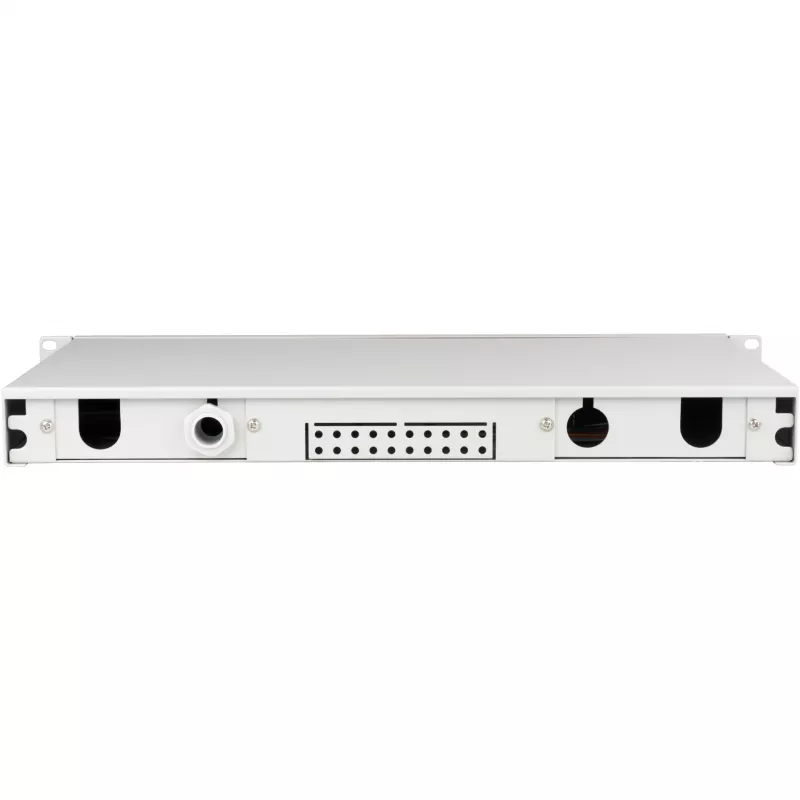

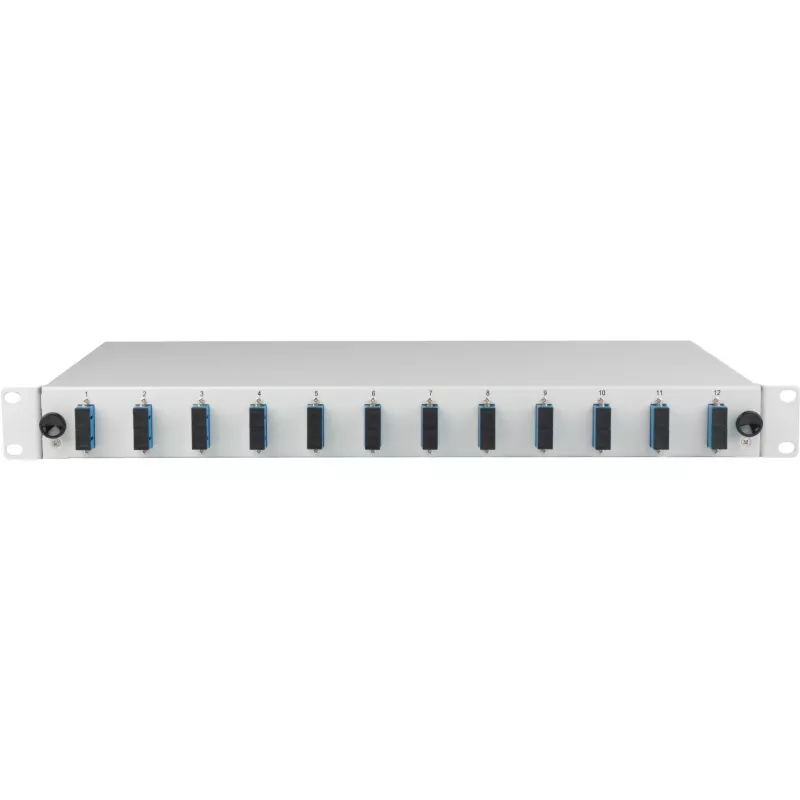

The EFB Splice Box SC OS2 is a high-quality, extendable fiber optic distribution unit designed for 19-inch rack mounting. It provides a reliable solution for splicing and terminating single-mode fibers in network distribution points, data centers, and telecommunications rooms.

Advantages

This splice box offers a space-saving 1U design with a pull-out drawer for easy access to splices and adapters. The robust steel housing with powder coating ensures durability, while the included splice protectors and mounting hardware simplify installation.

Suitable for

• Fiber optic network distribution and termination
• Splicing and patching in data centers
• Telecommunications infrastructure
• FTTH and enterprise networks

Key specifications

• Product Type: Fiber Optic Splice Box / Distribution Unit
• Mounting: 19-inch Rack, 1U
• Design: Extendable / Pull-out Drawer
• Fiber Type: Single-mode OS2 (9/125 µm)
• Pigtail Connector: SC
• Adapter Connector: SC Duplex
• Number of Pigtails: 24 (2 m length, G.657.A1)
• Number of Adapters: 12 (Duplex)
• Total Fiber Capacity: 24
• Housing Material: Steel, powder-coated
• Color: RAL 7035 (Light Grey)
• Cable Entry: Multiple (e.g., M20/M25)
• Splice Tray Capacity: Up to 24 splices (2x 12-splice trays)
• Included Accessories: Splice protectors, cable ties, mounting hardware

Recommendations

This splice box is ideal for professionals requiring a compact, organized solution for fiber splicing and distribution. Ensure compatibility with SC connectors and OS2 fiber infrastructure.
