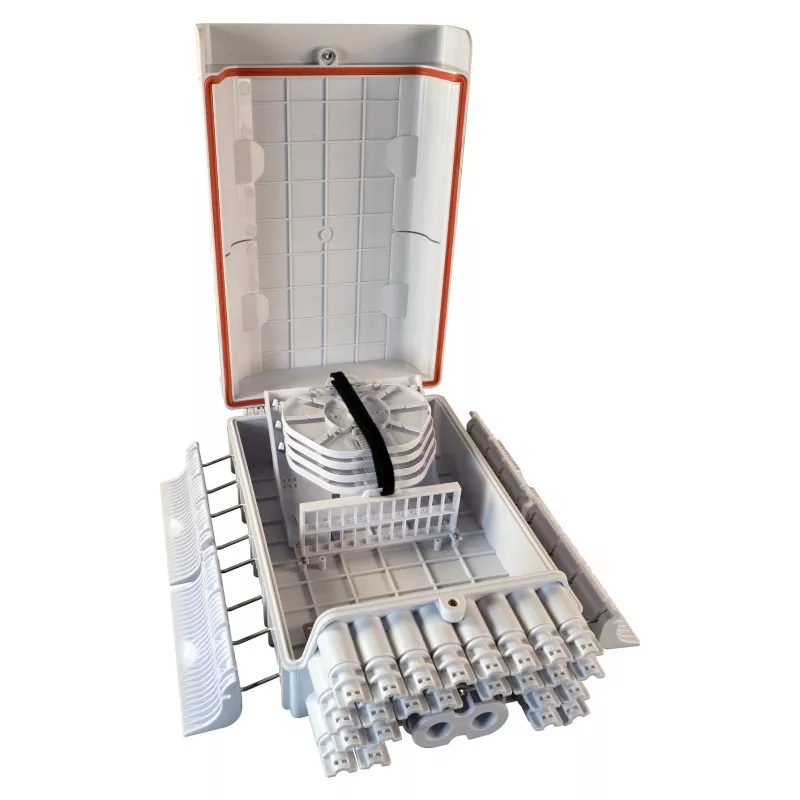

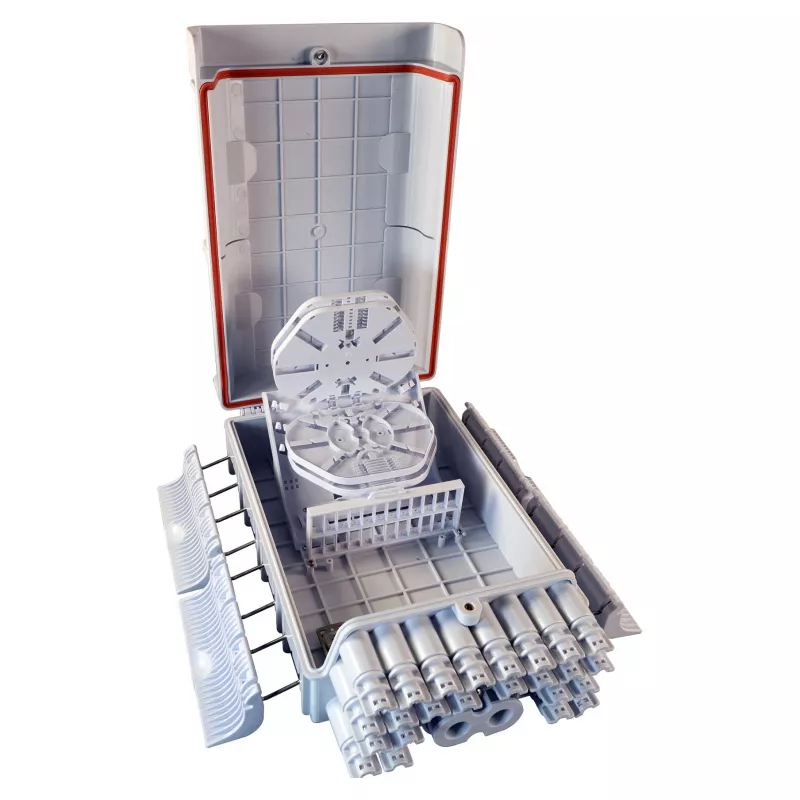

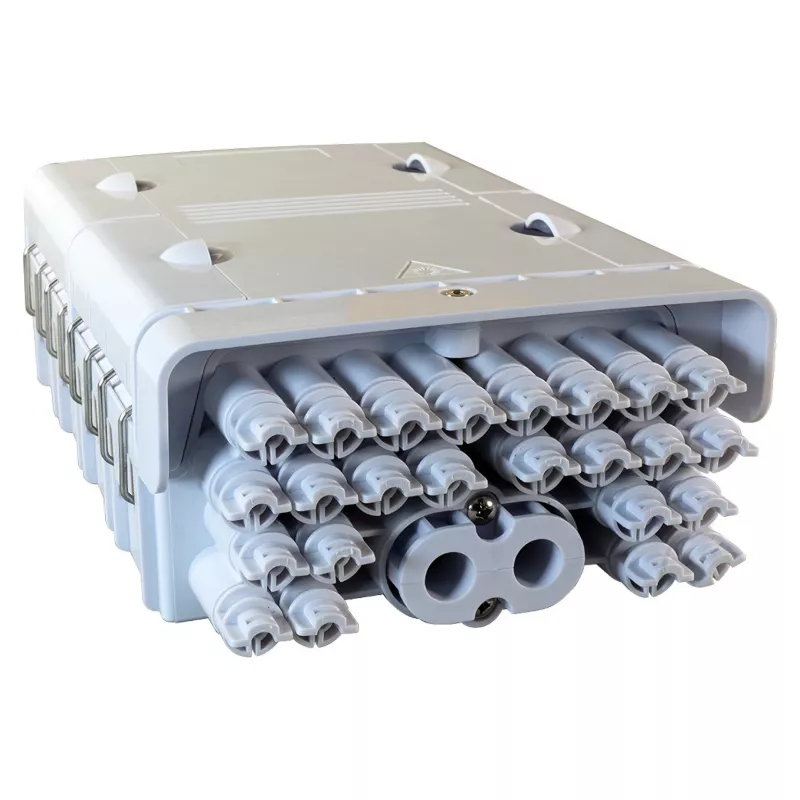

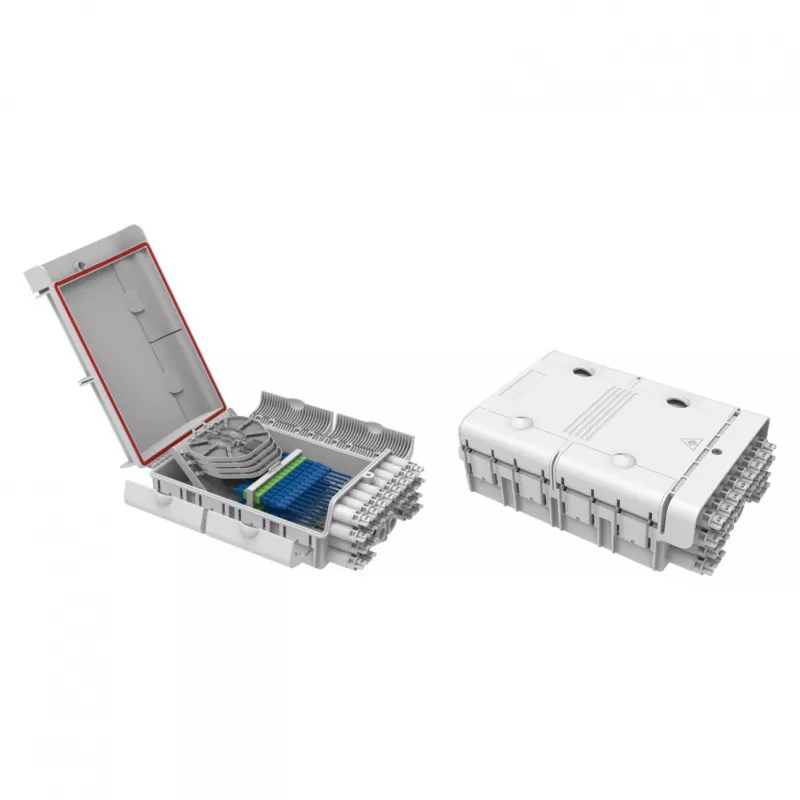

Caja de terminación de fibra óptica FTTH IP65 para exterior Fabricante FTTH-BOX-OUT-5 para 48 fibras, 24 adaptadores, cassette de empalme incluido

FTTH IP65 outdoor fiber optic distribution box for up to 48 fibers, accommodating 24 adapters and providing fiber excess storage. The enclosure is designed for optical telecommunication networks including FTTH, PON and G-PON systems. The product is delivered unassembled; shrink splice holders, heat-shrink splice protection and wall-mounting hardware are included.

Advantages

The IP65-rated housing protects fiber connections against dust and water ingress for reliable outdoor deployment. Modular internal layout supports installation of up to 24 couplings and organized storage of fiber slack for up to 48 fibers. Delivered with splice holders and shrink protection accessories to facilitate fusion splicing and secure cable strain relief during installation. Wall-mountable design simplifies mounting on poles or building exteriors.

Suitable for

Key specifications

How to use

Mount the enclosure on a suitable wall or pole using the supplied hardware. Route incoming and outgoing fiber cables through the designated entry ports, secure cables with strain relief, and install adapters into the coupling positions as required. Use the supplied shrink splice holders and heat-shrink protection to perform fusion splices, then store excess fiber length neatly in the internal fiber management area to avoid sharp bends. Close and seal the enclosure to maintain IP65 protection.
