EFB Electronics Bandeja fija de 19 pulgadas 0,5U, profundidad de montaje 750-850 mm, capacidad de carga 70 kg, profundidad de armario 1000 mm, gris claro (RAL 7035)

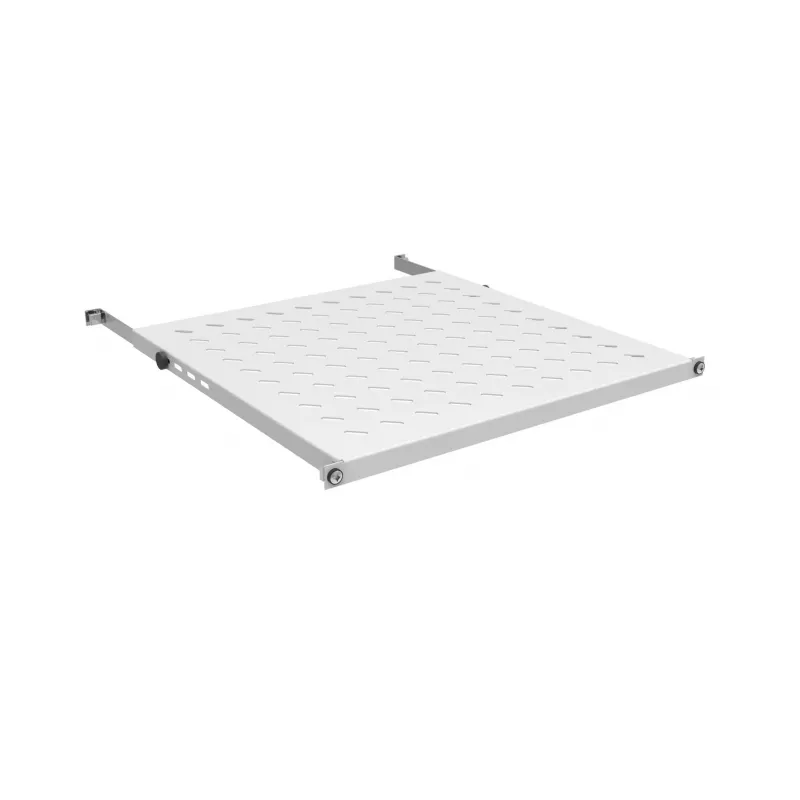

The EFB Electronics 19 inch 0.5U Fixed Shelf is a robust and reliable solution for mounting equipment in server racks and network cabinets. Designed to support up to 70 kg, this fixed shelf provides a stable platform for servers, switches, and other network devices. With an adjustable installation depth ranging from 750 mm to 850 mm, it fits seamlessly into cabinets with a depth of 1000 mm. The shelf is finished in light grey (RAL 7035) and features a solid, non-ventilated design for secure equipment placement.

Advantages

This fixed shelf offers exceptional load capacity of 70 kg, ensuring safe support for heavy equipment. Its 4-point mounting system provides secure attachment to 19-inch racks, while the powder-coated steel construction guarantees durability and longevity. The shelf's solid design prevents dust ingress, making it ideal for environments where cleanliness is critical.

Suitable for

• Server racks and network cabinets with 19-inch mounting width
• Supporting heavy network equipment such as servers, switches, and patch panels
• Data centers, server rooms, and industrial environments requiring reliable equipment mounting

Key specifications

• Rack Standard: 19 inch
• Height Units: 0.5U
• Shelf Type: Fixed Shelf
• Minimum Installation Depth: 750 mm
• Maximum Installation Depth: 850 mm
• Maximum Load Capacity: 70 kg
• Color: Light Grey (RAL 7035)
• Recommended Cabinet Depth: 1000 mm
• Material: Steel
• Mounting Points: 4-point mounting
• Ventilation: Non-ventilated (Solid)
• Finish: Powder-coated
• Adjustability: Not adjustable
• Application: Server Racks, Network Cabinets

Recommendations

For optimal performance, ensure the cabinet depth is at least 1000 mm to accommodate the shelf's installation depth range. Use appropriate screws and mounting hardware (not included) for secure installation. This shelf is not adjustable; select the correct depth range for your cabinet.
