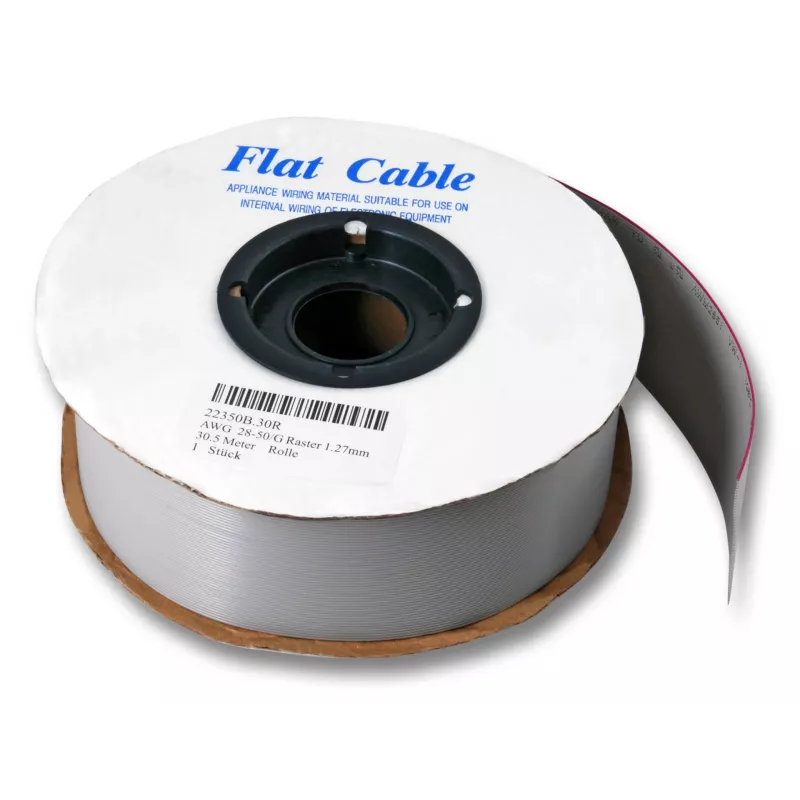

EFB Electronics Cable plano AWG 28-26/G rollo de 30,5 m paso 1,27 26 polos

The EFB Electronics ribbon cable is a high-quality flat cable designed for internal wiring, data transmission, and IDC connections. With 26 conductors on a 1.27 mm pitch and 28 AWG tinned copper wires, this cable offers reliable performance in a compact form factor. The 30.5-meter roll provides ample length for various projects, while the grey PVC insulation ensures durability and RoHS compliance.

Advantages

This ribbon cable simplifies wiring in tight spaces, reduces installation time, and ensures consistent signal integrity. The color-coded conductor arrangement (typically red stripe for pin 1) aids in error-free termination.

Suitable for

• Internal wiring of electronic devices
• Data transmission between boards
• IDC connector applications
• Prototyping and repair

Key specifications

• Product Type: Flat Ribbon Cable
• Number of Conductors: 26
• Conductor Pitch: 1.27 mm (0.050 inch)
• Wire Gauge: 28 AWG
• Cable Length: 30.5 m
• Packaging: Roll
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Cable Color: Grey
• Rated Voltage: 300 V
• Operating Temperature: -20°C to +105°C
• Current Rating: Approx. 1 A per conductor
• Outer Cable Width: Approx. 33.02 mm
• Compliance: RoHS Compliant

Recommendations

For best results, use with compatible IDC connectors and ensure proper strain relief. Suitable for both commercial and industrial applications.
