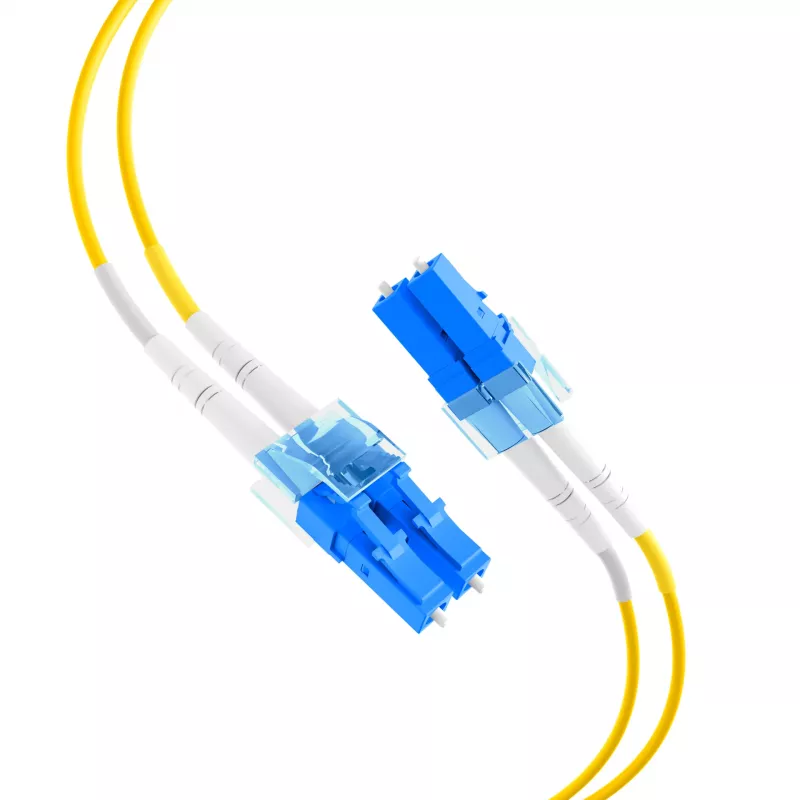

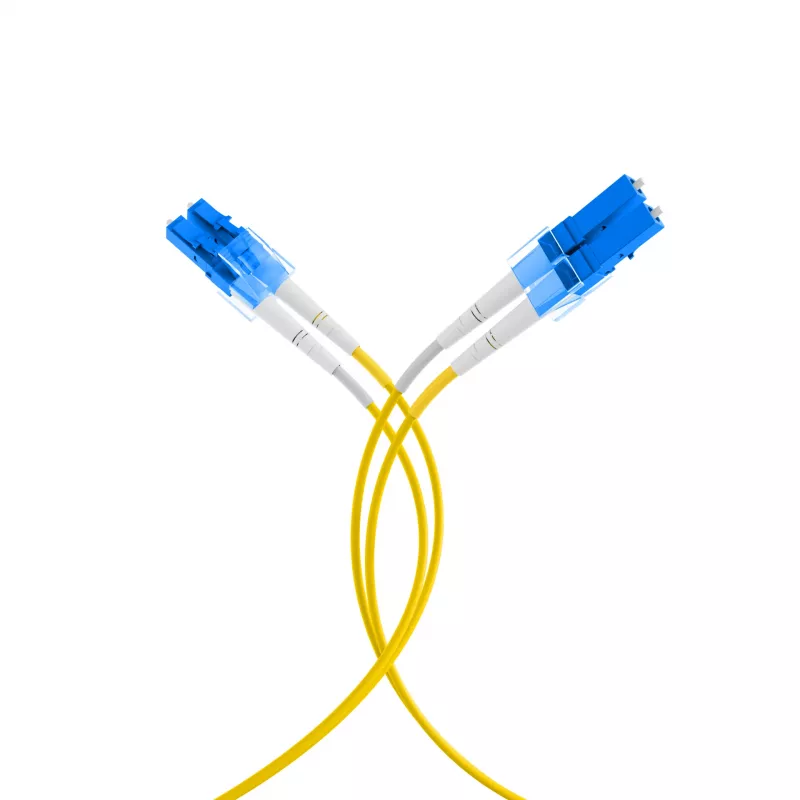

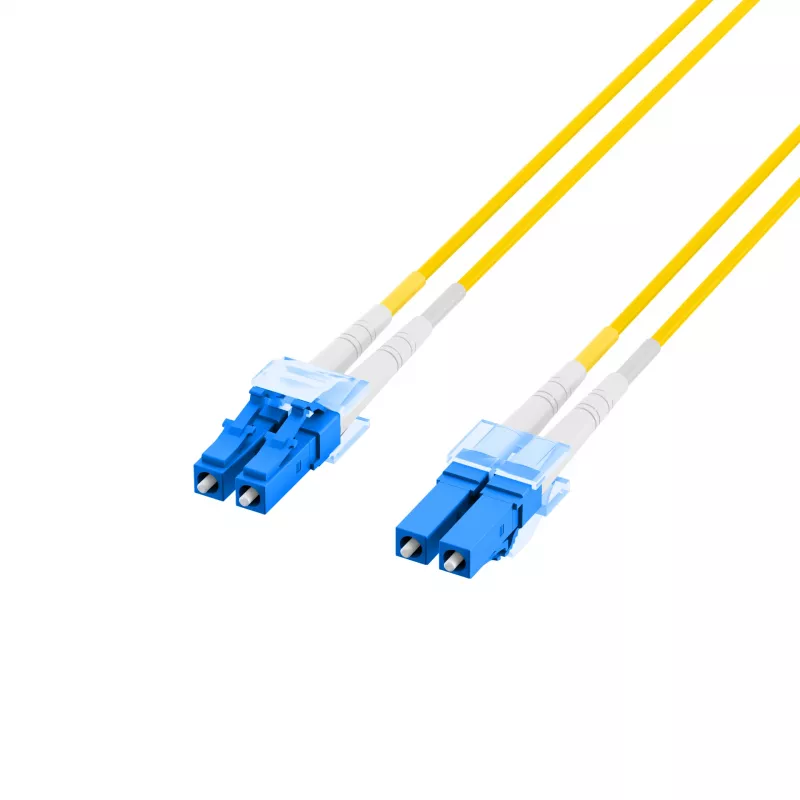

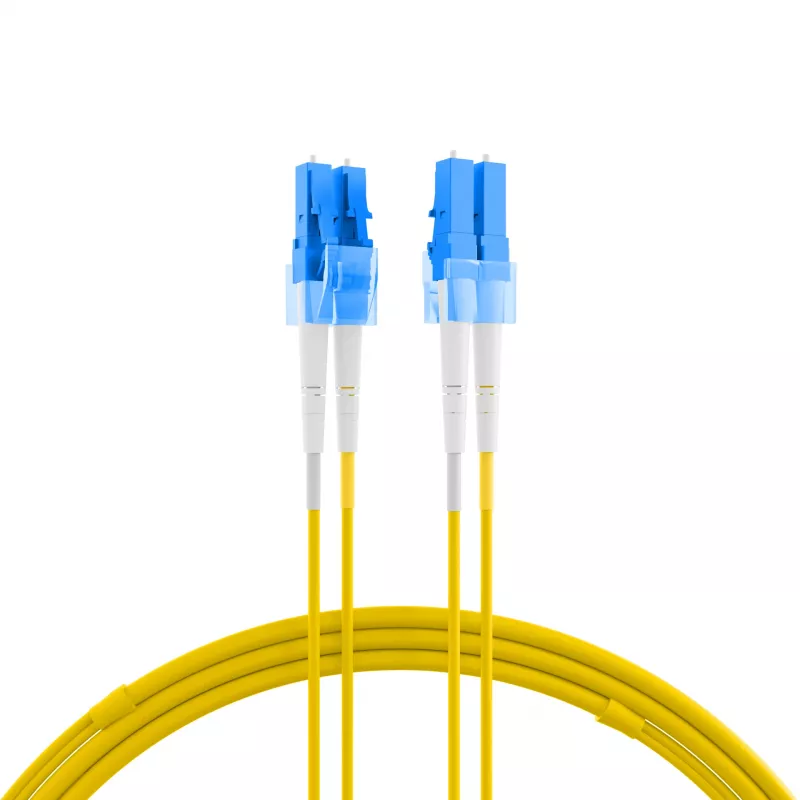

EFB Electronics IPL-DR-LCULCU-2-0500 Cable de fibra óptica monomodo OS2, LC/UPC a LC/UPC, dúplex, 5 m, LSZH, Amarillo

The EFB Electronics IPL-DR-LCULCU-2-0500 is a high-quality OS2 single-mode fiber optic patch cable designed for reliable data transmission in indoor and outdoor environments. With a length of 5 meters and duplex LC/UPC connectors, this cable ensures low insertion loss and high return loss, making it ideal for high-speed networks.

Advantages

This patch cable offers exceptional performance with low attenuation and robust construction. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, while the I-V(ZN)H construction with non-metallic rodent protection ensures durability and longevity. The yellow jacket color allows for easy identification in cable management systems.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) and wide area networks (WAN)
• Any application requiring reliable single-mode fiber connectivity

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode
• Fiber Standard: OS2 (ITU-T G.652.D)
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Cable Length: 5 m
• Number of Fibers: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Construction: I-V(ZN)H (Indoor/Outdoor, Non-Metallic Rodent Protection)
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (Max): ≤ 0.3 dB per connector
• Return Loss (Min): ≥ 50 dB (UPC)
• Attenuation @ 1310nm: ≤ 0.4 dB/km
• Attenuation @ 1550nm: ≤ 0.3 dB/km
• Cable Diameter: Approx. 3.0 mm
• Jacket Color: Yellow
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius (Static): 10 x Cable Diameter
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC/UPC interfaces and is suitable for both indoor and outdoor use. Pair with EFB Electronics patch panels and connectors for a complete solution.
