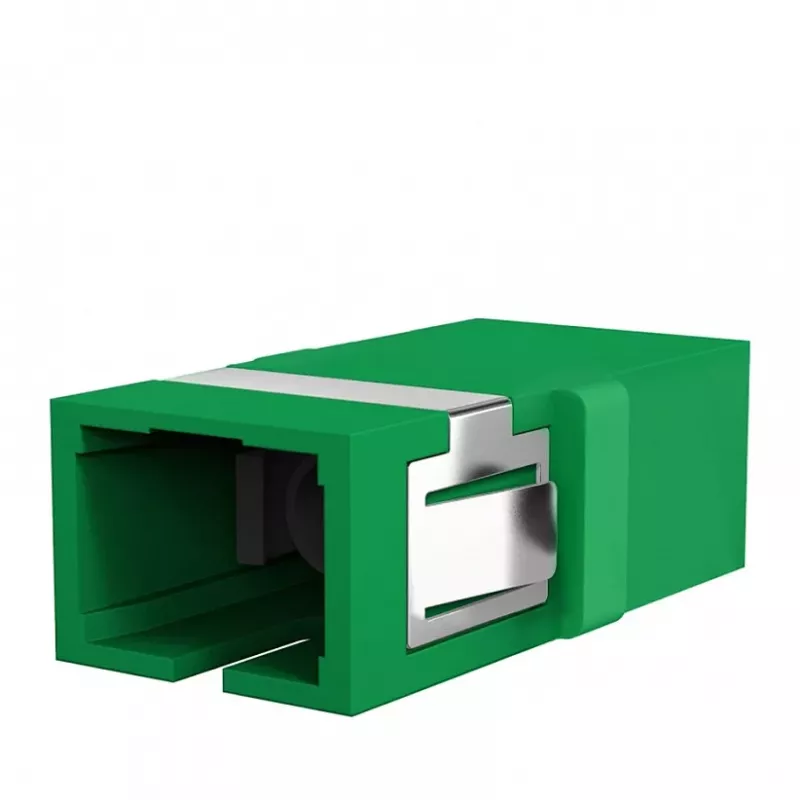

EFB Elektronik Acoplador de fibra óptica SC/APC monomodo simplex, verde, montaje con brida

The EFB Elektronik 53518.1 is a high-quality SC/APC fiber optic coupler designed for singlemode applications. This simplex adapter features a zirconia ceramic ferrule for low insertion loss and high return loss, ensuring reliable performance in FTTx, LAN, telecommunication, and data center environments. The green plastic housing with flange mount allows for secure panel installation.

Advantages

Low insertion loss (≤0.2 dB) and high return loss (≥60 dB) for optimal signal integrity. Durable construction with over 500 mating cycles ensures long-term reliability. Compliant with IEC 61754-4 and TIA/EIA-604-3 standards.

Suitable for

• FTTx networks
• Local area networks (LAN)
• Telecommunication systems
• Data centers

Key specifications

• Connector type: SC/APC
• Fiber mode: Singlemode (OS1/OS2)
• Fiber count: Simplex (1 fiber)
• Adapter type: Coupler (female-female)
• Insertion loss: ≤0.2 dB
• Return loss: ≥60 dB
• Ferrule material: Zirconia ceramic
• Housing material: Plastic
• Color: Green
• Mounting type: Flange mount
• Operating wavelength: 1310 nm, 1550 nm
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Durability: >500 mating cycles

Recommendations

For optimal performance, use with singlemode SC/APC patch cables and ensure proper cleaning before mating.
