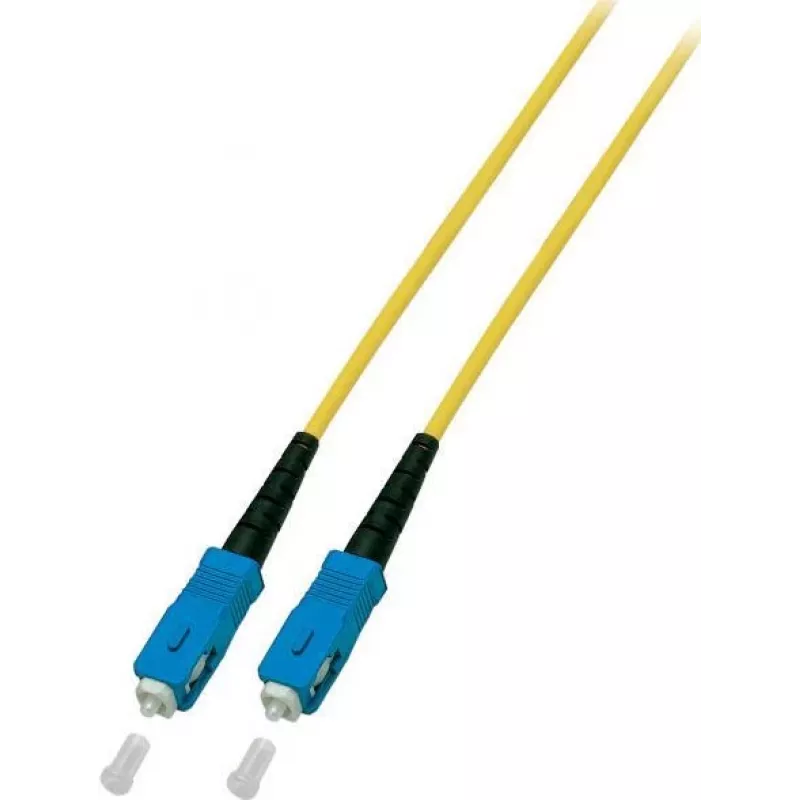

EFB-Elektronik Cable de conexión de fibra óptica simplex SC-SC G657.A2 10m 3,0mm amarillo 9/125µm

The EFB-Elektronik Simplex LWL Patchkabel SC-SC is a high-quality fiber optic patch cable designed for reliable single-mode connections. With a length of 10 meters and a 3.0 mm diameter, this cable features bend-insensitive G657.A2 fiber, ensuring optimal performance in tight spaces. The yellow LSZH jacket provides durability and safety for indoor use.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The bend-insensitive fiber allows for flexible installation without compromising performance. The LSZH jacket reduces smoke and toxic fumes in case of fire, making it ideal for environments with strict safety requirements.

Suitable for

• Data center and server room connections
• Telecommunications and network infrastructure
• FTTH (Fiber to the Home) applications
• Indoor fiber optic cabling

Key specifications

• Fiber Mode: Single-mode
• Fiber Type: G657.A2 (Bend-Insensitive)
• Connector Type: SC to SC
• Connector Polish: PC
• Core/Cladding: 9/125 µm
• Cable Length: 10 m
• Cable Diameter: 3.0 mm
• Jacket Color: Yellow
• Jacket Material: LSZH
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is not suitable for outdoor use. Pair with compatible SC adapters and patch panels for best results.
