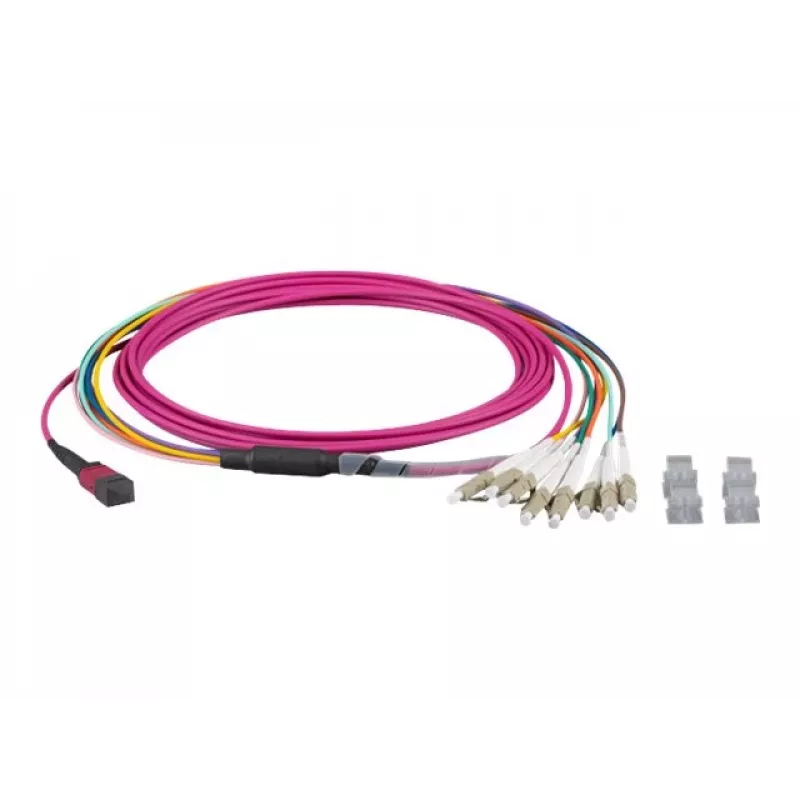

EFB-Elektronik Cable de conexión matricial MTP-F/LC 8 fibras OM4, LSZH, Erika Violeta, 10m

The EFB-Elektronik MTPF08LCOM4-10 is a high-performance 8-fiber matrix patch cable designed for demanding data center and high-density networking environments. It features an MTP female connector on one end and 4 duplex LC connectors on the other, enabling efficient breakout from a single 8-fiber trunk to four duplex connections. The cable is built with OM4 multimode fiber, supporting high-bandwidth applications over distances up to 10 meters.

Advantages

This patch cable offers exceptional reliability and performance for high-speed networks. The OM4 fiber type ensures optimal performance for 40G and 100G Ethernet applications, while the LSZH jacket provides safety in confined spaces by emitting low smoke and zero halogen in case of fire. The Erika violet color aids in easy identification and cable management.

Suitable for

• Data center interconnects
• High-density fiber optic patching
• Storage area networks (SAN)
• Local area networks (LAN)
• Telecommunications rooms

Key specifications

• Connector A: MTP Female (8-Fiber)
• Connector B: 4x Duplex LC
• Fiber Type: Multimode OM4 (50/125 µm)
• Number of Fibers: 8
• Cable Length: 10 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Erika Violet
• Insertion Loss (Typical): ≤ 0.35 dB (MTP), ≤ 0.25 dB (LC)
• Return Loss (Typical): ≥ 20 dB
• Polarity: Type B
• Operating Temperature: -20°C to +70°C
• Standards: IEC 61754-7, IEC 61754-20, TIA/EIA-568.3-D, RoHS, REACH

Recommendations

This cable is ideal for upgrading or expanding fiber optic infrastructure in data centers and enterprise networks. Ensure compatibility with your equipment's connector types and fiber specifications.
