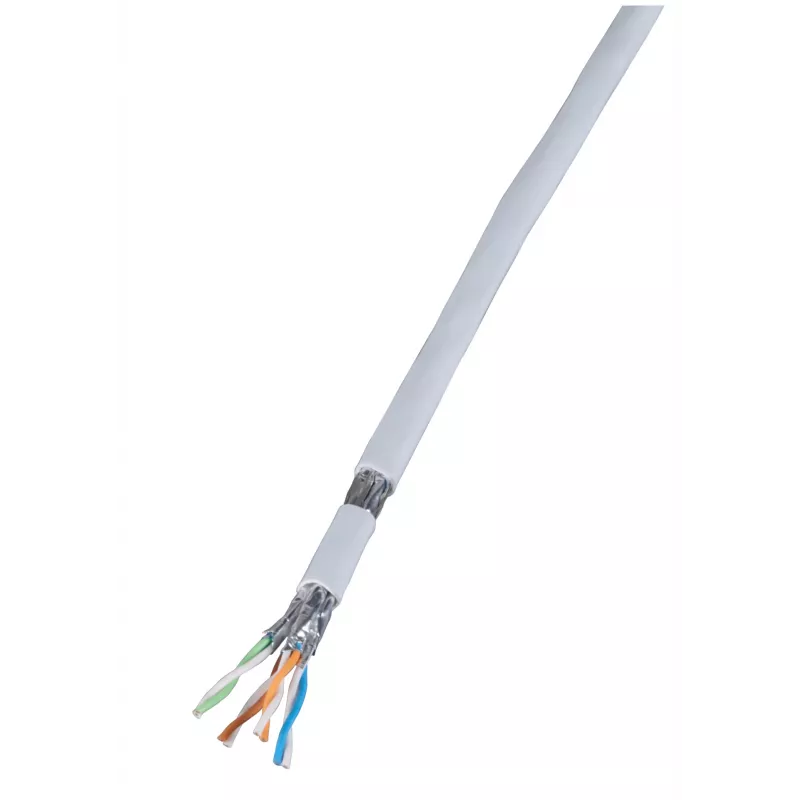

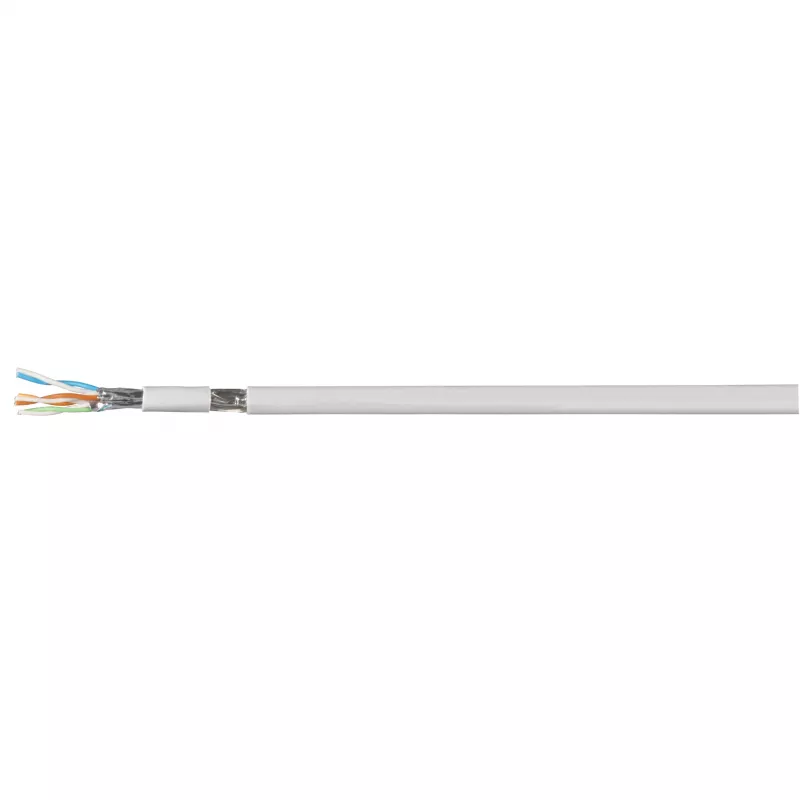

EFB Elektronik Cable de parcheo Cat.7 PiMF UC900MHz SS26 4P FRNC-B gris 100m - Red - Cable CAT 7/Conector RJ45

The EFB Elektronik Patch Cable Cat.7 PiMF UC900MHz SS26 4P FRNC-B is a high-performance network cable designed for demanding data center and enterprise applications. With a length of 100 meters and a grey FRNC-B jacket, this cable ensures reliable, high-speed data transmission up to 10 Gigabit Ethernet. Its S/FTP shielding (PiMF) provides excellent protection against electromagnetic interference, making it ideal for environments with high EMI.

Advantages

This Cat.7 patch cable offers superior performance with a bandwidth of 900 MHz, supporting 10GBASE-T and PoE++ applications. The stranded copper conductors (AWG 26) provide flexibility and durability, while the halogen-free, flame-retardant jacket ensures safety in case of fire. The cable is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• High-speed data transmission (10 Gbps)
• Power over Ethernet (PoE, PoE+, PoE++) devices
• Industrial environments with EMI

Key specifications

• Cable Type: Patch Cable
• Category: Cat.7
• Shielding: S/FTP (PiMF)
• Frequency Bandwidth: 900 MHz
• Conductor Material: Copper
• Conductor Gauge: AWG 26
• Conductor Type: Stranded
• Number of Pairs: 4
• Jacket Material: FRNC-B (Flame Retardant Non Corrosive - B)
• Halogen Free: Yes
• Color: Grey
• Length: 100 m
• Connector Type: RJ45 (both ends)
• Data Transfer Rate: Up to 10 Gbps
• PoE Support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Impedance: 100 Ohm
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, use this cable with Cat.7 compatible network equipment. Ensure proper installation to maintain shielding effectiveness. Suitable for fixed installations in cable trays or conduits.
