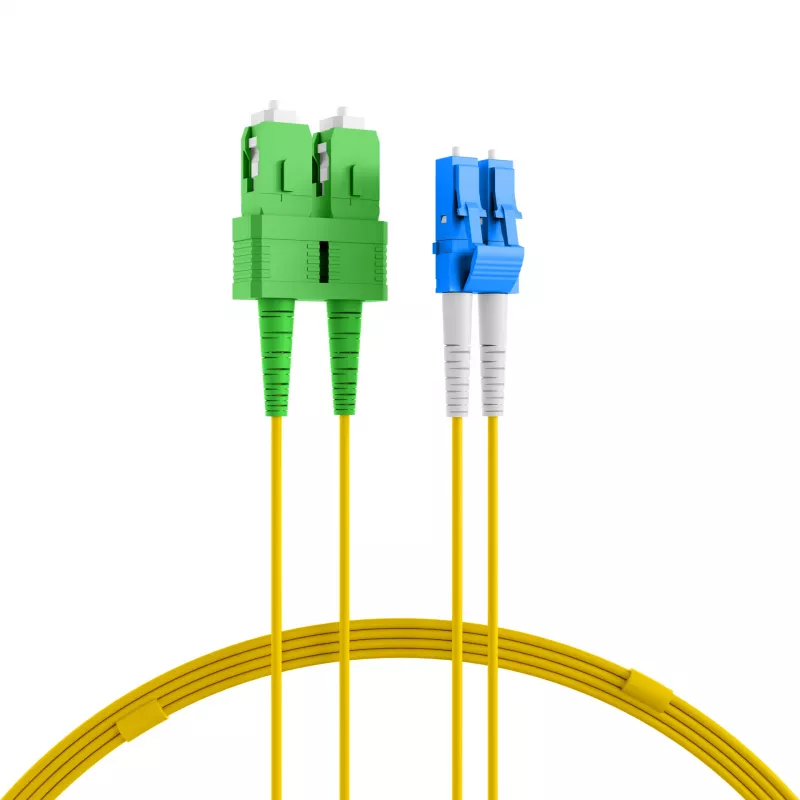

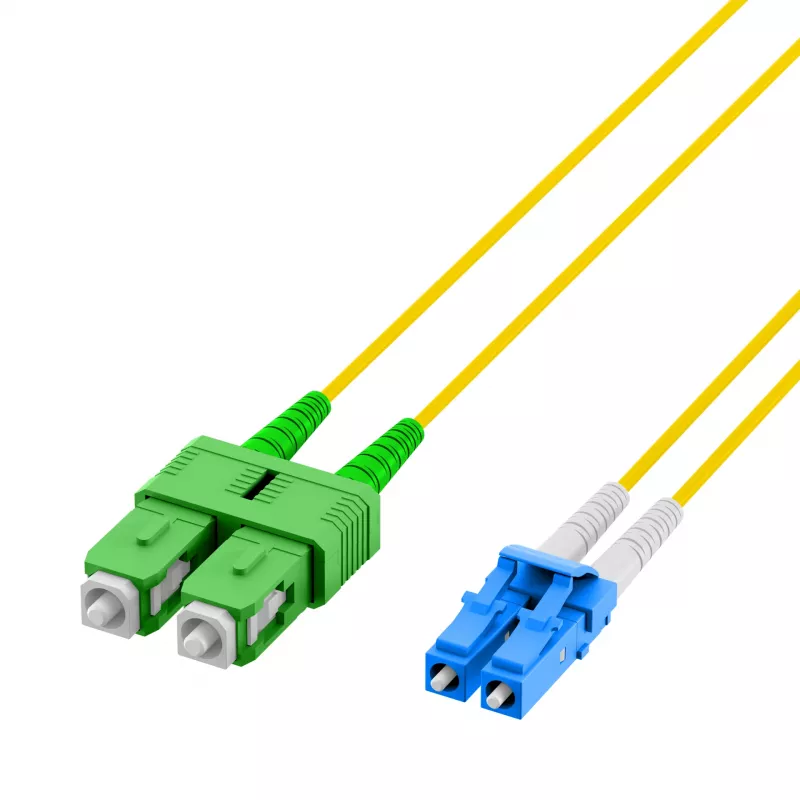

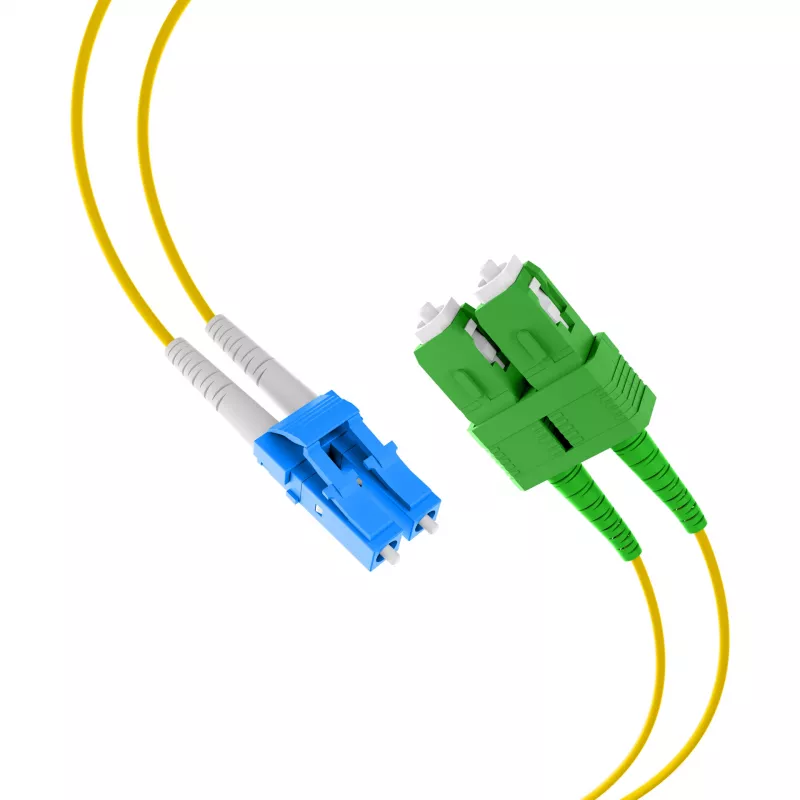

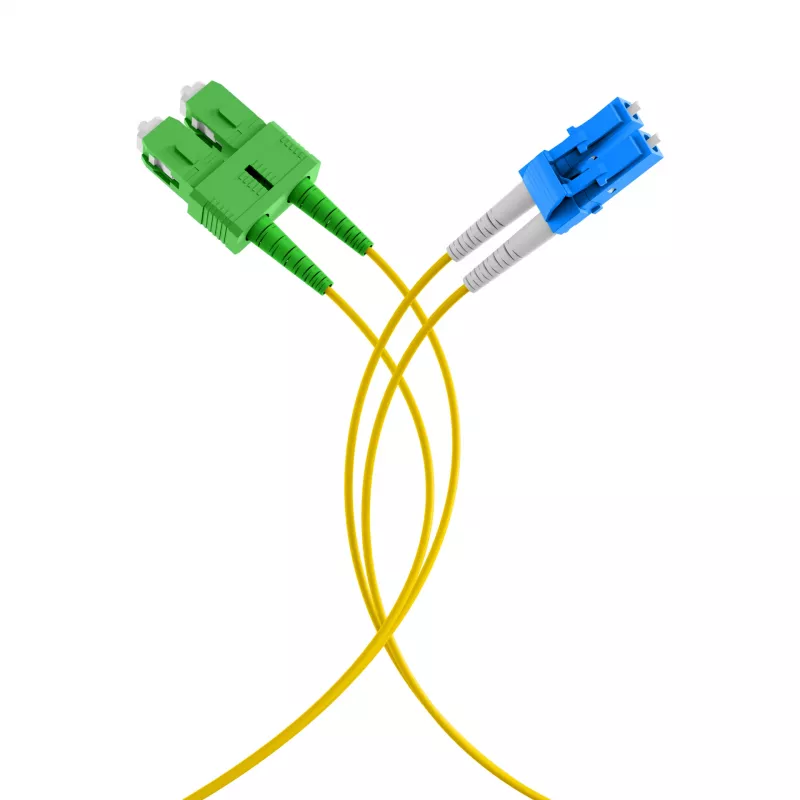

EFB Elektronik Cable dúplex LC-SC/APC 9/125µm OS2 LSZH amarillo 2,0mm 35m

The EFB Elektronik Duplex Jumper LC-SC/APC is a high-quality fiber optic patch cable designed for singlemode applications. With a length of 35 meters and a 2.0mm diameter, this cable ensures reliable and low-loss connections in FTTH, CATV, and telecommunication networks. The LC duplex connector on one end and SC/APC duplex connector on the other provide versatility for various equipment interfaces.

Advantages

This jumper offers excellent optical performance with typical insertion loss ≤0.3 dB and high return loss ≥60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The yellow color facilitates easy identification for singlemode cables.

Suitable for

• Fiber-to-the-Home (FTTH) installations
• Data center interconnections
• Telecommunication networks
• CATV and broadband systems
• Local Area Networks (LAN) requiring singlemode fiber

Key specifications

• Fiber mode: Singlemode OS2 (ITU-T G.652.D)
• Core/Cladding: 9/125 µm
• Connector A: LC Duplex
• Connector B: SC/APC Duplex (Angled Physical Contact)
• Cable construction: Duplex
• Jacket material: LSZH
• Cable diameter: 2.0 mm
• Length: 35 m
• Color: Yellow
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Avoid sharp bends; minimum bend radius is 20 mm (long term). This cable is compatible with standard LC and SC/APC ports.
