EFB Elektronik caja de empalme 12-LC-dúplex SM extraíble montaje en rack 1U

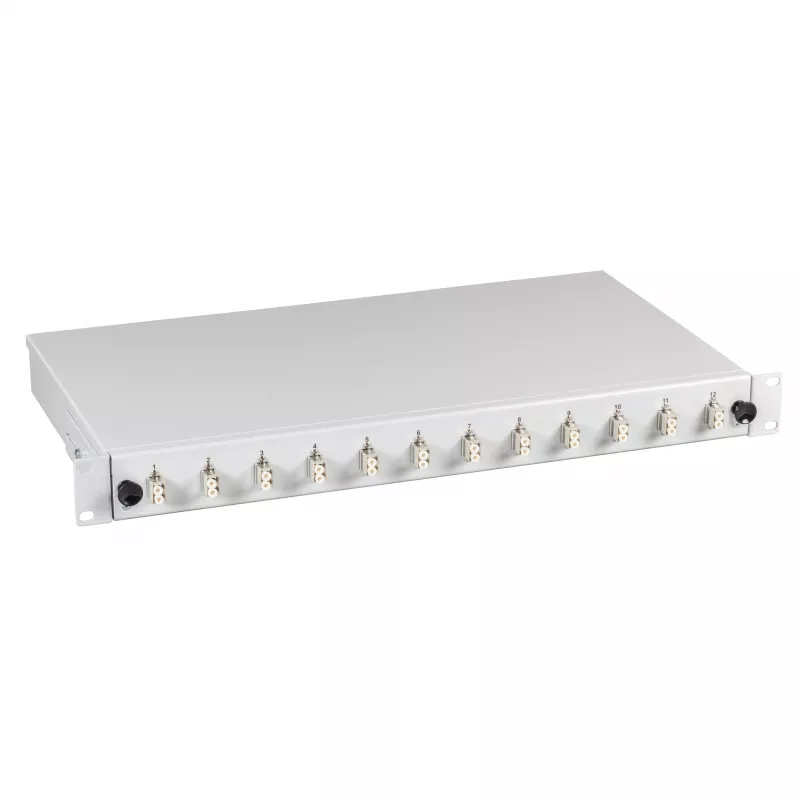

The EFB Elektronik B61921.12 Splice Box is a high-quality, partially equipped fiber optic distribution solution designed for 19-inch rack mounting. It features 12 LC-Duplex single-mode couplers in a pull-out drawer design, providing easy access for splicing and patching. Ideal for data centers and server rooms, this splice box ensures reliable fiber management and protection.

Advantages

Space-saving 1U design with extendable drawer for convenient access. Robust steel sheet housing in light grey (RAL 7035) ensures durability. Integrated strain relief and cable routing maintain fiber integrity. Labeling strips on the front panel simplify identification.

Suitable for

• Data centers and server rooms requiring organized fiber distribution
• Single-mode fiber optic networks
• Rack-mounted splicing and patching applications

Key specifications

• Rack Unit Height: 1U
• Rack Standard: 19 inch
• Mounting Type: Rack Mount
• Design: Pull-Out / Extendable Drawer
• Fiber Optic Type: Single-mode (SM)
• Connector Type: LC-Duplex
• Number of Ports: 12
• Equipped Status: Partially Equipped (with 12x LC-Duplex SM couplers)
• Housing Material: Steel Sheet
• Color: Light Grey (RAL 7035)
• Cable Entry Points: 2x Rear (for M20/M25 cable glands)
• Splice Tray Capacity: Up to 2 splice trays
• Protection Rating: IP20
• Front Panel Features: Integrated labeling strips
• Cable Management: Integrated strain relief and cable routing
• Application Environment: Indoor, Data Centers, Server Rooms
• Included Components: 12x LC-Duplex SM couplers, mounting kit, cable glands

Recommendations

For optimal performance, use with compatible LC-Duplex patch cables and splice trays. Ensure proper cable gland selection for rear cable entry.
