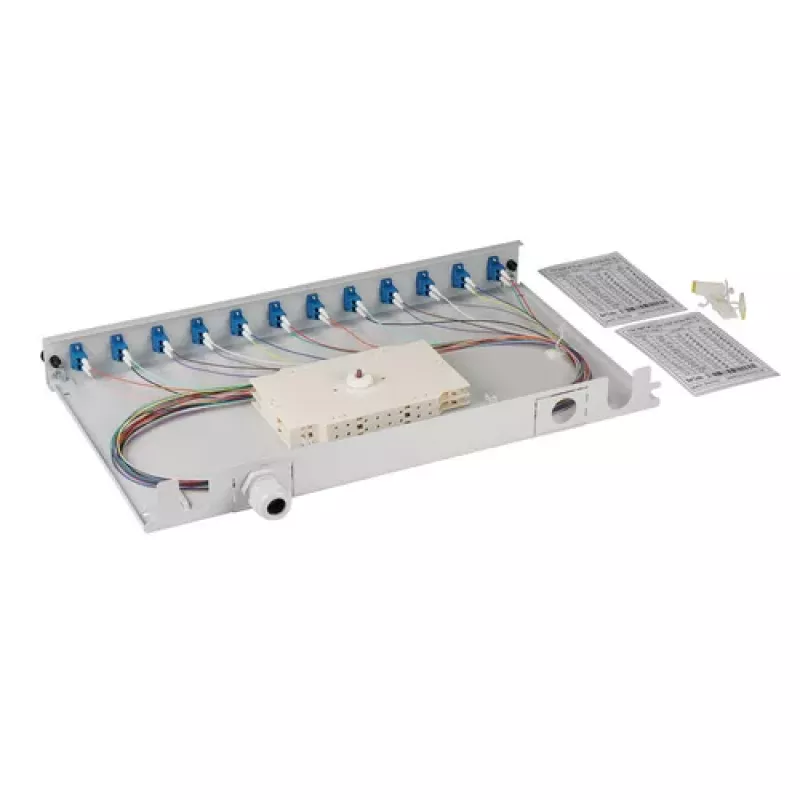

EFB Elektronik Caja de empalme LC 9/125 OS2 extraíble 48 pigtails offset/24 adaptadores

The EFB Elektronik BA71921L48 is a high-quality fiber optic splice box designed for professional network installations. This 1U 19-inch rack-mountable unit features an extendable sliding design for easy access to pigtails and adapters. It comes pre-terminated with 48 LC pigtails (9/125 µm OS2 single-mode) and 24 LC duplex adapters, making it ideal for data centers, telecommunications, and LAN networks.

Advantages

Pre-assembled with 48 pigtails and 24 adapters saves installation time. The sliding housing allows convenient maintenance and splicing. Compact 1U design optimizes rack space. High-quality OS2 fiber ensures reliable long-distance transmission.

Suitable for

• Data center fiber distribution
• Telecommunications network termination
• LAN backbone connections
• FTTx applications

Key specifications

• Fiber type: OS2 single-mode (9/125 µm)
• Connector type: LC pigtails and LC duplex adapters
• Number of pigtails: 48 (2 m length)
• Number of adapters: 24
• Housing: 1U 19-inch rack mount, steel, light grey (RAL 7035)
• Splice tray capacity: 48 splices (4 trays x 12)
• Cable entry: 2x M20/M25 cable glands (rear)

Recommendations

For optimal performance, use with OS2 patch cables and ensure proper cable management. Suitable for environments requiring high-density fiber termination.
