EFB Elektronik Caja de empalme LC OS2 9/125µm extraíble 24 pigtails 12 acopladores 1U

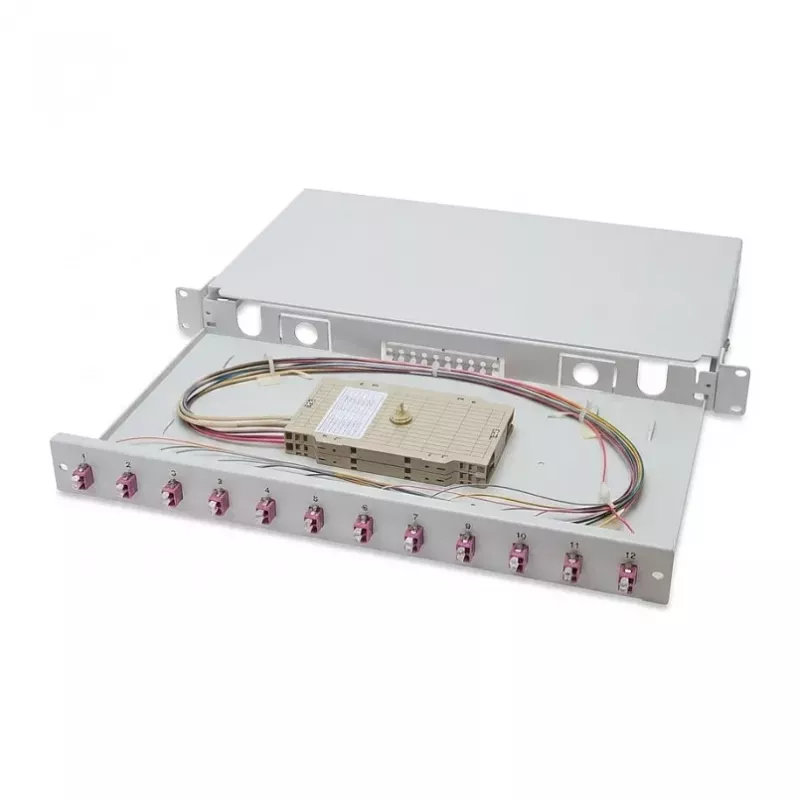

The EFB Elektronik B71921L24 is a high-quality fiber optic splice box designed for professional network infrastructure. This 1U 19-inch rack-mount unit is pre-assembled with 24 LC pigtails and 12 duplex LC adapters, providing a total fiber capacity of 24 fibers. The sliding/extractable housing allows easy access for splicing and maintenance, making it ideal for data centers, telecommunications, LAN, and FTTx applications.

Advantages

Pre-assembled with pigtails and adapters for quick deployment. Sliding design simplifies splicing and reduces installation time. Robust steel housing in light grey (RAL 7035) ensures durability. LSZH pigtail jacket enhances safety in enclosed spaces.

Suitable for

• Data centers requiring high-density fiber management
• Telecommunications networks
• Local area networks (LAN)
• FTTx installations

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Mode: Single-mode OS2
• Fiber Diameter: 9/125 µm
• Connector Type: LC (pigtails and adapters)
• Number of Pigtails: 24
• Number of Adapters: 12 (duplex)
• Total Fiber Capacity: 24
• Housing: Steel, light grey (RAL 7035)
• Mounting: 19-inch, 1U
• Pigtail Length: 2 m
• Pigtail Jacket: LSZH
• Splice Tray Capacity: Up to 24 splices

Recommendations

This splice box is perfect for structured cabling projects requiring reliable single-mode fiber termination. Ensure proper cable management for optimal performance.
