EFB Elektronik Caja para carril DIN OS2 6x acoplador SC dúplex sin pigtails (BHS60223.6)

In industrial control cabinets, managing fiber optic terminations often means dealing with messy splices and unprotected connectors. This DIN rail distribution box provides a structured, space-saving solution for terminating up to 12 fibers with SC-Duplex couplers, keeping your installation neat and reliable.

Who is it for

System integrators, panel builders, and maintenance technicians working with single-mode OS2 fiber in industrial environments, building automation, or control cabinets. Ideal for those who need a compact, DIN-rail mountable enclosure with integrated splice management but prefer to supply their own pigtails.

Main features

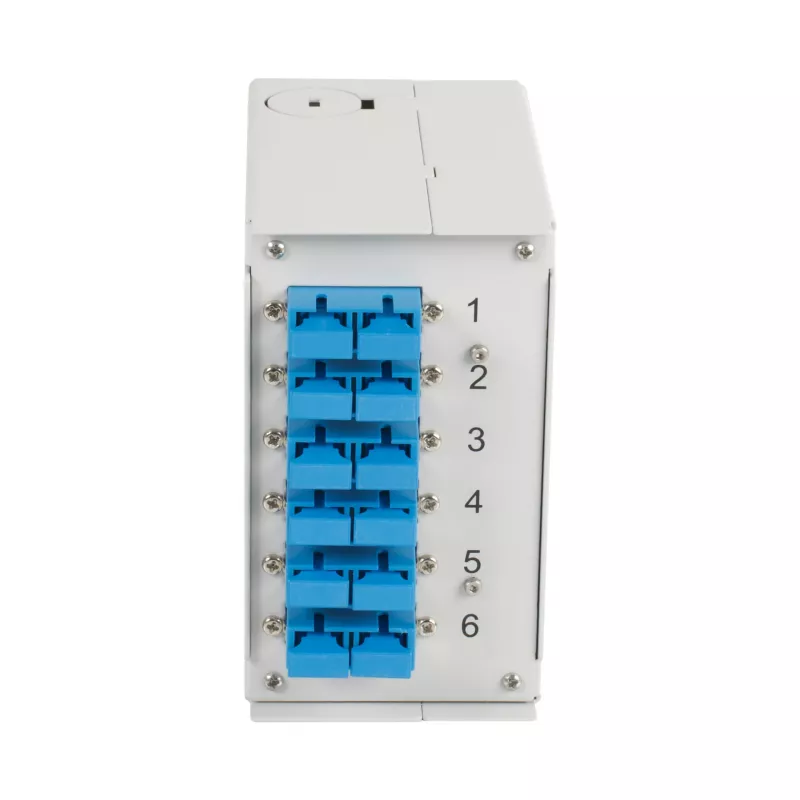

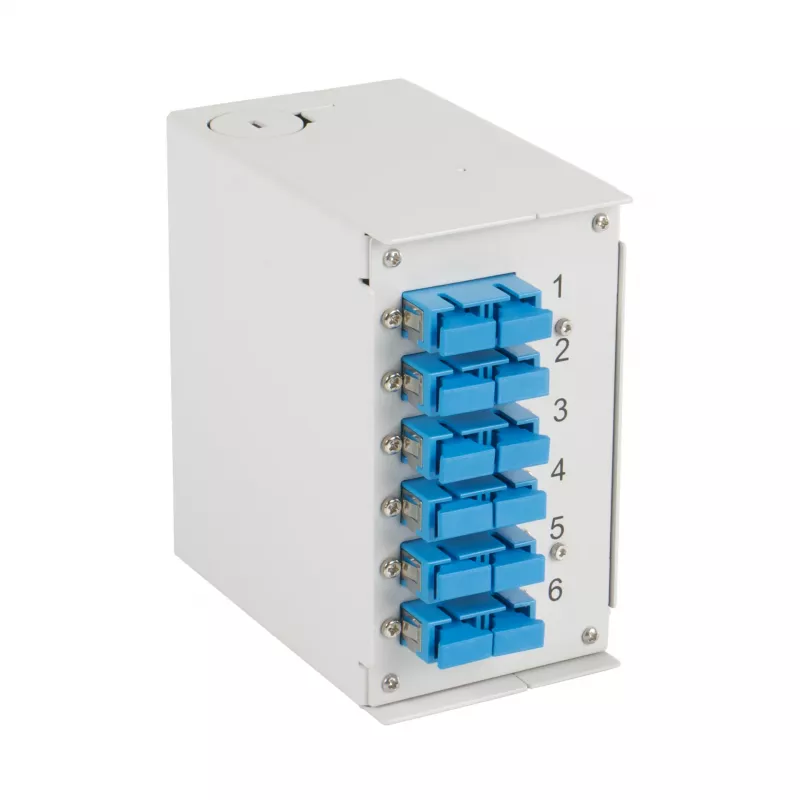

• 6x SC-Duplex couplers pre-installed for quick connections
• Integrated splice tray for up to 12 crimp or heat shrink splices
• Robust powder-coated steel housing in light grey (RAL 7035)

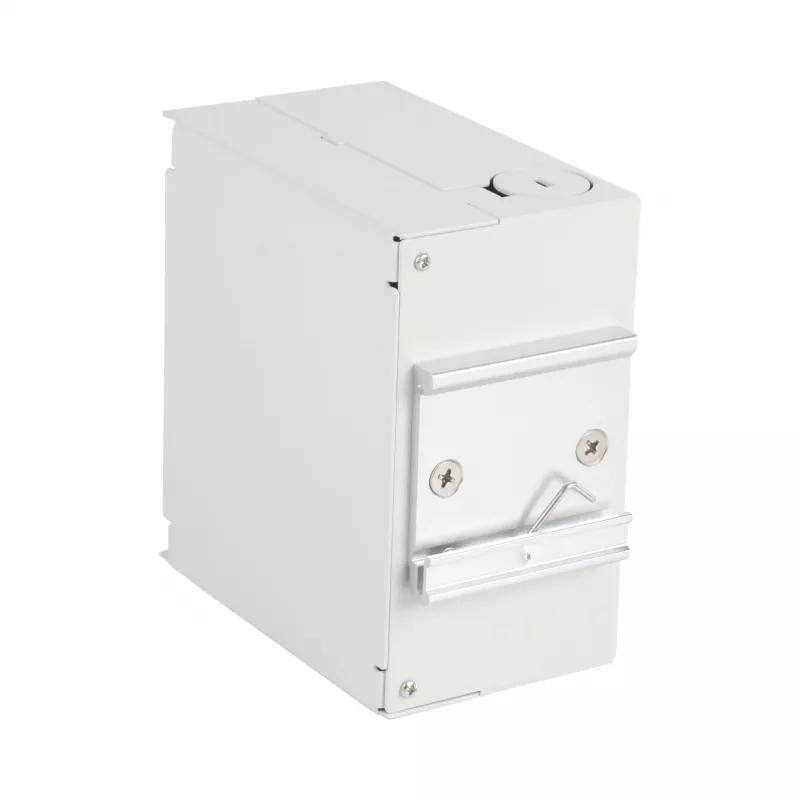

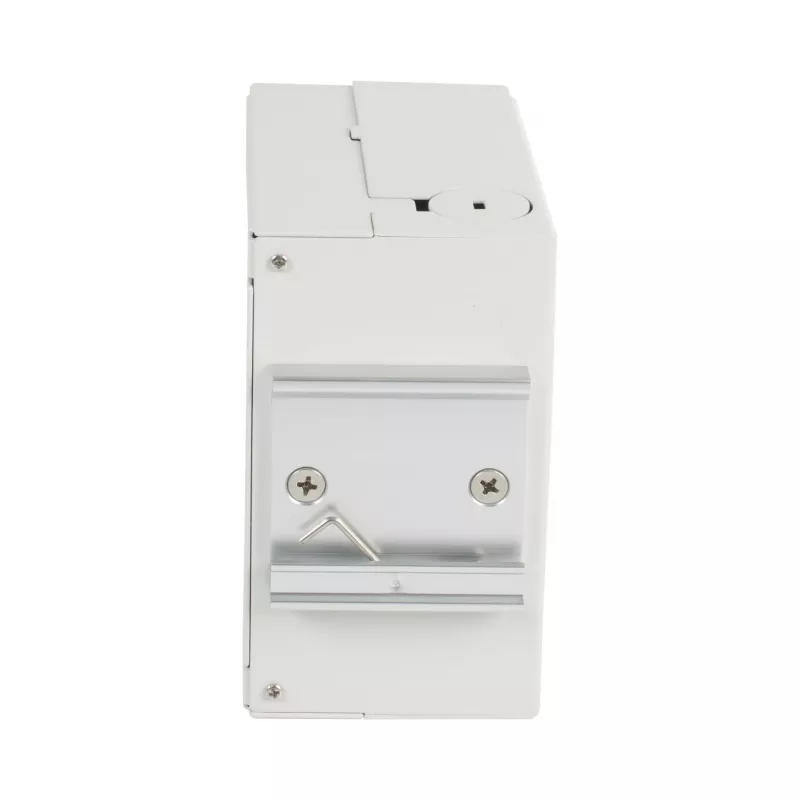

• Mounts on standard 35 mm DIN rail (TS35)
• Two M20 cable glands for secure cable entry
• Integrated strain relief for incoming cables
• Supports single-mode OS2 fiber (G.657.A1 / G.652.D)
• Operating temperature range: -25°C to +70°C

Specifications

• Product type: Fiber optic distribution box
• Mounting: DIN rail (TS35)
• Fiber type: Single-mode OS2
• Connector type: SC-Duplex
• Number of ports: 6
• Max. fiber capacity: 12 fibers
• Pigtails included: No
• Splice tray included: Yes
• Max. splice capacity: 12
• Housing material: Steel sheet, powder-coated
• Colour: Light grey (RAL 7035)
• Protection class: IP20
• Cable entry: 2x M20 cable glands
• Operating temperature: -25°C to +70°C
• Strain relief: Integrated
• Compliance: RoHS, CE

Tips

For a complete termination, order compatible SC pigtails separately. Ensure the DIN rail is properly grounded to avoid potential interference. Use the integrated splice tray to organize and protect splices before closing the cover.
