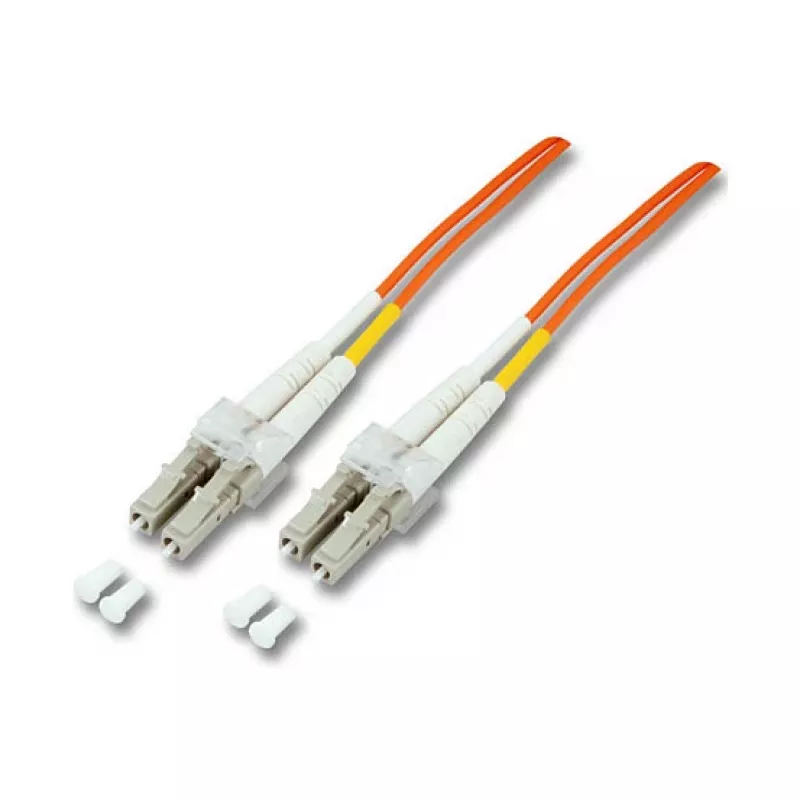

EFB-Elektronik Cable de parcheo dúplex LC-LC OM2 2m LSZH 2mm Naranja

The EFB-Elektronik Duplex Jumper LC-LC 50/125µm, OM2, LSZH, orange, 2.0mm, 2m is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With duplex LC connectors on both ends, this cable is ideal for Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel applications. The OM2 fiber grade ensures optimal performance for short to medium distances.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in confined spaces and public areas. The 2.0 mm cable diameter offers flexibility while maintaining durability.

Suitable for

• Data center cabling
• Telecommunications networks
• LAN and SAN environments
• FTTx applications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Type: Duplex
• Fiber Type: Multimode
• Fiber Category: OM2
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Connector Type (End 1): LC
• Connector Type (End 2): LC
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Orange
• Cable Diameter: 2.0 mm
• Cable Length: 2 m
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that connectors are clean before installation. This cable is compatible with standard LC interfaces and is suitable for use with OM2-rated equipment.
