EFB-ELEKTRONIK cable de parcheo dúplex LC-LC OS2 G652D 10m LSZH amarillo

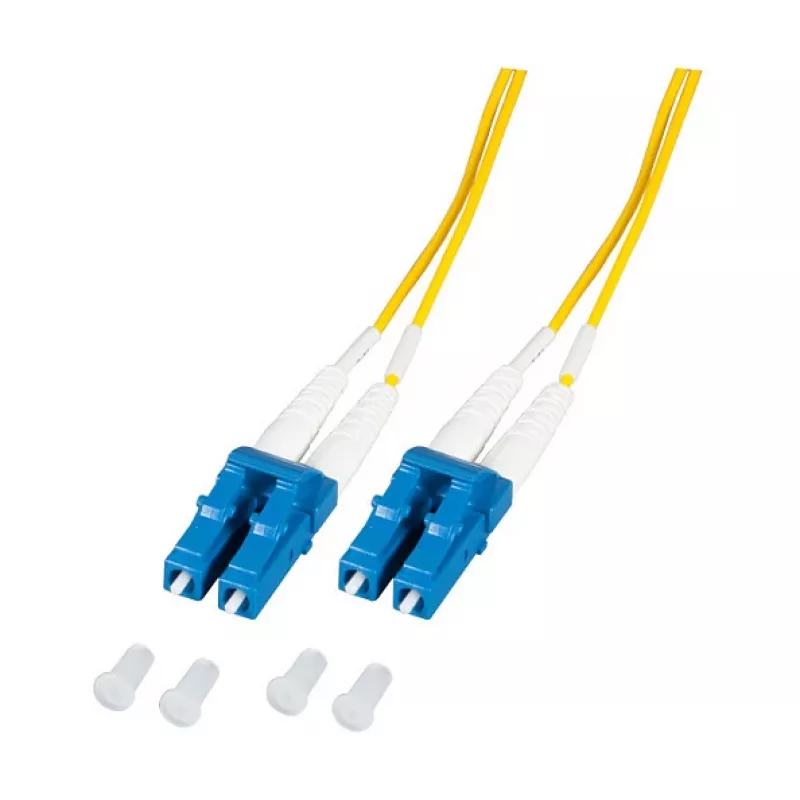

The EFB-ELEKTRONIK O0350.10-1.2 is a high-quality duplex fiber optic patch cable designed for single-mode applications. With a length of 10 meters and LC to LC connectors, this cable ensures reliable and high-speed data transmission in data centers, LAN networks, and telecommunication systems. The yellow LSZH jacket provides durability and safety in environments where low smoke and zero halogen are required.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring excellent signal integrity. The OS2 fiber type is optimized for long-distance transmission, and the 9/125 µm core/cladding diameter guarantees compatibility with standard single-mode equipment. The LSZH jacket reduces toxic emissions in case of fire, making it suitable for public and commercial buildings.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Telecommunication networks
• FTTx and backbone installations

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Standard: OS2 (ITU-T G.657.A1/A2)
• Connector A: LC/UPC Duplex
• Connector B: LC/UPC Duplex
• Length: 10 m
• Jacket Color: Yellow
• Core/Cladding: 9/125 µm
• Jacket Material: LSZH
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Cable Diameter: 3.0 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 10 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with single-mode SFP modules and ensure clean connector ends. This cable is ideal for structured cabling systems requiring high reliability and low signal loss.
