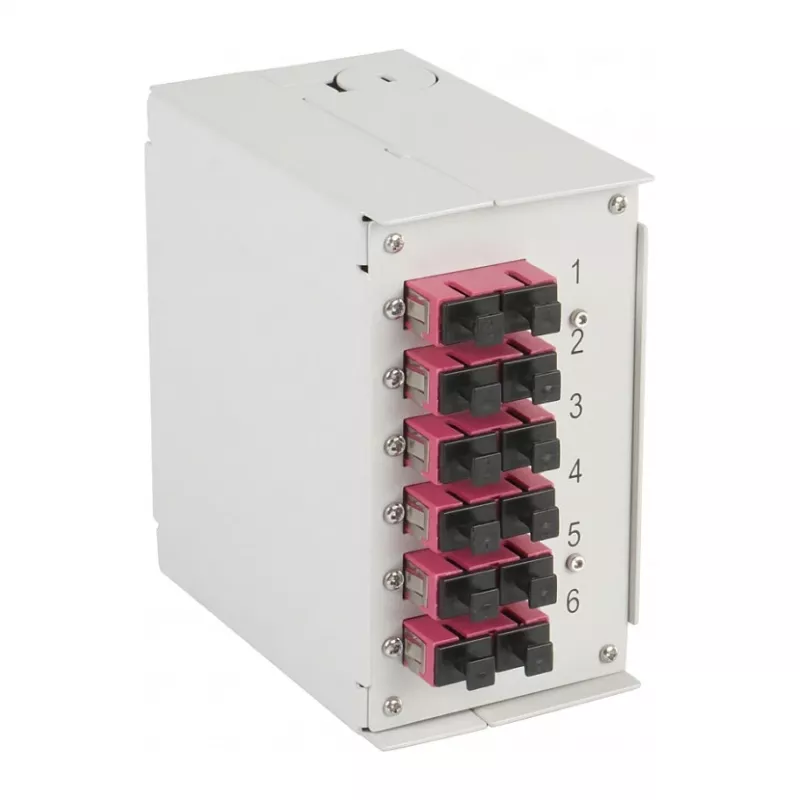

EFB-ELEKTRONIK caja de empalme para carril DIN OM4, 12x SC pigtail, 6x acoplador SC dúplex, gris claro (BHS70203.12OM4)

The EFB-ELEKTRONIK BHS70203.12OM4 is a high-quality DIN rail mountable fiber optic splice box designed for industrial and data center applications. It features pre-assembled OM4 multimode pigtails with 12x SC connectors and 6x SC-Duplex couplers, providing a reliable and organized fiber termination solution. The robust powder-coated steel housing in light grey (RAL 7035) ensures durability and protection, while the integrated splice tray supports both fusion and mechanical splicing. Ideal for industrial Ethernet, building cabling, and structured cabling systems.

Advantages

Pre-terminated with pigtails and couplers for quick installation; DIN rail mounting saves space; OM4 multimode supports high-bandwidth applications; durable steel housing with IP20 protection; includes splice tray for easy fiber management.

Suitable for

• Industrial Ethernet networks
• Building cabling and structured cabling
• Data centers and server rooms
• Fiber optic distribution points

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Mounting: DIN Rail (Hutschiene)
• Fiber Mode: Multimode OM4
• Number of Fibers: 12
• Internal Connectors: 12x SC pigtails
• External Couplers: 6x SC-Duplex
• Housing Material: Powder-coated steel
• Color: Light Grey (RAL 7035)
• Protection Class: IP20
• Operating Temperature: -10°C to +60°C
• Insertion Loss: < 0.3 dB per connection
• Return Loss: > 30 dB
• Standards: RoHS, REACH

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper fiber cleaning before connection. Suitable for indoor use only.
