EFB-ELEKTRONIK cassette de empalme preconfigurado con pigtails de colores SC OM4

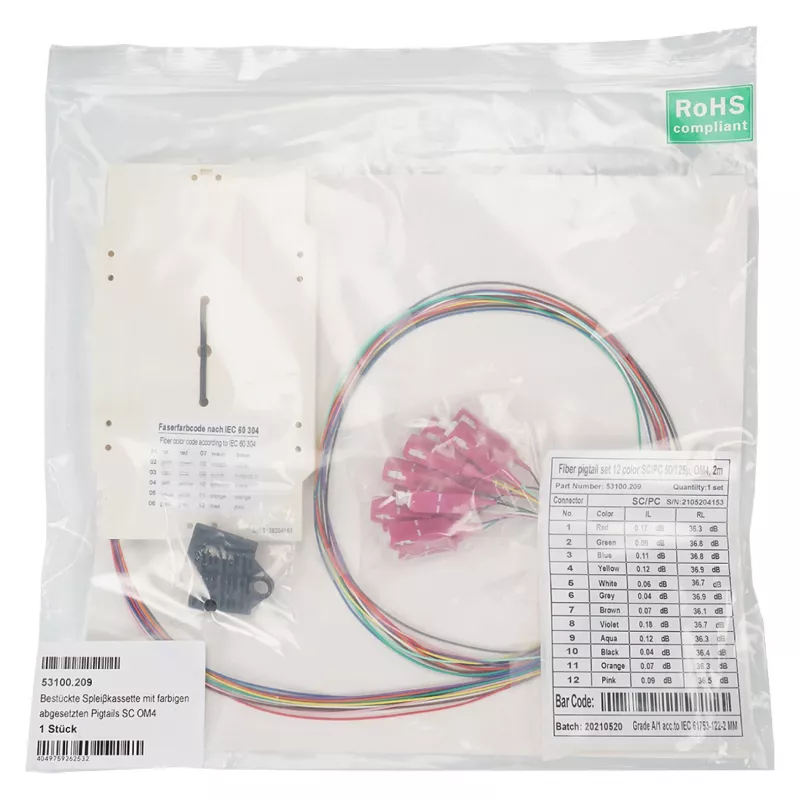

The EFB-ELEKTRONIK Pre-assembled Splice Cassette with Colored Pigtails SC OM4 is a high-quality fiber optic solution designed for efficient splicing and distribution in telecommunications networks. This cassette comes pre-assembled with 12 colored pigtails, each terminated with SC connectors, ensuring quick and reliable connections. The pigtails are color-coded according to DIN VDE 0888 for easy identification and organization.

Advantages

This splice cassette offers significant time savings during installation as it is pre-assembled and ready to use. The steel housing provides robust protection for the splices, while the crimp splice protection ensures long-term stability. The OM4 fiber type supports high-bandwidth applications over short to medium distances, making it ideal for data centers and enterprise networks.

Suitable for

• Fiber optic splicing and distribution in distribution boxes and panels
• Data center cabling infrastructure
• Telecommunications network installations
• FTTH and enterprise network deployments

Key specifications

• Product Type: Splice Cassette (Pre-assembled)
• Fiber Type: Multimode OM4
• Connector Type: SC
• Number of Fibers: 12
• Pigtail Length: 2 m
• Pigtail Diameter: 0.9 mm
• Pigtail Color Coding: DIN VDE 0888
• Splice Protection Type: Crimp Splice Protection
• Cassette Material: Steel
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Included Accessories: Splice holders for 12 crimp splice protectors

Recommendations

For optimal performance, use this splice cassette with standard fiber optic distribution boxes and panels. Ensure proper handling of the pigtails to maintain low insertion loss. The cassette is compatible with most industry-standard enclosures.
