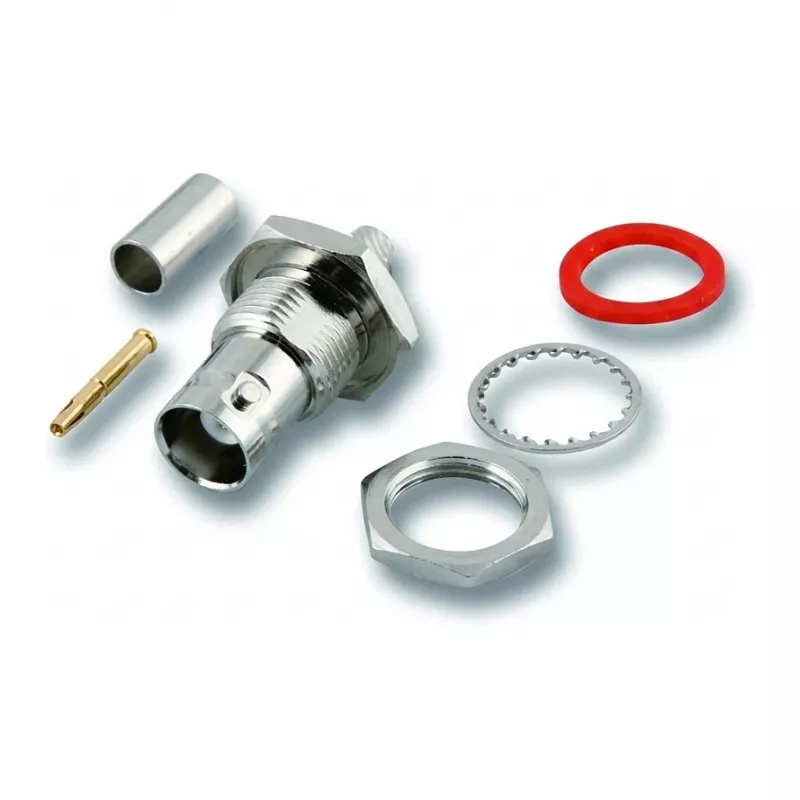

EFB-ELEKTRONIK Conector hembra BNC para panel, crimp, RG58, 50 Ohm, masa no aislada (52514.1)

The EFB-ELEKTRONIK BNC Panel Mount Jack (model 52514.1) is a high-quality RF connector designed for reliable signal transmission in test and measurement, video, and RF applications. This female BNC jack features a crimp termination for RG58 coaxial cable, ensuring a secure and consistent connection. With a 50 Ohm impedance and non-isolated ground, it is ideal for applications requiring precise impedance matching and minimal signal loss.

Advantages

This connector offers excellent electrical performance with a frequency range up to 4 GHz and a voltage rating of 500 V peak. The gold-plated center contact and nickel-plated brass body provide superior conductivity and corrosion resistance. The PTFE insulation ensures stable performance over a wide temperature range (-55°C to +85°C). With a durability of over 500 mating cycles, this connector is built for long-term use.

Suitable for

• RF and video equipment
• Test and measurement devices
• Telecommunications infrastructure
• Broadcast and CCTV systems
• Laboratory and industrial applications

Key specifications

• Connector Type: BNC Jack (Female)
• Mounting Type: Panel Mount / Bulkhead
• Termination: Crimp for RG58 cable
• Impedance: 50 Ohm
• Grounding: Non-Isolated
• Frequency Range: DC to 4 GHz
• Voltage Rating: 500 V peak
• Contact Resistance: Center ≤ 1.5 mΩ, Outer ≤ 1.0 mΩ
• Insulation Resistance: ≥ 5000 MΩ
• Operating Temperature: -55°C to +85°C
• RoHS Compliant

Recommendations

For optimal performance, use with RG58 coaxial cable and ensure proper crimping with a compatible tool. This connector is suitable for both professional and hobbyist projects requiring reliable BNC connections.
