EFB Elektronik INFRALAN® U-DQ(ZN)BH 8G 50/125µm OM3 LSZH negro CPR Dca cable de fibra óptica

The EFB Elektronik INFRALAN® U-DQ(ZN)BH 8G 50/125µm OM3 LSZH Black CPR Dca is a high-performance fiber optic cable designed for reliable data transmission in demanding environments. With 8 multimode fibers and OM3 grade, it supports 10 Gigabit Ethernet up to 300 meters, making it ideal for backbone and horizontal cabling in data centers, enterprise networks, and campus installations.

Advantages

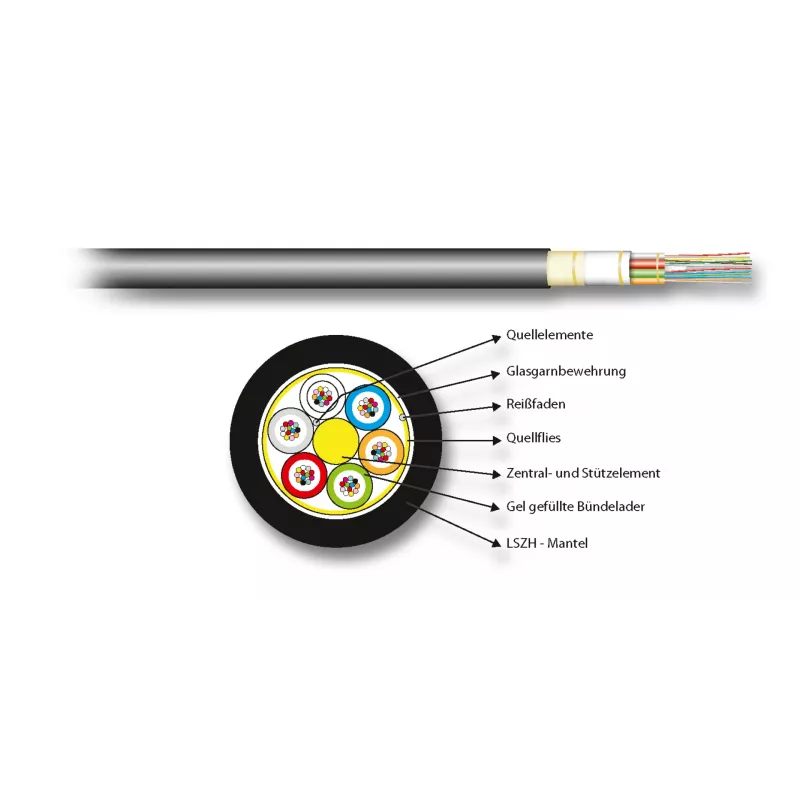

This cable offers exceptional bandwidth and low attenuation, ensuring high-speed data transfer with minimal signal loss. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire, while the CPR Dca classification guarantees compliance with European fire safety standards. Its robust loose tube construction with aramid yarns provides excellent tensile strength and flexibility, suitable for both indoor and outdoor use.

Suitable for

• Data center cabling
• Enterprise network backbones
• Fiber-to-the-desk (FTTD) installations
• Campus and building riser applications
• Industrial environments requiring fire safety

Key specifications

• Fiber Type: Multimode OM3
• Fiber Count: 8
• Core/Cladding: 50/125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Black
• CPR Class: Dca-s2, d2, a1
• Outer Diameter: Approx. 6.5 mm
• Min. Bending Radius (Operation): 65 mm
• Operating Temperature: -20°C to +70°C
• Attenuation @ 850nm: ≤ 2.8 dB/km
• Attenuation @ 1300nm: ≤ 0.8 dB/km
• Standards: IEC 60794-1, EN 50173-1, ISO/IEC 11801

Recommendations

For optimal performance, pair this cable with OM3-compatible connectors and patch panels. Ensure proper installation with minimum bending radius maintained. Suitable for use in structured cabling systems requiring high bandwidth and future-proofing for 40/100 Gbps applications.
