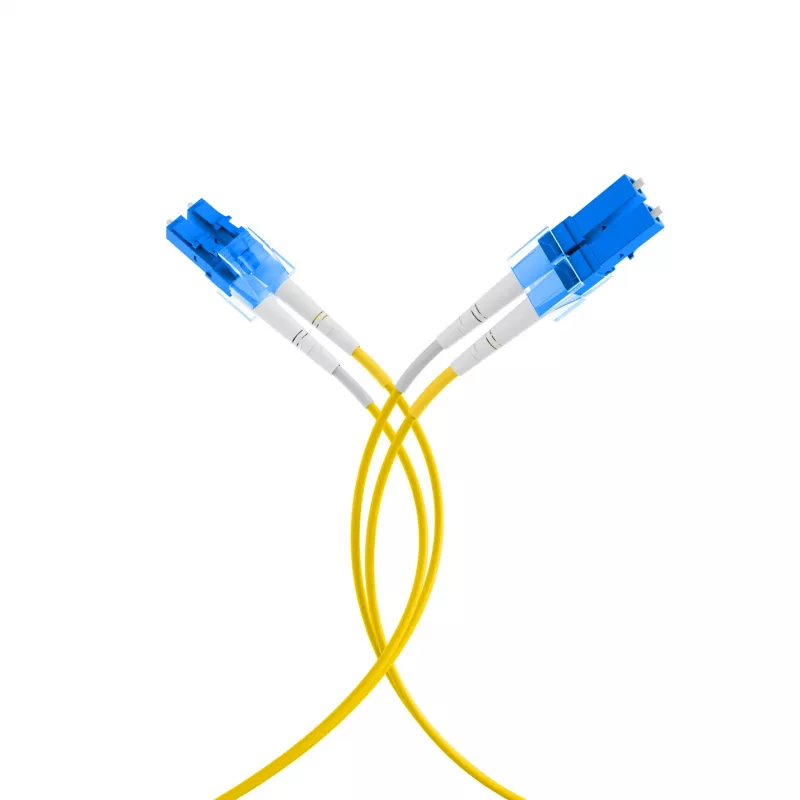

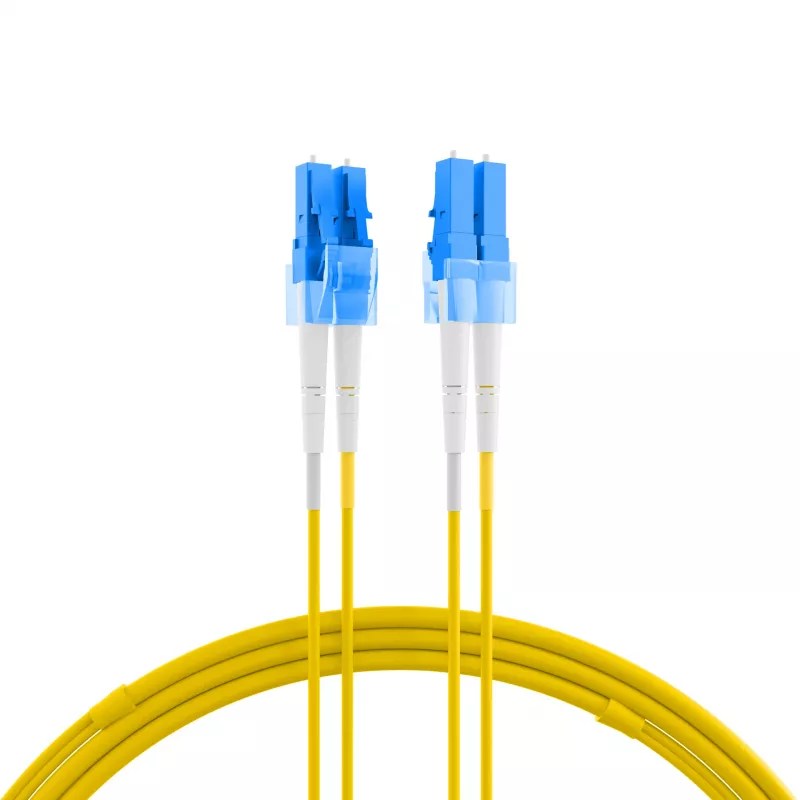

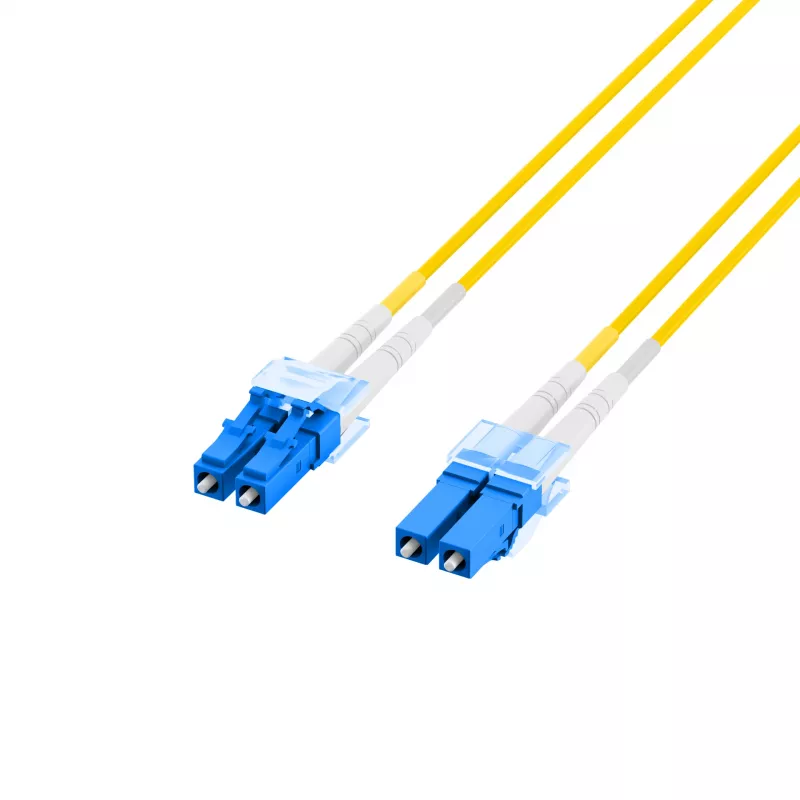

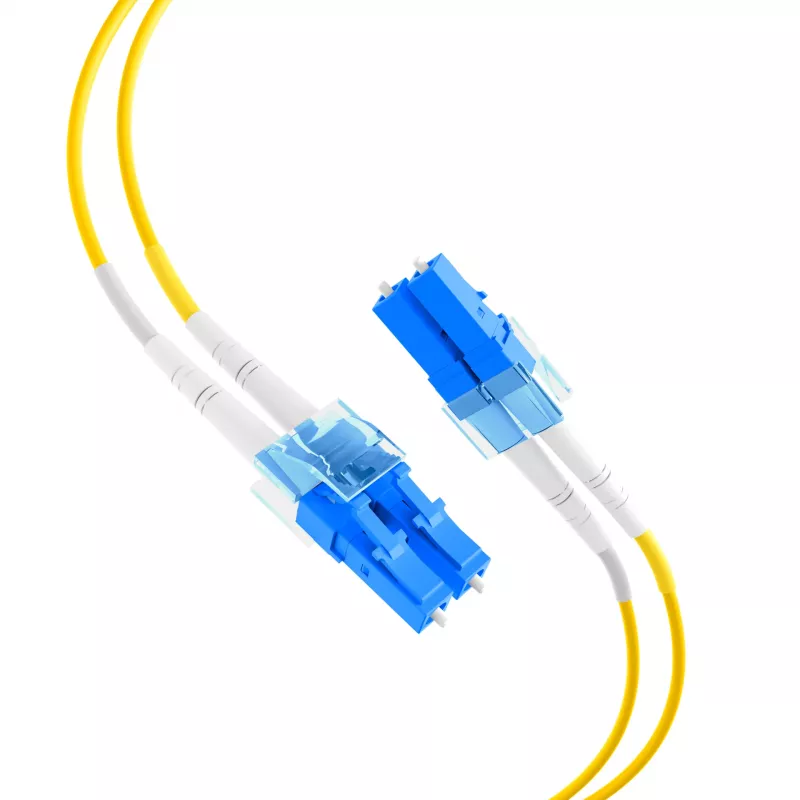

EFB Elektronik IPL-DR-LCULCU-2-0050 Cable de fibra óptica, OS2, LC/UPC a LC/UPC, 0,5 m, Amarillo

The EFB Elektronik IPL-DR-LCULCU-2-0050 is a high-quality fiber optic patch cable designed for reliable single-mode connections in data centers, telecommunications, and enterprise networks. With a length of 0.5 meters and duplex LC/UPC connectors, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with a maximum insertion loss of ≤0.3 dB and a minimum return loss of ≥50 dB. The halogen-free, flame-retardant jacket provides safety and durability, while the yellow color ensures easy identification. The zirconia ceramic ferrule guarantees stable connections over time.

Suitable for

• Data center patching
• Telecommunications infrastructure
• Fiber-to-the-desk (FTTD) applications
• Local area networks (LAN)
• Test and measurement equipment

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Connector Type A: LC/UPC
• Connector Type B: LC/UPC
• Cable Length: 0.5 m
• Number of Fibers: 2 (Duplex)
• Cable Construction Code: I-V(ZN) H
• Jacket Material: Halogen-Free, Flame-Retardant
• Jacket Color: Yellow
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Insertion Loss (Max.): ≤ 0.3 dB
• Return Loss (Min.): ≥ 50 dB
• Ferrule Material: Zirconia Ceramic
• Polarity: A-B (Crossed)
• Operating Temperature Range: -20°C to 70°C
• Storage Temperature Range: -40°C to 85°C
• Compliance: RoHS, REACH
• Minimum Bend Radius: 30 mm

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is ideal for short-distance connections within racks or between patch panels. Pair with EFB Elektronik patch panels and adapters for a complete solution.
