EFB-Elektronik Latiguillo dúplex LC/APC-SC 9/125µm OS2 LSZH Yellow 2,0mm 7,5m

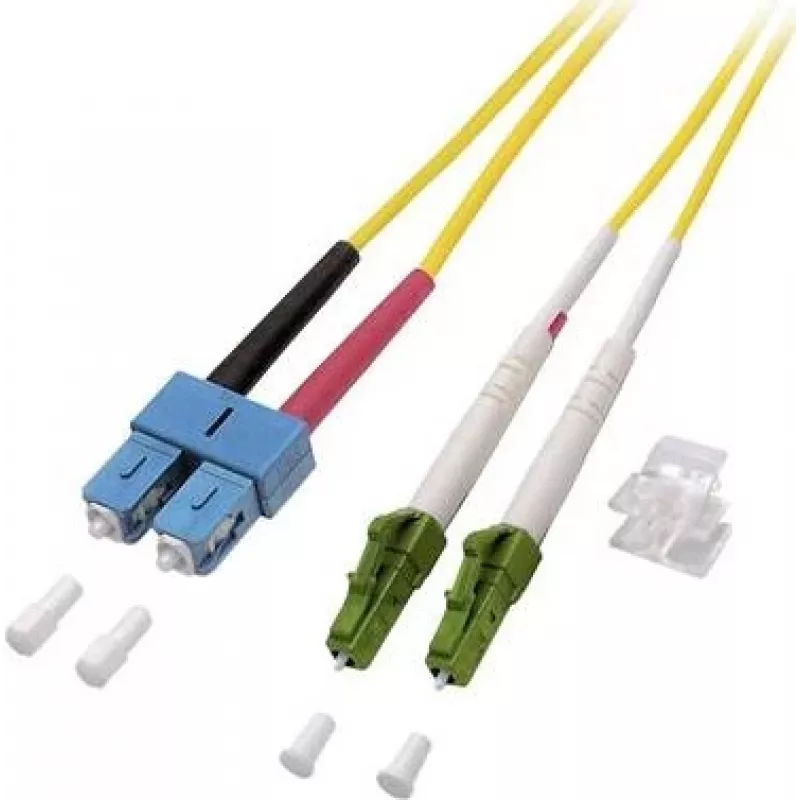

The EFB-Elektronik Duplex Jumper LC/APC-SC is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 7.5 meters, it features LC/APC connectors on one end and SC connectors on the other, ensuring low insertion loss and high return loss for optimal performance. The cable is constructed with a 9/125µm core/cladding, OS2 single-mode fiber, and a durable LSZH (Low Smoke Zero Halogen) jacket in yellow, making it suitable for use in areas where fire safety is a priority.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and high return loss (≥60 dB for LC/APC, ≥45 dB for SC/PC). The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, enhancing safety in confined spaces. The duplex design allows for simultaneous bidirectional communication, and the 2.0mm diameter provides flexibility while maintaining durability.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• Fiber-to-the-home (FTTH) installations
• Local area networks (LAN) requiring single-mode fiber
• Any environment where fire safety and low smoke emissions are critical

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Connector A: LC/APC
• Connector B: SC
• Connector A Polish: APC (Angled Physical Contact)
• Connector B Polish: PC (Physical Contact)
• Cable Construction: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Cable Length: 7.5 m
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical, LC/APC): ≥ 60 dB
• Return Loss (Typical, SC/PC): ≥ 45 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for high-speed data transmission over long distances. Pair with compatible single-mode transceivers for best results.
