EFB Elektronik MPOF08LCOS2-10 cable troncal MPO-PLUS/APC(F) a LC OS2 de 8 fibras, tipo B, LSZH amarillo, 10m

Single-mode OS2 trunk cable with 8 fibers, MPO-PLUS/APC female to 4x LC duplex, 10 m, LSZH yellow jacket, Type B polarity.

Overview

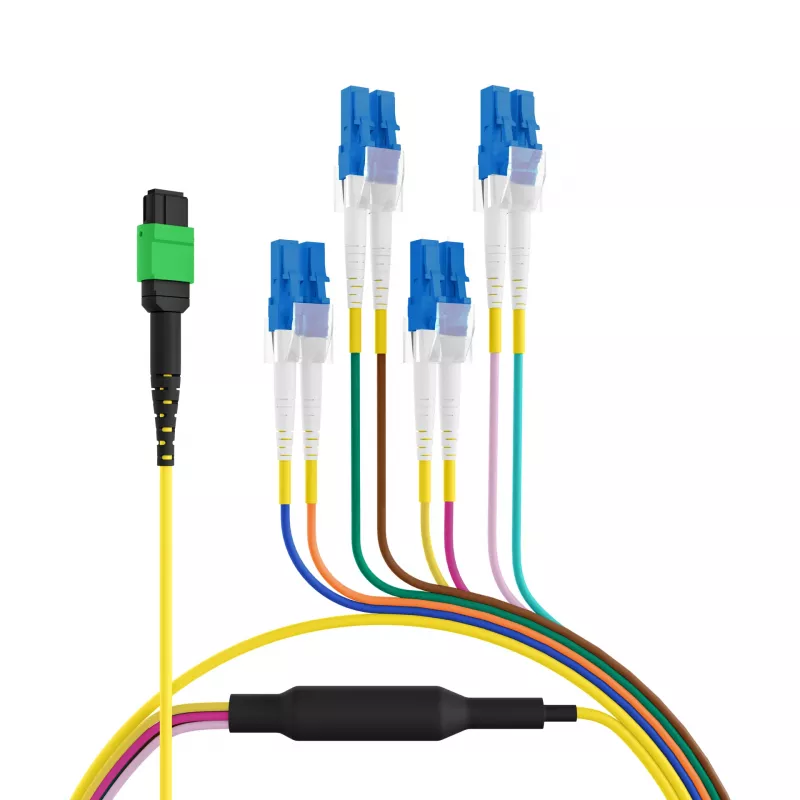

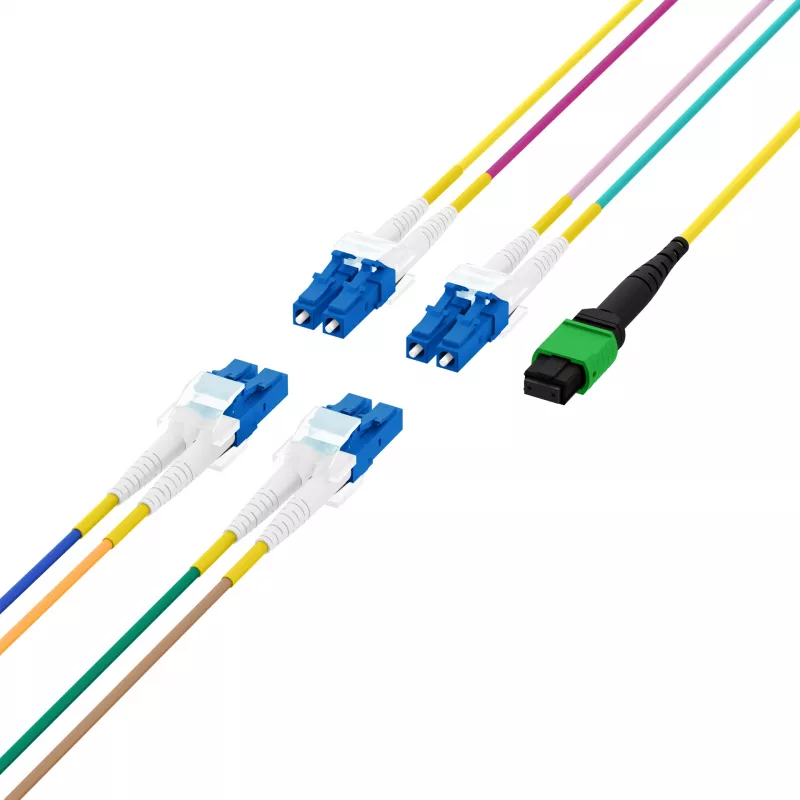

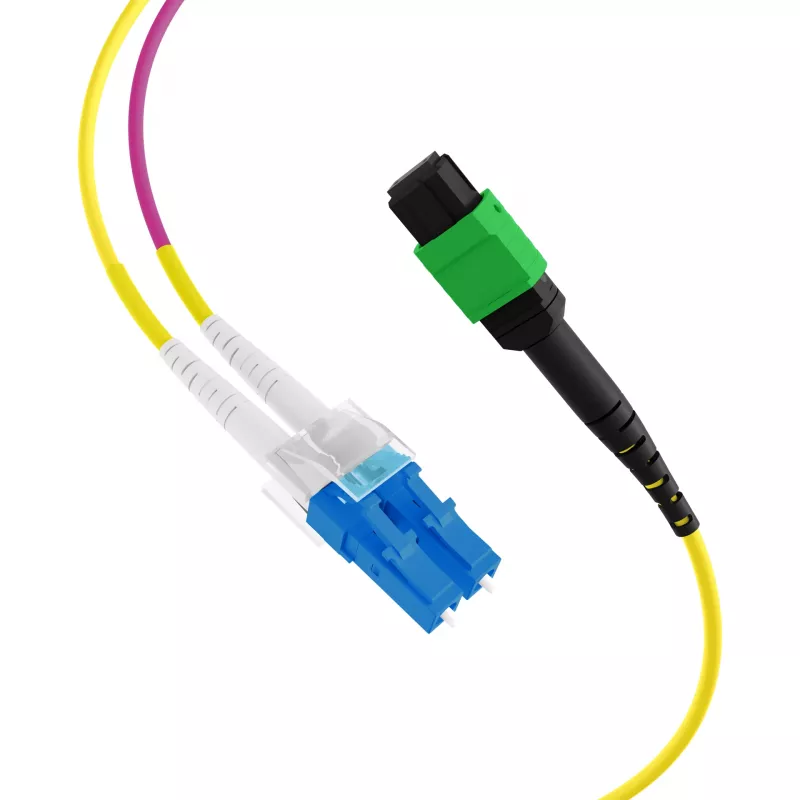

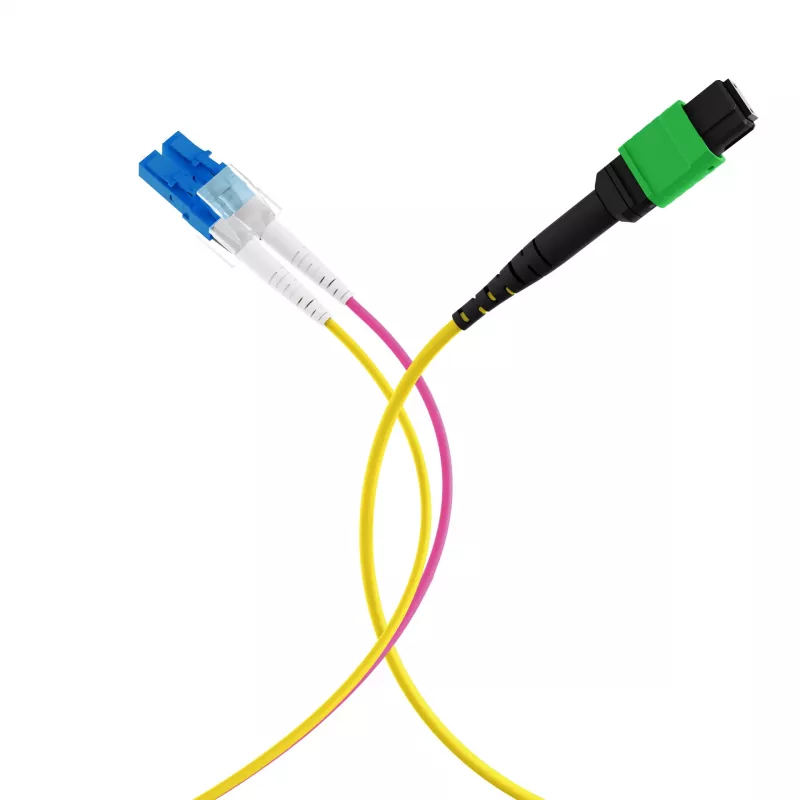

The EFB Elektronik MPOF08LCOS2-10 is a high-performance fiber optic trunk cable designed for data center interconnects and structured cabling. It features 8 single-mode OS2 fibers with a 9 µm core and 125 µm cladding, supporting wavelengths of 1310 nm and 1550 nm. The cable is terminated with an MPO-PLUS/APC female connector on one end and four LC duplex connectors on the other, providing a versatile breakout solution. The LSZH (Low Smoke Zero Halogen) yellow jacket ensures safety in enclosed spaces, and the Type B polarity ensures correct signal routing in parallel optics applications.

What stands out

• MPO-PLUS connector with APC polish for low return loss
• 8 fibers in a single trunk for high-density connections
• LSZH jacket for low smoke and zero halogen emissions
• Type B polarity for standard parallel optic configurations
• 10 m length for flexible deployment

Technical details

• Fiber type: Single-mode OS2
• Number of fibers: 8
• Connector A: MPO-PLUS, APC, female
• Connector B: 4x LC duplex
• Cable length: 10 m
• Jacket material: LSZH
• Jacket colour: Yellow
• Polarity: Type B
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Wavelengths: 1310 nm, 1550 nm
• Operating temperature: -10°C to 60°C

Our verdict

A reliable trunk cable for high-density fiber installations, offering MPO-to-LC breakout with OS2 performance and LSZH safety.
